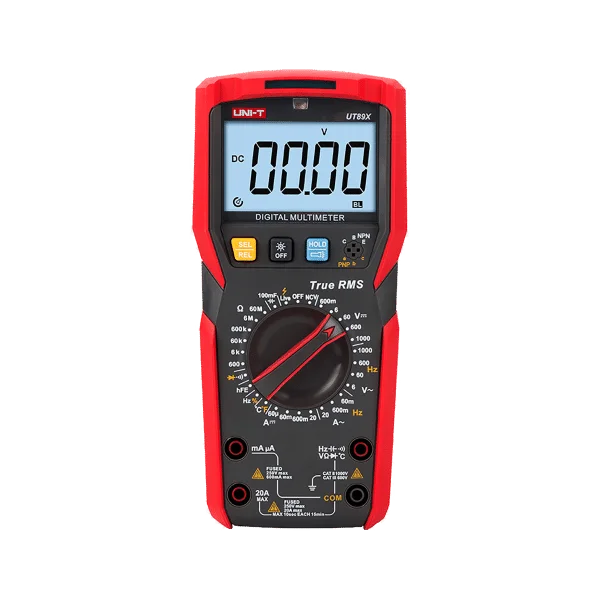

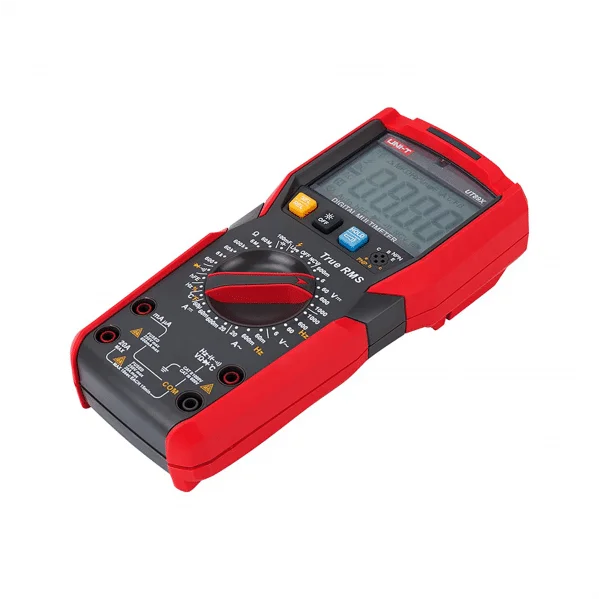

Uni-T UT89X is an advanced universal multimeter that combines precise measurements with a wide range of user functions, ideal for both professionals and electronics enthusiasts. Thanks to its versatility and accuracy, UT89X is suitable for various applications, from diagnostics to service work.
Wide measurement range

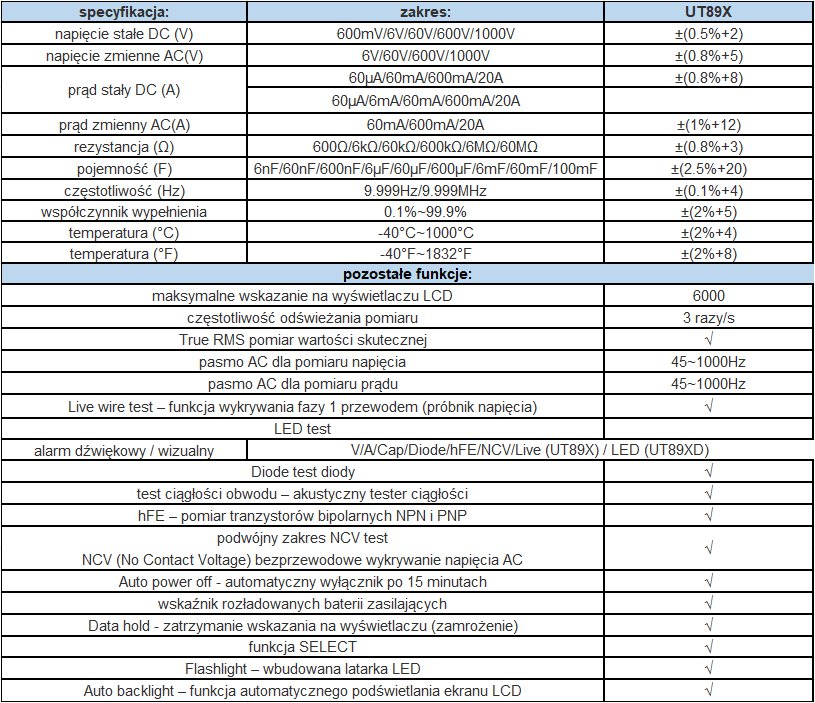

UT89X offers a wide measurement range for direct current voltage up to 1000 V and alternating current voltage also up to 1000 V, making it suitable for working with various electrical installations. The device also allows for measuring direct and alternating current up to 20 A, which is crucial for diagnosing heavily loaded circuits. The multimeter also allows for measuring resistance up to 60 MOhm and capacitance up to 100 mF, making it a versatile tool for testing and servicing electronic devices. Functions such as diode testing and continuity checking increase its utility in everyday service tasks.
Advanced additional features
UT89X is equipped with True RMS functionality, which enables precise measurements in complex alternating current circuits, eliminating errors associated with distorted signals. The multimeter also offers a relative measurement mode, allowing for real-time change analysis. Features such as freezing the last reading, recording MAX/MIN/peak values, and automatic shutdown enhance convenience and work efficiency.

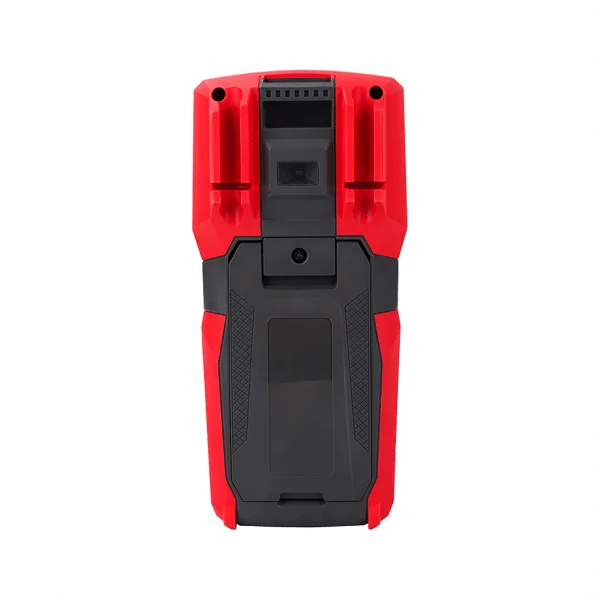

Ergonomic design and durability
UT89X features a solid construction that ensures durability and user comfort. The device measures 189 x 89 x 53 mm and weighs 345 g, making it portable and easy to carry. Powered by four AAA (R03) batteries, the multimeter provides long-lasting operation without the need for frequent battery replacements. A maximum reading of 6000 ensures high precision and readability of results.
- UT89X Multimeter

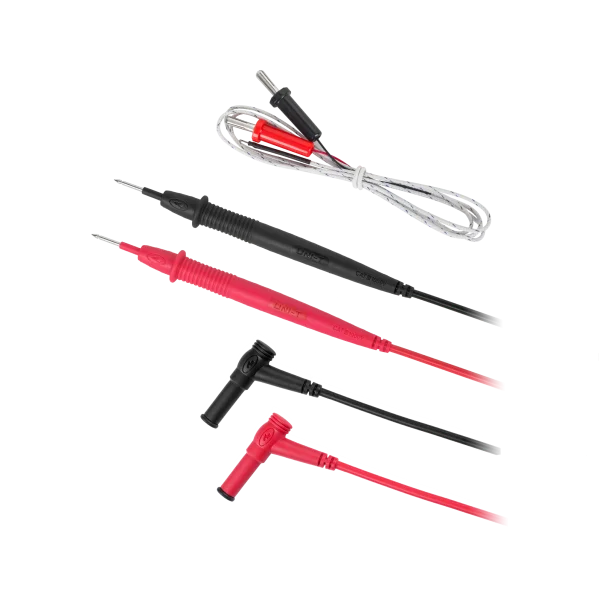

- set of measuring wires
- temperature measurement probe
- batteries 4 x 1.5V R03
- 4x AAA
- 189 x 89 x 53 mm
- 345
- UT89X Multimeter
- set of measuring wires
- temperature measurement probe
- batteries 4 x 1.5V R03
- 4x AAA
- 189 x 89 x 53 mm
- 345
