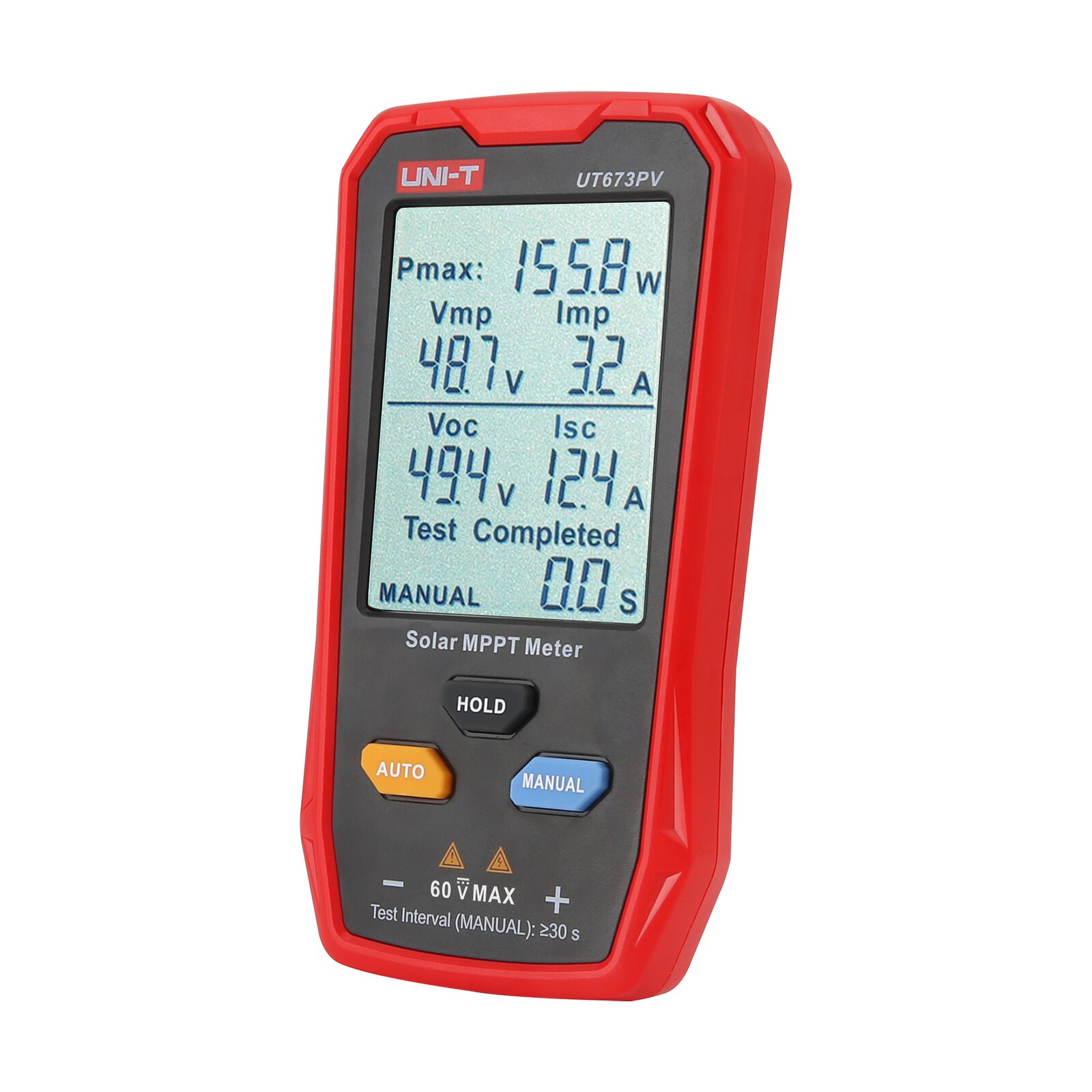

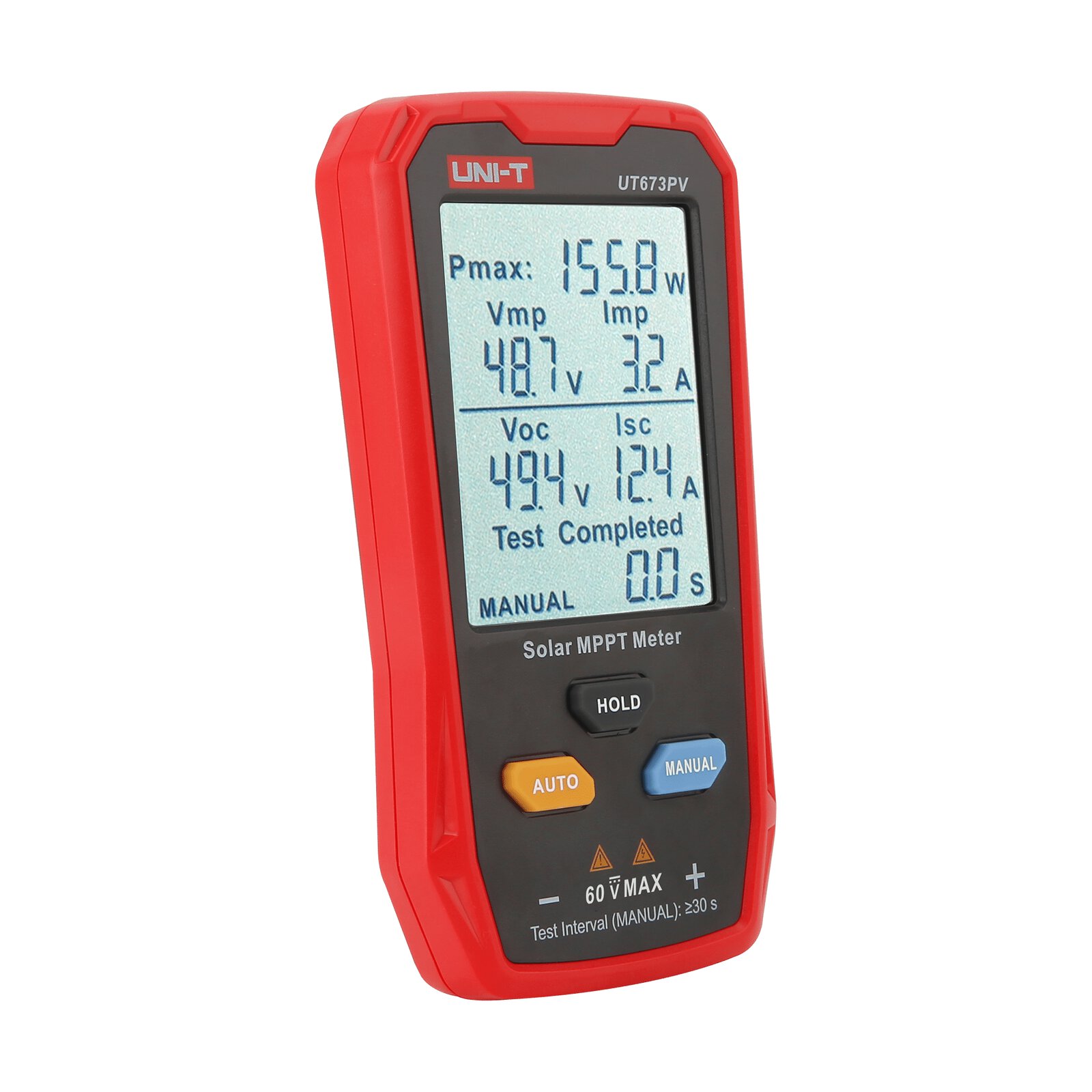

UT673PV is a specialized meter designed for photovoltaic (PV) installations. The UNI-T device enables fast and reliable measurements of key parameters of PV modules, such as maximum power, voltage at the power point, peak current, open circuit voltage or short-circuit current.
It is equipped with a large, easy-to-read display and an MC4 connector, which allows for direct connection to solar panels - making the device very practical for installers, panel manufacturers and service stations.
Importantly, the meter does not require batteries to power it, as it draws energy from the PV panel being measured, which simplifies field work.
Applications
The UT673PV is ideal for use in the following situations:
- PV installations - when starting a photovoltaic system, it is possible to verify whether individual modules reach the declared power or whether the setting (angle, orientation) is optimal.
- Service and diagnostics - allows you to detect damage to panels, reduced performance, power drops or abnormalities in voltage/current.
- Production of photovoltaic panels - with control of the output quality of the panels, verification of key parameters before shipment.
- Education and demonstrations - demonstration of panel operation, changes of orientation, shading, influence of temperature - the meter allows you to quickly read many parameters.
Key Benefits
- No batteries required - makes the device very practical in the field.
- Fast and comprehensive reading - all the most important values (power, voltage, current) displayed at the same time.
- Portable, lightweight design - convenient for mobile work.
- MC4 Safe Connection - PV Panel Compatibility, Easy to Connect.
- A wide measuring range - for PV modules 12-60 V, power 5-800 W - covers most applications in smaller installations.
- Extensive security - which increases durability and safety of work.
Parameters:
- Maximum power measurement range (Pmax): 5 - 800 W
- Voltage Measurement Range (Vmp): 12 - 60 V DC
- Current Measurement Range (Imp): 0 - 35 A DC
- Open Circuit Voltage (Voc) Range: 12 - 60 V DC
- Short-circuit current range (Isc): 0 - 35 A
- Display: LCD 52 × 66 mm
- Power supply: no battery - direct power supply from PV panel
If you work with photovoltaic installations, you are an installer, service technician or panel manufacturer and you need a practical, mobile tool for measuring the parameters of PV panels - UT673PV this is a very sensible choice. With it, you get the ability to quickly verify the performance of modules, identify problems and optimize the installation setup.
- Miernik UT673PV
- kabel pomiarowy z wtykami MC4
- klucze/otwieracze (2 ×) do wtyków MC4
- Etui
- zasilany bezpośrednio z panelu
- 143 × 74 × 25 mm
- 250
- Miernik UT673PV
- kabel pomiarowy z wtykami MC4
- klucze/otwieracze (2 ×) do wtyków MC4
- Etui
- zasilany bezpośrednio z panelu
- 143 × 74 × 25 mm
- 250
