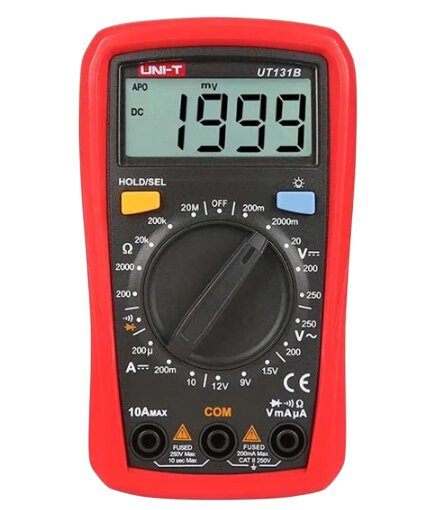

UNI-T UT131B – Advanced digital multimeter with AC/DC measurement and battery testing function
UNI-T UT131B is a multifunctional digital multimeter that is an extension of the UT131A model. With additional features such as AC current measurement and battery testing, UT131B is an excellent choice for those needing a broader range of functions for home, workshop, or educational use.
Clear display, compact form, easy operation
Equipped with a clear LCD display with a resolution of 2000 count, UT131B allows for quick and precise reading of results. The compact and sturdy housing with an ergonomic handle enables comfortable work in any conditions – even in the field.
User safety and durability
UT131B is equipped with internal fuses that protect the device from the effects of overload. The housing made of durable ABS material and CAT II 250 V safety category provide a high level of protection when working with low voltage installations.
Technical specifications (detailed):
DC Voltage: 200 mV – 600 V
AC Voltage: 200 V – 600 V
DC Current: up to 10 A
AC Current: up to 10 A
Resistance: up to 20 MΩ
Diode Test: YES
Continuity Test: YES – with audible signal
Battery Test: YES – 1.5 V / 9 V
Display Resolution: 2000 count
Data Hold Function: YES
Display Backlight: NO
Power Supply: 2 × AAA battery (1.5 V)
Auto Power Off: YES
Fuses: 250 V/0.5 A and 250 V/10 A
Dimensions: 130 × 73.5 × 35 mm
Weight: approx. 130 g
Housing: ABS, impact resistant
Safety Category: CAT II 250 V
Standards: CE, RoHS
