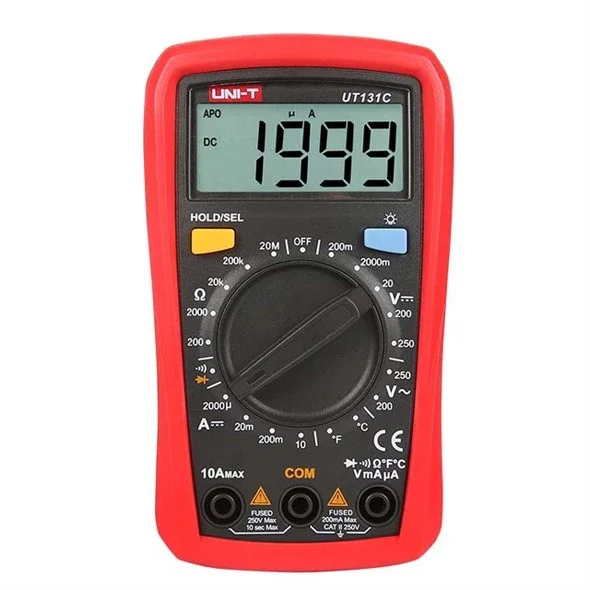

UNI-T UT131C – Versatile multimeter with backlight, battery test, and AC/DC measurement
UNI-T UT131C is the most advanced model in the UT131 series, designed with users in mind who expect full functionality in a compact device. Compared to the UT131A and UT131B models, the UT131C stands out with additional features, such as screen backlight, frequency and capacitance measurement, and more precise diagnostics of installations and electronic devices.
User comfort – with backlight and HOLD function
The multimeter is equipped with a backlit LCD screen, which significantly facilitates work in poorly lit environments, e.g., during installations or in electrical boxes. The Data Hold function allows you to freeze the current measurement result on the screen, which is very useful in hard-to-reach places.
Safety, durability, and automatic energy saving
UT131C features internal fuses that protect the user and the device from overload. The housing made of durable ABS plastic is robust, and the ergonomic shape enhances work comfort. Additionally, the automatic shut-off function helps save battery when the multimeter is not in use.
Technical specifications (detailed):
DC Voltage: 200 mV – 600 V
AC Voltage: 200 V – 600 V
DC Current: up to 10 A
AC Current: up to 10 A
Resistance: up to 20 MΩ
Capacitance: up to 200 μF
Frequency: up to 10 MHz
Diode Test: YES
Continuity Test: YES – with buzzer
Battery Test: YES – 1.5 V and 9 V
Display: LCD 2000 count with backlight
Data Hold Function: YES
Power Supply: 2 × AAA 1.5 V battery
Automatic Shut-off: YES
Fuses: 250 V/0.5 A and 250 V/10 A
Housing: ABS, compact and ergonomic
Dimensions: 130 × 73.5 × 35 mm
Weight: approx. 130 g
Safety Category: CAT II 250 V
Standards: CE, RoHS
- Miernik UT131C
- baterie 2 x 1.5V AAA
- 2 x AAA
- 130 × 73,5 × 35 mm
- 130
- Miernik UT131C
- baterie 2 x 1.5V AAA
- 2 x AAA
- 130 × 73,5 × 35 mm
- 130
