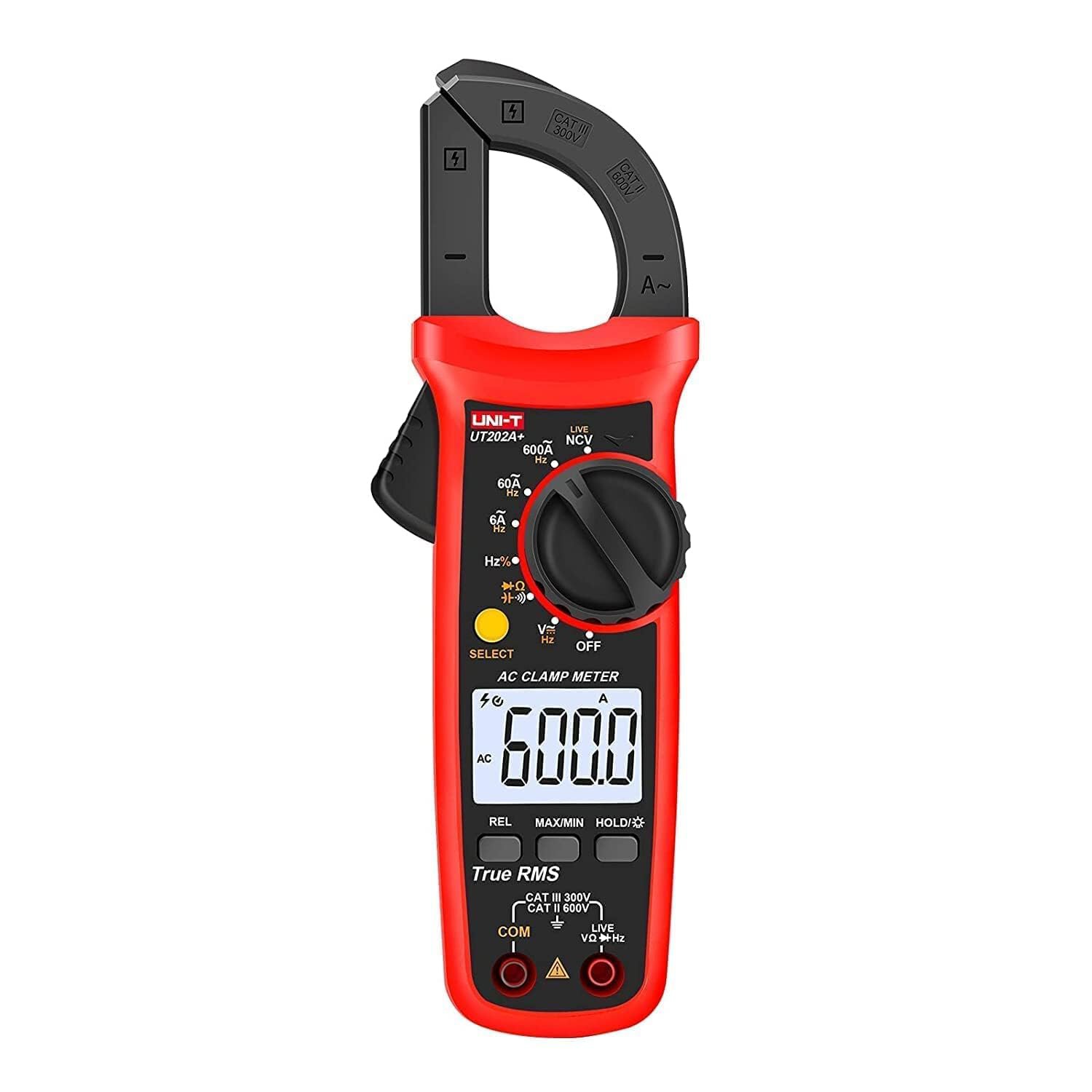

The Uni-T UT202A+ is a universal clamp meter with True RMS function, designed for accurate measurements of AC current up to 600 A. The device offers a wide range of measurement functions and a high level of safety, making it suitable for both service and installation work.
Key features:
- AC current measurement with clamps: up to 600 A
- AC/DC voltage measurement: up to 600 V
- True RMS – accurate measurements in real conditions
- Measurement of resistance, capacitance and frequency
- Continuity test (with buzzer) and diode test
- Non-Contact Voltage Detection (NCV)
- MIN/MAX display, HOLD function, relative measurement (REL)
- 6000 count backlit LCD screen
- Automatic change of measuring ranges

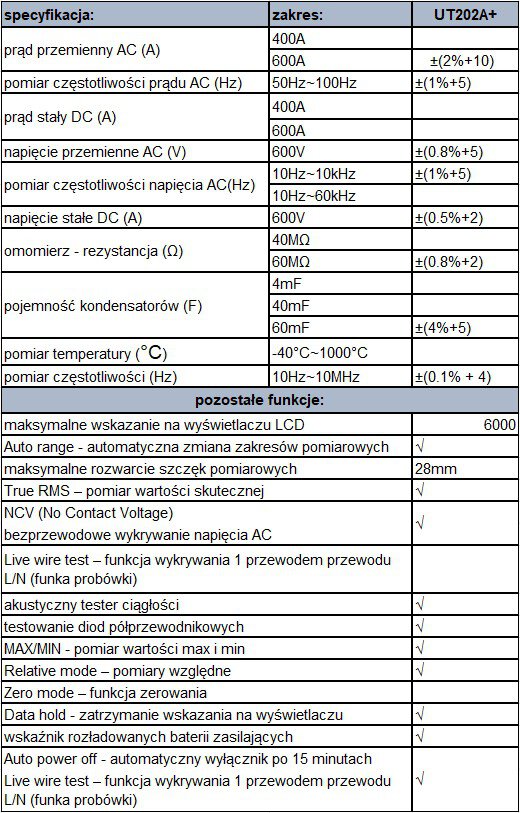

Specifications:
- AC Current: 0 to 600 A (accuracy: +/-(2% + 10 digits))
- AC Voltage: 0-600V (+/-(0.8% + 5 digits))
- DC Voltage: 0-600 V (+/-(0.5% + 2 digits))
- Resistance: up to 60 MΩ
- Capacitance: up to 60 mF
- Frequency: 10 Hz – 10 kHz
- NCV detection and phase conductor detection
- Display: LCD, 6000 dots, 37 × 25 mm
- Power supply: 2 × AAA (included)
- Clamp hole diameter: 28 mm
- Dimensions: 215 × 63 × 36 mm
- Weight: 248 g (with batteries)
Product features UT202A+ UNI-T Clamp Meter

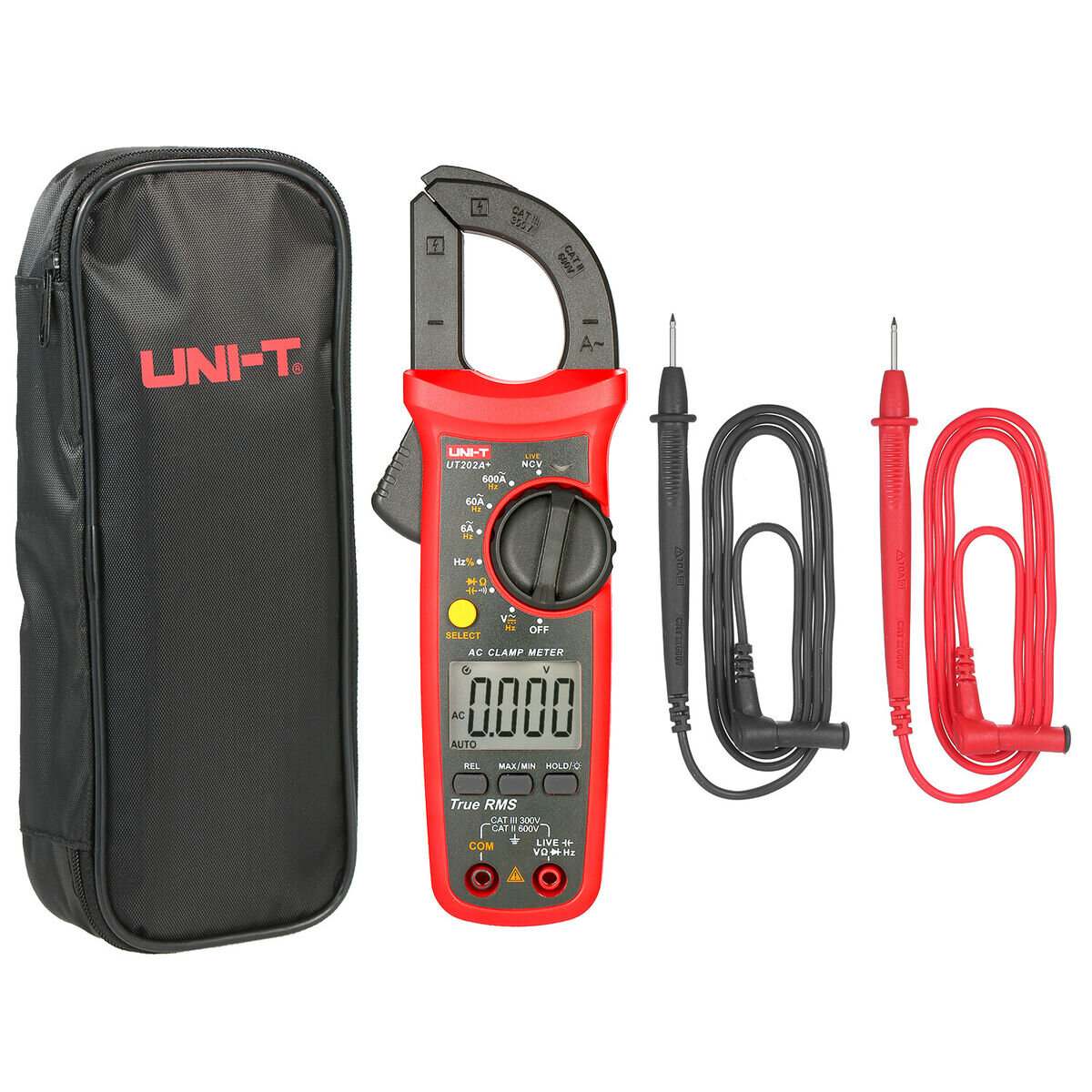

The set includes
- Multimetr UT202A+
- Przewody pomiarowe
- Baterie AAA ×2
- Pokrowiec ochronny
Power
- 2x AAA
Dimensions [mm]
- 215 × 63 × 36 mm
Scales [g]
- 248(z bateriami)
Warranty [miesiące]
24
Product features UT202A+ UNI-T Clamp Meter
The set includes
- Multimetr UT202A+
- Przewody pomiarowe
- Baterie AAA ×2
- Pokrowiec ochronny
Power
- 2x AAA
Dimensions [mm]
- 215 × 63 × 36 mm
Scales [g]
- 248(z bateriami)
Warranty [miesiące]
24
