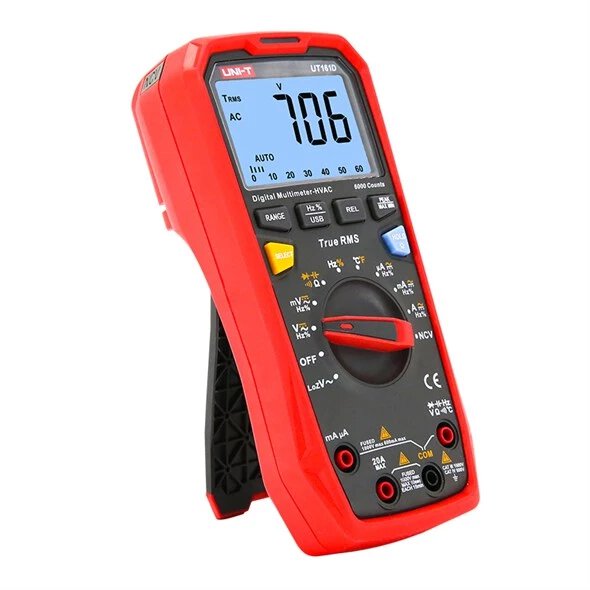

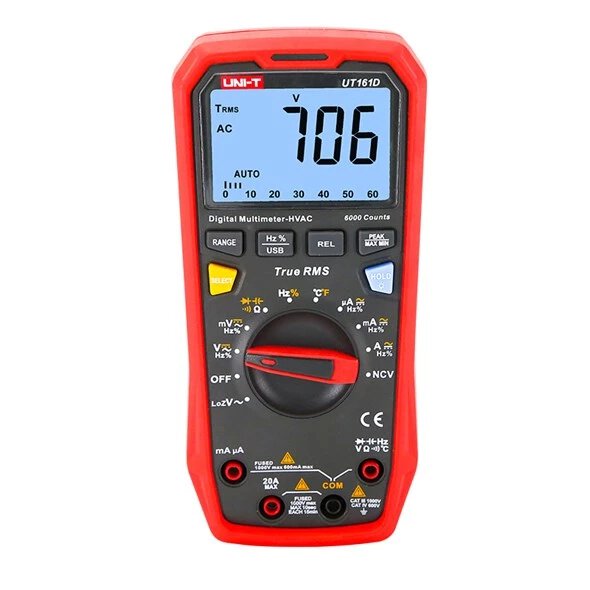

The UNI-T UT161D digital multimeter is an advanced and versatile measuring tool that will work well both in the work of a professional and in everyday service tasks or in the workshop. The device is part of the popular UT161 series, combining high measurement accuracy with a rich set of useful features and robust workmanship.
The multimeter uses True RMS technology, which means that it offers precise rms values of variable signals, including those with irregular waveforms. An easy-to-read, backlit +/- 6000 LCD display with analogue bargraph makes it easy to observe results and parameter changes in real time.
The device offers a full set of basic measurements: voltage and current measurement of DC and AC, resistance, capacitance, frequency, temperature and duty cycle. Additional features such as non-contact voltage detection (NCV), diode test, circuit continuity indication, MAX/MIN, REL, Peak/Hold and USB modes for PC connection make the UT161D a versatile tool and very practical for both plant and electronics diagnostics.
Technical parameters:
- Measurement technology: True RMS
- Display: backlit LCD +/- 6000 with analogue bargraph 31 segments
- DC Voltage Measurement: Up to 1000V
- AC voltage measurement: up to 1000 V
- DC current measurement: up to 20 A
- AC current measurement: up to 20 A
- Resistance: up to 60 MΩ / 220 MΩ
- Capacity: up to 60 mF / 220 mF
- Frequency: Up to 10MHz / 220MHz
- Temperature Measurement: -40°C to 1000°C
- NCV function: yes - non-contact voltage detection
- Additional features: MAX/MIN, REL, Peak Hold, Data Hold
- Communication: USB for data transfer to PC
- Power supply: 4× AAA battery (R03)
- Safety: CAT III 1000 V / CAT IV 600 V
- Automatic Power Off: Yes (Battery Saver)

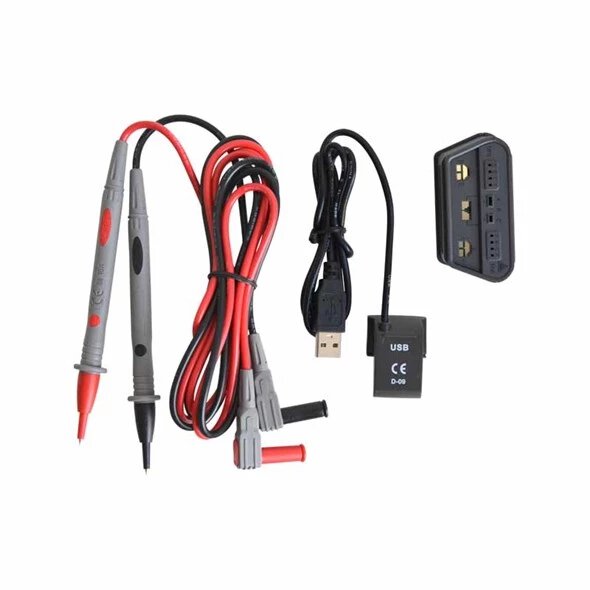

- Miernik UT161D
- Przewody pomiarowe
- Baterie
- USB cable
- Sonda temperatury
- Baterie 4x AAA
- 190mm x 90mm x 50mm
- 350
- Miernik UT161D
- Przewody pomiarowe
- Baterie
- USB cable
- Sonda temperatury
- Baterie 4x AAA
- 190mm x 90mm x 50mm
- 350
