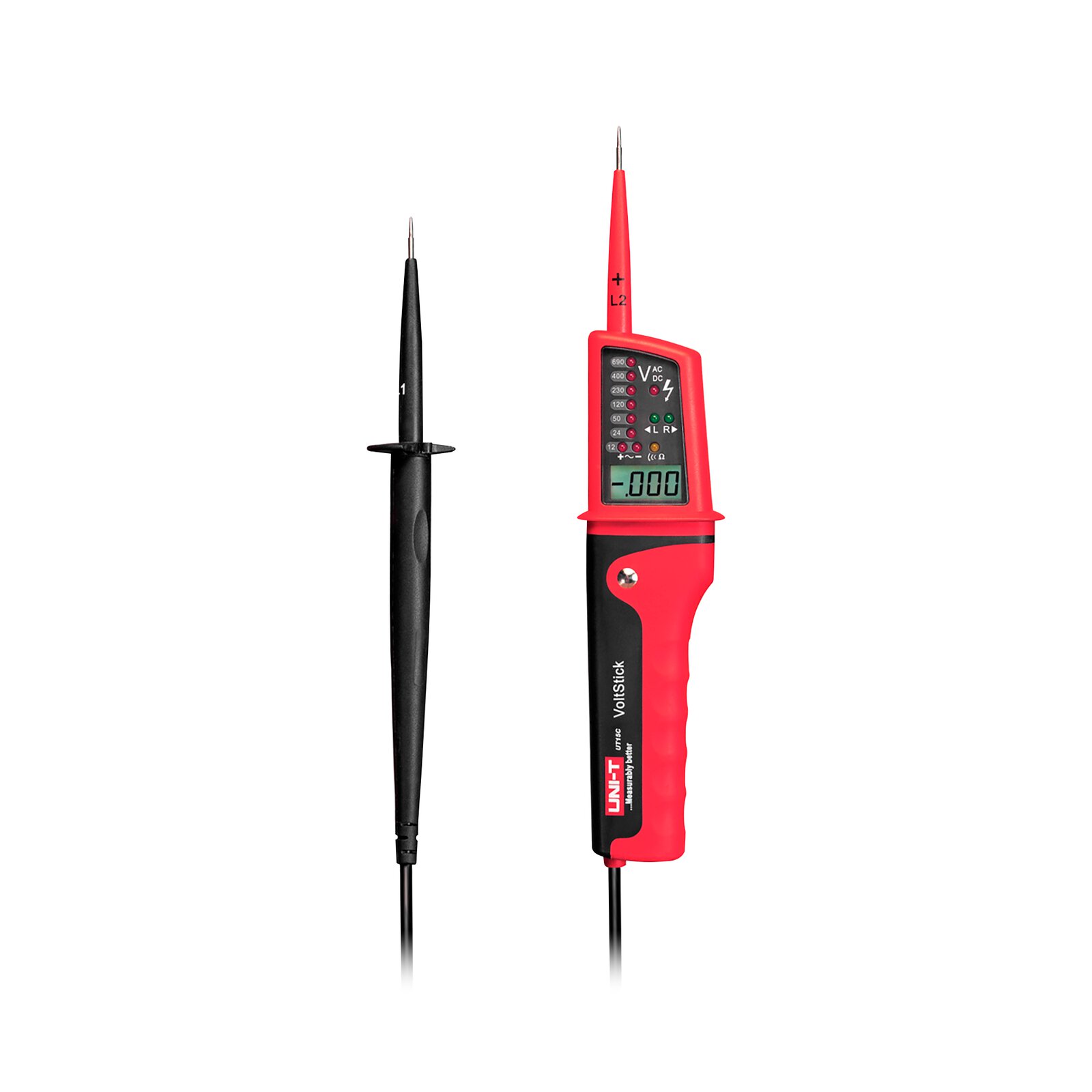

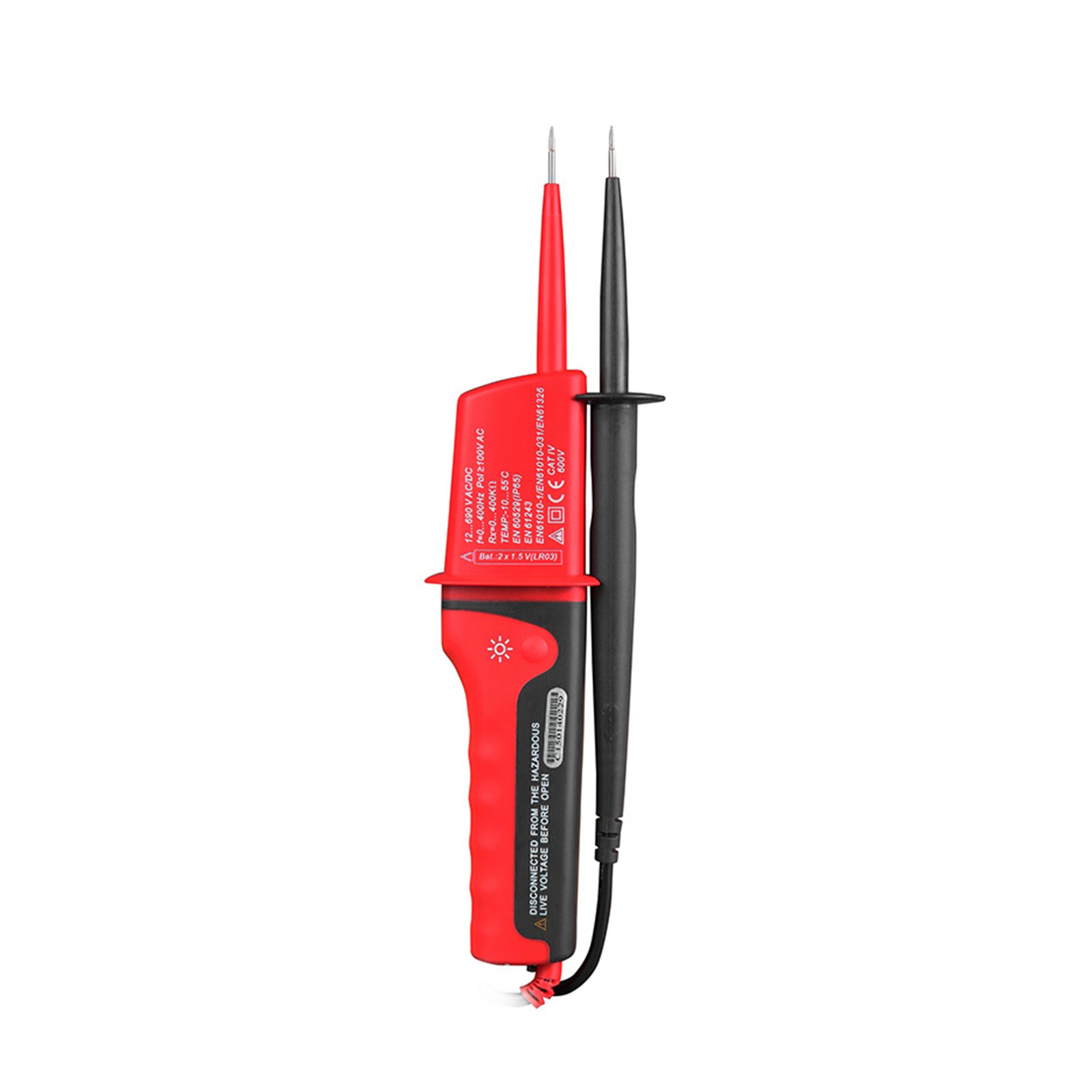

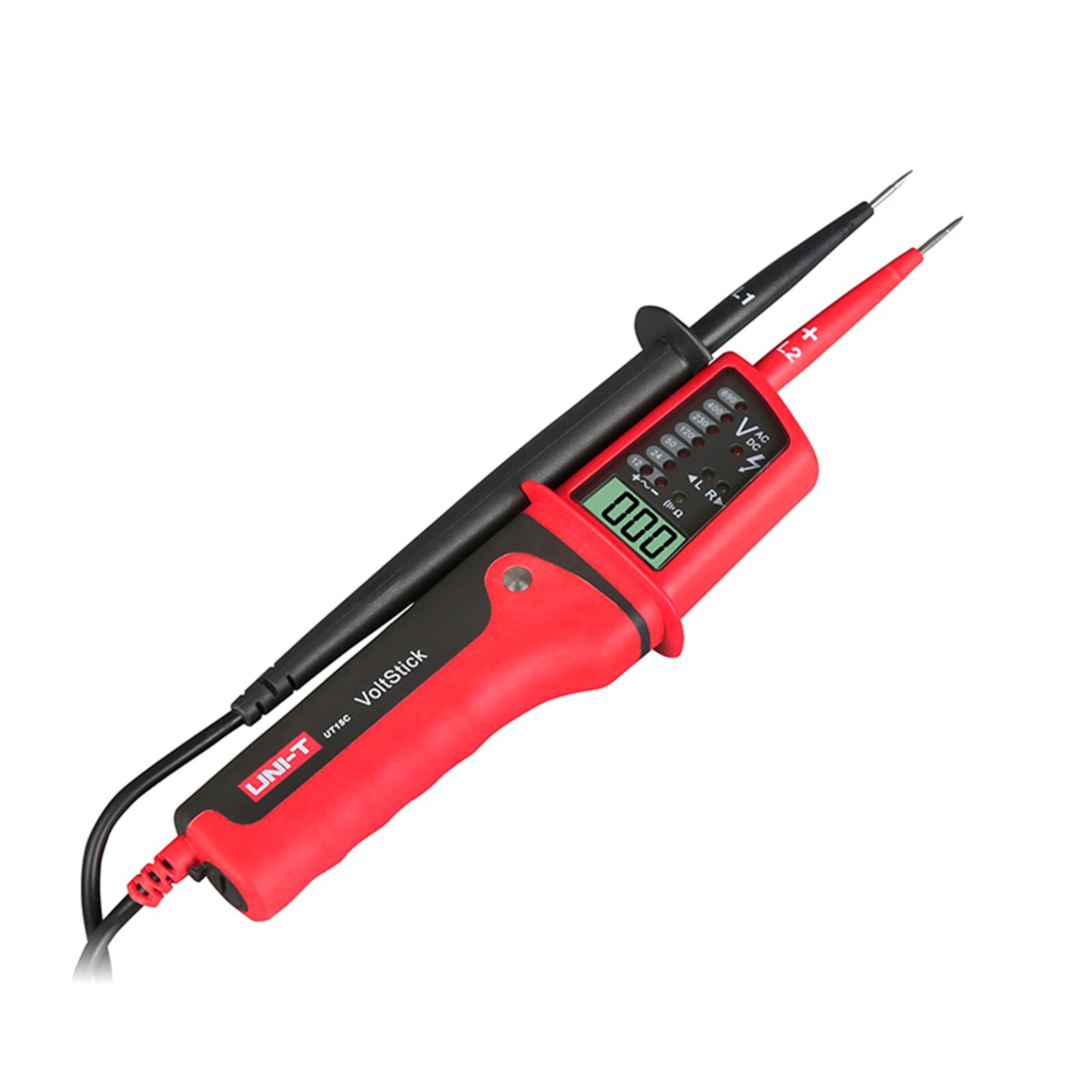

UT15C UNI-T Voltage Indicator

The UNI-T UT15C meter tester is a compact and multifunctional voltage measuring instrument. It operates in the range of 12-690V AC/DC, automatically adjusting to the appropriate measurement range.

The results are clearly presented on the LCD display and additionally signaled by LEDs. The higher the voltage, the more LEDs light up on the light ruler. This enables a very fast visual readout.

Continuity tester with an audible signal informing the user about the continuous connection. For the comfort of working in darker places, the device is equipped with practical LED lighting.

The ergonomics of the device ensure a secure grip, minimizing the risk of accidental dropping. Powered by two AAA batteries (which are already included), the meter is ready to use right out of the box. It is perfect for both professionals and hobbyists.

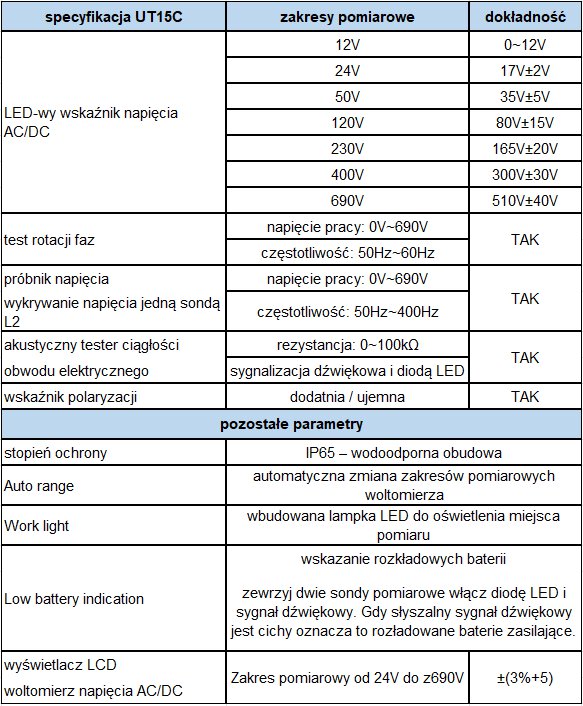

Specification of UT15C Voltage Tester

• MEASURING RANGES
  • LED indicator for AC/DC voltage measurement
    Ranges: 12V/24V/50V/120V/230V/400V/690V
    Accuracy (24 V – 690 V): +/-(3%+5)
    Phase sequence test:
    – Voltage: 100~690V
    – Frequency: 50~60Hz
  • Single Phase Voltage Detection: Voltage: 100~690V
    Frequency: 50~400Hz
  • Circuit Continuity Test:
    Resistance: 0~100kOhm
    Buzzer and LED indicator
  • Polarity detection: positive and negative
  • ADDITIONAL FEATURES
    • Automatic change of measuring ranges
    • Low battery indicator
    • Over voltage indicator
    • Auto standby mode
    • Illumination of the measurement site
    • Lcd
