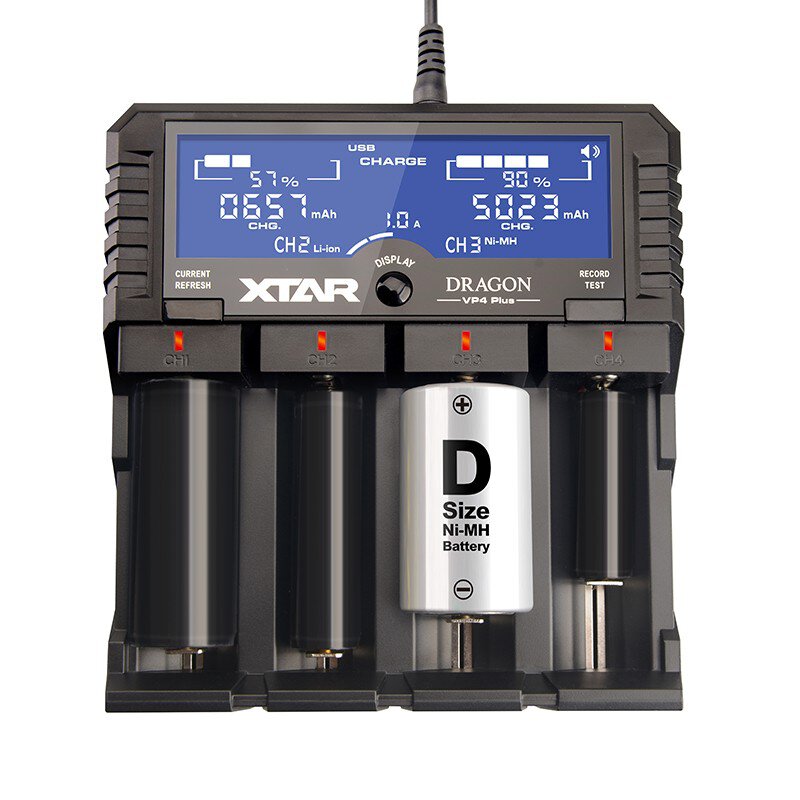

| Xtar VP4 + Dragon | Key Features: • Processor-controlled three-stage charging process TC/CC/CV • Fast-Maximum charging current 2A! • Three charging currents selectable 0, 5A/1/2A • LCD Display • Reactivation function of deeply discharged cells • Protection: Short-circuit, thermal, reverse polarity |
Xtar is a renowned manufacturer of high quality Li-ion battery chargers and flashlights. Xtar products are sold in more than 120 countries, including mines IN the USA, Germany, Japan and Russia. For the production of Chargers Xtar uses the highest quality materials-from the plastic casing to the efficient electronics. All Xtar Chargers HAVE CE certification required on European markets.
HIGH COMPATIBILITY
Compatible with most popular battery sizes.
• 3.6 V/3.7 V Li-ion/IMR/INR/ICR:
10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650, 32650
• Ni-MH/Ni-CD Rechargeable batteries:
AAAA/AAA/AA/A/SC/C/D
Packages
11.1 V/3S Package
IDEAL FOR PACKAGES
It will charge your 11.1 V package equally and fully.
The Dragon loader has a 11.1 V/3s balancer port that allows you to charge 3s with a current of 1A. Thanks to the balancerowi, we are confident that every link in the package will be charged equally.
ADJUSTABLE CHARGING CURRENT
Selectable 3 Charging Currents: 0.5 A/1A/2A.
By adjusting the charging current, we can extend the life of the cells. You can charge 4 32650 cells/D simultaneously.
CH1 & CH4:0.5 A/1A/2A
CH2 & CH3:0.5 A/1A
TEST MODE: Charging-discharge-charging
Accurate test of the real capacity (highest discharge value) of the battery.
With the test mode, you will find out if the capacity of your battery matches the description and in what condition the cell is.
SMART METERING
Personal Battery Doctor
• The Dragon charger can accurately measure the voltage and internal resistance of the battery, just like a multimeter.
• If you are using rechargeable batteries, it is best to match the cells with similar resistance.
BUILT-IN MEMORY
Check and compare measurement results at any time.
• With built-in memory, the Dragon loader automatically saves the results after discharge and charging in TEST mode.
• Memory allows you to save up to 64 results, which you can check at any time.
USB OUTPUT
Charge your phone and other portable devices with the right current.
• The Dragon charger allows you to charge your devices via A 5V/2.4 A USB Port-The high charging current will withstand the most current devices.
• The batteries in the charger can be used as a power source for the USB (Power Bank) socket.
POWER MANAGEMENT
Batteries, packages and devices connected to USB are loaded in parallel.
• If the charger is plugged into a power supply, all batteries and devices connected to the charger are charged simultaneously.
• If the charger is not connected to the power supply, the charger uses the cells installed in the chambers by going into power bank mode.
HIGH-QUALITY LCD DISPLAY
The LCD display shows all relevant information.
• Charging current
• Battery and Packet Status
• Charge status Percentage
• Battery type and channel
• Battery voltage
• Battery Resistance
• Selected charging/test/refresh Mode
• 3s balancer Status/USB outputs
• Audible alarm Status
SOUND NOTIFICATION FUNCTION
Sound signalling.
• Signals reverse polarity and process termination.
• Audio notification can be turned on/off with double click.
Leds
The three-color LEDs indicate the battery status.
• Red LED: cell recognition/activation/charging.
• Blue LED: Discharge/test Mode/refresh/USB output.
• Green LED: Standby/charging completed/reverse polarization.
| Product data | |
| Manufacturer | Xtar |
| Charger Model | VP4 + Dragon |
1-4 Rechargeable Ni-MH Batteries
Input current
1000mA
2000mA-only when charging 1-2 rechargeable batteries
Loading
1000mA-< 80mA
2000mA-< 120mA
Reactivation of deeply discharged 0V cells and cells,
Voltage and charging current can be changed while the charger is running
Short Circuit
Before the battery is reversed
Mains adapter with EU plug,
Car Cigarette Lighter Cable
Produkt posiada oznaczenie CE.
- Akumulatory Li-ion 3,6-3,7V, niezabezpieczone
- Akumulatory Li-ion 3,6-3,7V, zabezpieczone (z PCM/PCB)
- Akumulatory Ni-MH
- Akumulatory Ni-CD
- 12 V(3A)
- Sterowana procesorowo TC/CC/CV dla Li-ion
- Sterowana procesorowo CC z -ΔV/0ΔV/PVD dla Ni-MH
- 500 / 1000 / 2000 mA(2000 mA tylko przy ładowaniu 1-2 akumulatorów)
- Li-ion 3,6-3,7V : 4,2V ±0,05V
- Wyświetlacz LCD
- Reaktywacja głęboko rozładowanych ogniw i ogniw 0V,
- Możliwość zmiany napięcia i prądu ładowania podczas pracy ładowarki
- Przed przegrzaniem ładowarki
- Przed odwrotną polaryzacją ogniw
- Przed przeciążeniem / zwarciem
- Ładowanie (Charge)
- Prąd ładowania
- Postęp ładowania
- Napięcie akumulatorów
- Ładowarka VP4+ Dragon
- Zasilacz sieciowy z wtyczką EU
- Przewód zapalniczki samochodowej
- Akumulatory Li-ion 3,6-3,7V, niezabezpieczone
- Akumulatory Li-ion 3,6-3,7V, zabezpieczone (z PCM/PCB)
- Akumulatory Ni-MH
- Akumulatory Ni-CD
- 12 V(3A)
- Sterowana procesorowo TC/CC/CV dla Li-ion
- Sterowana procesorowo CC z -ΔV/0ΔV/PVD dla Ni-MH
- 500 / 1000 / 2000 mA(2000 mA tylko przy ładowaniu 1-2 akumulatorów)
- Li-ion 3,6-3,7V : 4,2V ±0,05V
- Wyświetlacz LCD
- Reaktywacja głęboko rozładowanych ogniw i ogniw 0V,
- Możliwość zmiany napięcia i prądu ładowania podczas pracy ładowarki
- Przed przegrzaniem ładowarki
- Przed odwrotną polaryzacją ogniw
- Przed przeciążeniem / zwarciem
- Ładowanie (Charge)
- Prąd ładowania
- Postęp ładowania
- Napięcie akumulatorów
- Ładowarka VP4+ Dragon
- Zasilacz sieciowy z wtyczką EU
- Przewód zapalniczki samochodowej
