The charger is designed to charge popular cylindrical lithium-ion batteries.
In a small, extremely compact casing, it is possible to fit a specialized chip that will safely and quickly charge most Li-ion 3.6V / 3.7V batteries, including the popular 18650 batteries (also "long" batteries with electronic protection).

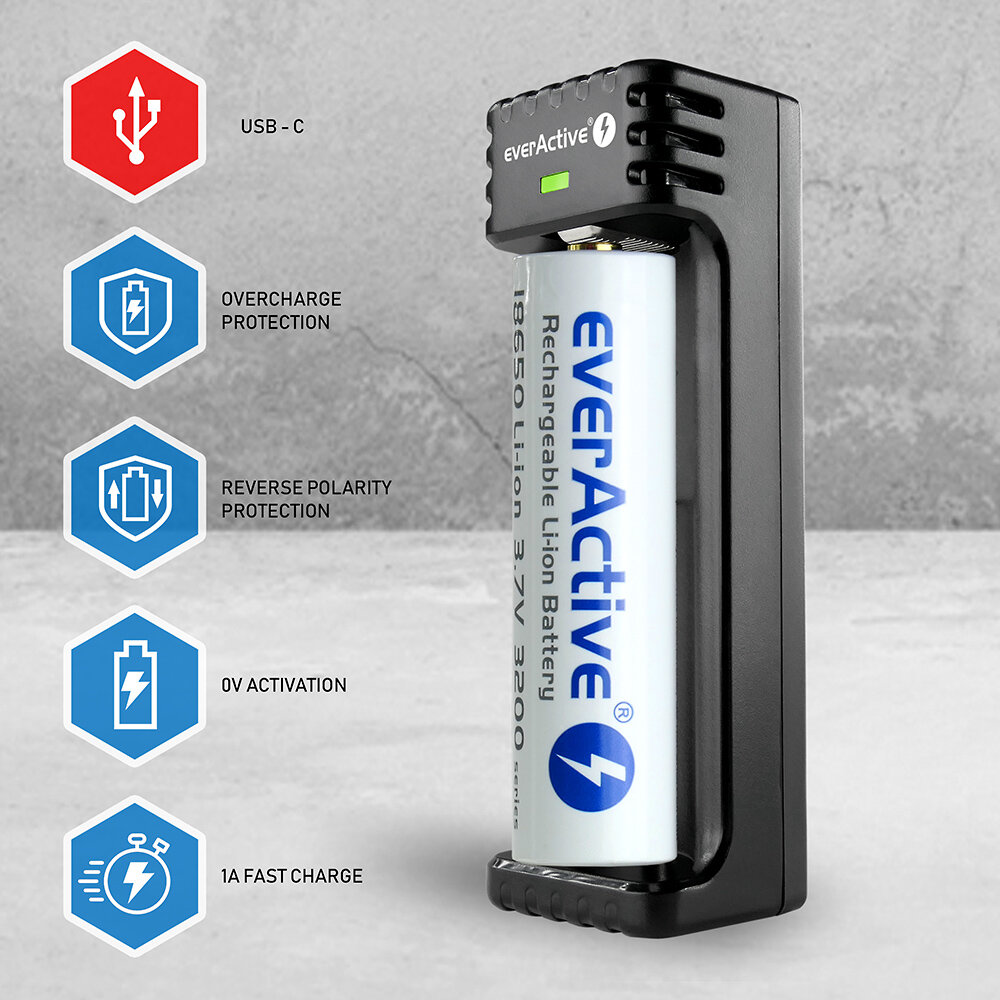

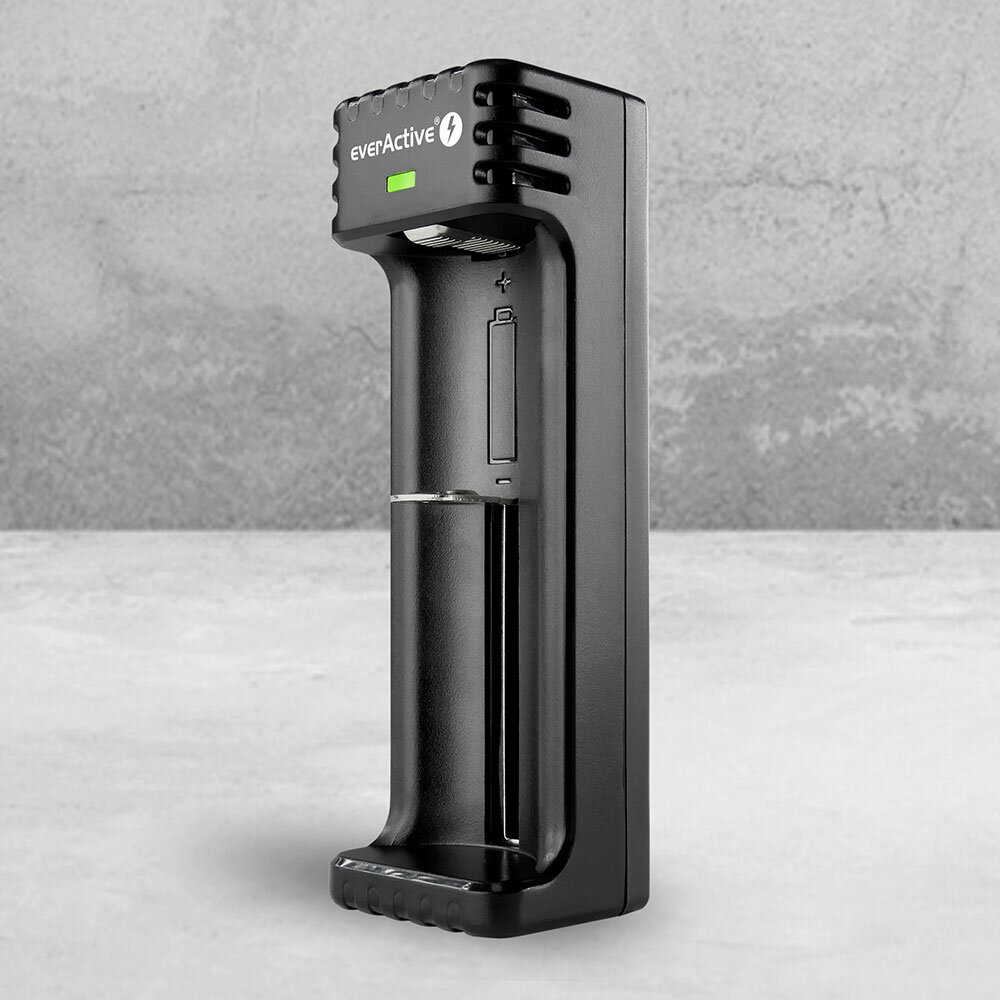

everActive LC-100C is a simple yet very reliable charger for one cell/battery. The device uses a microprocessor to control the charging process. The charger is distinguished in this segment by a relatively high maximum charging current, which is 1000 mA.
The LC-100C charger allows you to charge a typical 18650 2200 mAh cell in just 2.5 hours.
Supported batteries:
- lithium-ion Li-ion 3.6V/3.7V,
- sizes: 10440, 14500, 14650, 17500, 17670, 18350, 18500, 18650, 20700, 21700 - unsecured only, 22650, 25500, 26500, 26650, 16340 R-CR123e and others with a length of 28-72 mm and a diameter of up to 26 mm.
We invite you to familiarize yourself with the presentation of the everActive LC-100C charger
The everActive LC-100C charger can be powered from any USB power supply, as well as a mobile phone charger with a USB-C plug.
The charger works perfectly with everActive SC-100, SC-200, SC-300 and higher USB power supplies.
The charger has an advanced, dedicated controller (microprocessor) that controls the charging process.
Product highlights:
- charging current up to 1A /cell,
- resuscitation of deeply discharged batteries <2.9V - all batteries below this voltage are charged with a minimum current (approx. 120 mA) until a safe voltage is reached,
- advanced charging algorithm: TC (120 mA) -> CC (1000 mA) -> CV (.. 100 mA),
- precise termination of the charging process at 4.20V and 100 mA current, ensuring full and safe charging of the Li-ion battery,
- overcharge protection for batteries, short circuit protection, reverse polarity protection for the battery to be installed.
The set includes:
- everActive LC-100C charger packed in a factory cardboard box,
- USB-A TO USB-C Cable
- Manual.
The standard set does not include a power supply and rechargeable batteries.
- Li-ion batteries 3.6-3.7V, unprotected
- Li-ion batteries 3.6-3.7V, protected (with PCM/PCB)
- 5 V DC / 1000 mA
- Processor-controlled TC/CC/CV for Li-ion
- 1000mA ±50mA
- Li-ion: 4.2V ±0.05V
- The charger has a 2-color LED indicating the operating status of the charger
- Before the charger overheats
- Against overload / short circuit
- Before reverse polarity of cells
- Before reloading
- Charge
- Ładowarka LC100C
- kabel USB-A - USB-C
Network charger for phone / smartphone everActive SC-100B 1xUSB 1A
iQ Smart Charging technology - built-in advanced chip automatically detects the connected device and charges it with the maximum current suitable for it
high performance - fast charging - up to 1A
output: 1 x DC 5V / 1A
total power output: 5W
Input Voltage: 100-240V~50/60Hz 500mA
robust, one-piece housing
Network charger for phone / smartphone everActive SC-200B 1xUSB 2.4A
iQ Smart Charging technology - built-in advanced chip automatically detects the connected device and charges it with the maximum current suitable for it
high performance - fast charging - up to 2.4A
output: 1 x DC 5V / 2.4A
total power output: 12W
Input Voltage: 100-240V~50/60Hz 500mA
robust, one-piece housing
EverActive SC-100 1xUSB 1A AC charger
IQ Smart Charging Technology-The built-in advanced chip automatically detects the connected device and charges it with the maximum current
High Performance -fast charging-Up to 1a
Output: 1 x DC 5V/1A
Total output power: 5w
Input voltage: 100-240V ~ 50/60Hz 500mA
Sturdy, one-piece housing
AC charger everActive SC-200 1xUSB 2.4 A
High Performance -fast charging-up to 2.4 a
Output: 1 x DC 5V/2.4 A
Total output power: 12W
Input voltage: 100-240V ~ 50/60Hz 500mA
Sturdy, one-piece housing
AC charger everActive SC-300 3xUSB 3.4 A
IQ Smart Charging Technology-The built-in advanced chip automatically detects the connected device and charges it with the maximum current
High Performance -fast charging 3 devices at a time-up to 2.4 a per USB port
Output: 3 x DC 5V/2.4 A (3.4 a max.)
Total output power: 17W
Three wide-spread sockets-enable seamless connection of even thicker USB cables
- Li-ion batteries 3.6-3.7V, unprotected
- Li-ion batteries 3.6-3.7V, protected (with PCM/PCB)
- 5 V DC / 1000 mA
- Processor-controlled TC/CC/CV for Li-ion
- 1000mA ±50mA
- Li-ion: 4.2V ±0.05V
- The charger has a 2-color LED indicating the operating status of the charger
- Before the charger overheats
- Against overload / short circuit
- Before reverse polarity of cells
- Before reloading
- Charge
- Ładowarka LC100C
- kabel USB-A - USB-C
