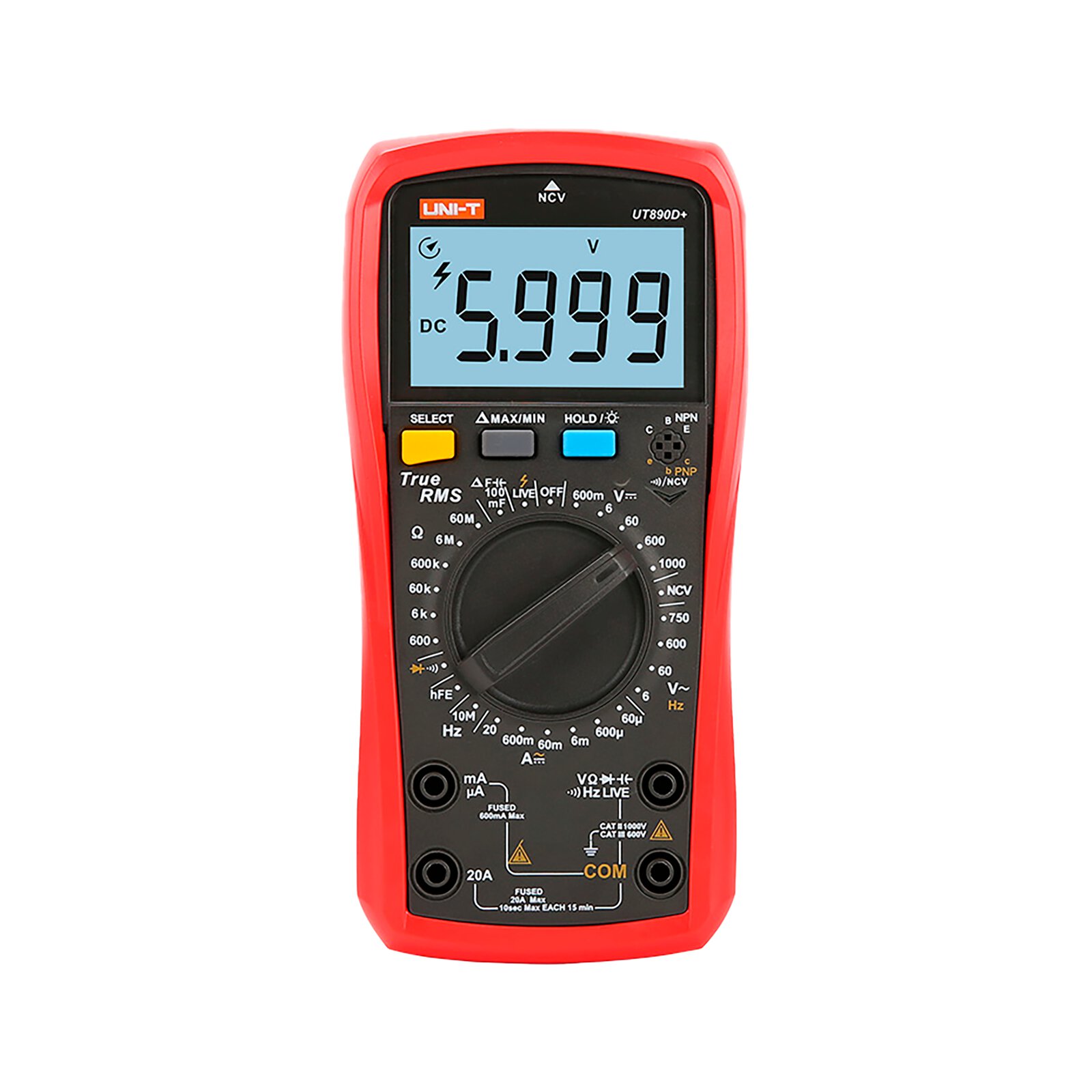

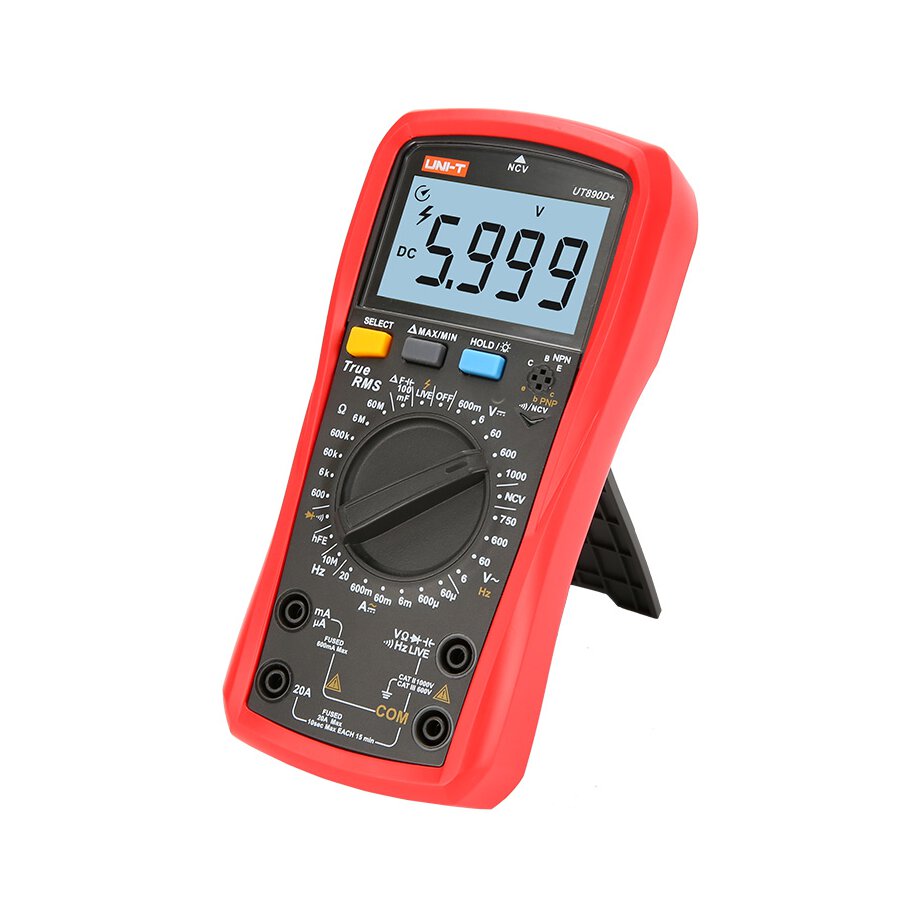

Uni-T UT890D+ Universal Meter

UT890D is a Uni-t digital universal multimeter . The offered UT890D meter allows you to perform the most frequently measured electrical parameters: DC/AC voltage measurement, DC/AC current measurement, frequency measurement, electrical circuit continuity measurement, resistance measurement, capacitor capacitance measurement.

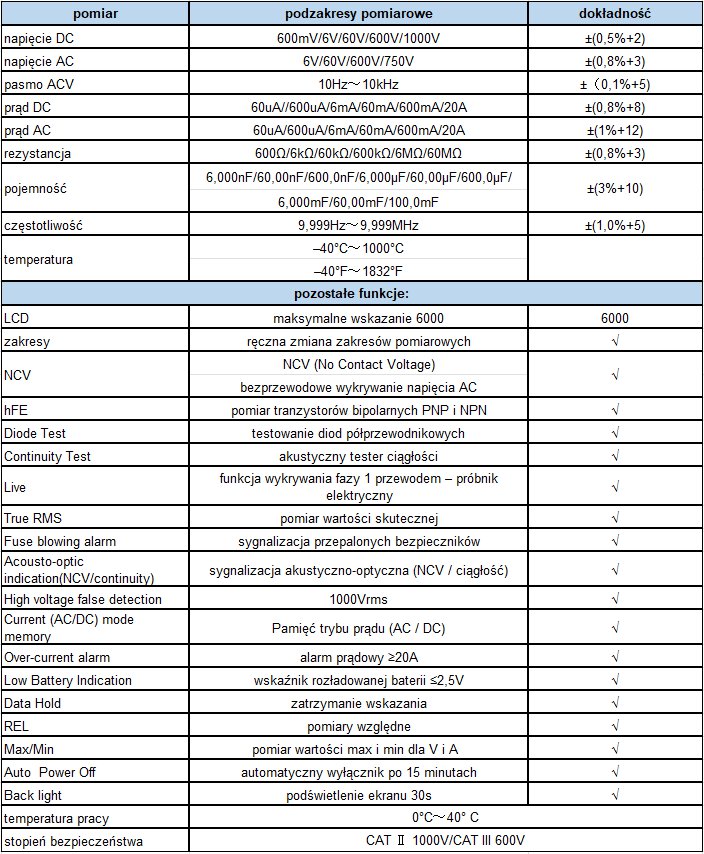

UT890D Meter Specification

• MEASUREMENT RANGES:
  • DC Voltage: 600mV / 6V / 60V / 600V / 1000V +/-(0.5%+2)
  • AC Voltage: 6V/60V/600V/750V+/-(0.8%+3)
  • DC Current: 60uA / 600uA / 6mA / 60mA / 600mA / 20A +/-(0.8%+8)
  • AC Current: 60uA / 600uA / 6mA / 60mA / 600mA / 20A +/-(1%+12)
  • Resistance: 600 Ohm / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm +/-(0.8%+3)
  • Capacitance: 6 nF / 60 nF / 600 nF / 6 uF / 60 uF / 600 uF / 6 mF / 60 mF / 100 mF +/-(3%+10)
  • ACV Frequency: 10Hz~10kHz +/-(0.1%+5)
  • Frequency: 9.999Hz~9.999MHz (1%+5)
  • Measuring the hFE of transistors
  • Diode Test
  • Checking the continuity of the circuit
• ADDITIONAL FEATURES:
  • NCV (Electric Field Detection Function)
  • Manual change of measuring ranges
  • Live wire detection
  • True RMS
  • Fuse Blow Notification
  • Overload notification: >= 20 A
  • REL Mode: Reset the reading
  • Freeze the last indication
  • Display backlighting
  • Maximum/Minimum Value Storage
  • Sound and light signal: during continuity and NCV measurement
  • Auto shut-off
  • Low battery indicator
  • Maximum Read: 6000
• WORKING ENVIRONMENT:
  • Operating Temperature: 0 C ~ 40 C (32 F ~ 104 F)
  • Storage Temperature: -10 C ~ 50 C (14 F ~ 122 F)
  • Relative Humidity: 0 C ~ 30 C =<75%, 30 C ~ 40 C =<50%
  • Working Altitude: 0~2000m
