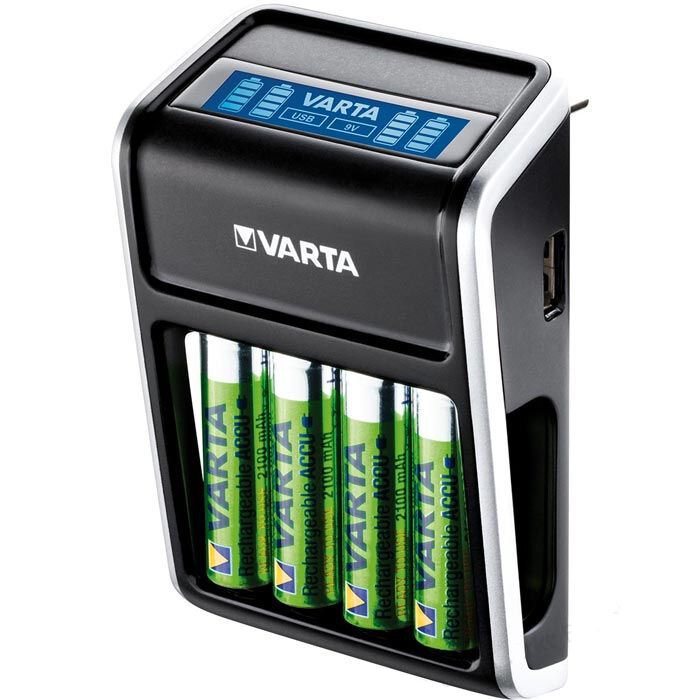

VARTA LCD PLUG CHARGER 57677 Processor charger
Charger Description:
Easy and safe charging
Ergonomic and unique design
Handy size: Built-in plug
Blue LED-backlit LCD display indicates battery level and USB cable usage
It charges AA/AAA/9V batteries and USB device at the same time!
Additional USB output
Numerous safety features: voltage control, sleep timer, short circuit protection, alkaline battery detection
Charging time: 4 hours *
3-Year Warranty
Available with 4x AA rechargeable batteries 2100 mAh 56706
* Depends on battery capacity: Based on 4 rechargeable AA 1600 mAh
Advantages of the Charger:
Minus Delta V method
A method using the fact that the voltage on the loaded cell is lowered slightly (-Delta V) as soon as it is fully charged and the charging process is completed.
USB-Out function (output)
Charge your device using the USB-Out port.
Timer
The Timer turns off the device after a certain period of time, regardless of the charging status.
Detecting alkaline batteries and broken batteries
Includes criteria for switching off the charger to prevent the battery from charging the primary batteries, defective batteries, and reverse poloryzing.
Protection against improper polarization
Reverse Battery protection
Technical Specifications:
Battery sizes: AAA, AA, 9V, device
Battery type: Nickel-metal hydri(Ni-MH)
Battery configuration:
AAA 2/4
AA 2/4
9V 1
Charging:
AAA 200 mA +/-10%
Charger Description:
Easy and safe charging
Ergonomic and unique design
Handy size: Built-in plug
Blue LED-backlit LCD display indicates battery level and USB cable usage
It charges AA/AAA/9V batteries and USB device at the same time!
Additional USB output
Numerous safety features: voltage control, sleep timer, short circuit protection, alkaline battery detection
Charging time: 4 hours *
3-Year Warranty
Available with 4x AA rechargeable batteries 2100 mAh 56706
* Depends on battery capacity: Based on 4 rechargeable AA 1600 mAh
Advantages of the Charger:
Minus Delta V method
A method using the fact that the voltage on the loaded cell is lowered slightly (-Delta V) as soon as it is fully charged and the charging process is completed.
USB-Out function (output)
Charge your device using the USB-Out port.
Timer
The Timer turns off the device after a certain period of time, regardless of the charging status.
Detecting alkaline batteries and broken batteries
Includes criteria for switching off the charger to prevent the battery from charging the primary batteries, defective batteries, and reverse poloryzing.
Protection against improper polarization
Reverse Battery protection
Technical Specifications:
Battery sizes: AAA, AA, 9V, device
Battery type: Nickel-metal hydri(Ni-MH)
Battery configuration:
AAA 2/4
AA 2/4
9V 1
Charging:
AAA 200 mA +/-10%
Product features VARTA charger LCD PLUG CHARGER 57677 + 4 x R6/AA 2100 mAh
Producer
Varta
Model / Manufacturer Code
LCD PLUG CHARGER 57677
Supported battery types
- Ni-MH batteries
Supported battery sizes
R6 / AA(2-4 akumulatory),R03 / AAA(2-4 akumulatory),6F22/HR22/9V(1 akumulator)2-4 akumulatory
Input voltage
- AC 220-240 V, 50-60 Hz
Charging method
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
Charging current in CC (main) phase [mA]
- AAA 200 mA +/- 10%
Other important product features
- USB Function - Out
- Charges AA/AAA/9V batteries and a USB device at the same time
Security
- Microprocessor with ∆V (dV) control
- Against overload / short circuit
- Detection of damaged and alkaline cells
- Timer
Charger operating modes
- Charge
Features of LCD Display
- Charge level for each channel
Contents
- Charger
- Rechargeable batteries 4 x AA 2100 mAh 56706
Warranty [miesiące]
36
Approximate charging times
- 4 x AA 1600 mAh rechargeable batteries - 4 hours
Markings / certificates
Ce
Product features VARTA charger LCD PLUG CHARGER 57677 + 4 x R6/AA 2100 mAh
Producer
Varta
Model / Manufacturer Code
LCD PLUG CHARGER 57677
Supported battery types
- Ni-MH batteries
Supported battery sizes
R6 / AA(2-4 akumulatory),R03 / AAA(2-4 akumulatory),6F22/HR22/9V(1 akumulator)2-4 akumulatory
Input voltage
- AC 220-240 V, 50-60 Hz
Charging method
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
Charging current in CC (main) phase [mA]
- AAA 200 mA +/- 10%
Other important product features
- USB Function - Out
- Charges AA/AAA/9V batteries and a USB device at the same time
Security
- Microprocessor with ∆V (dV) control
- Against overload / short circuit
- Detection of damaged and alkaline cells
- Timer
Charger operating modes
- Charge
Features of LCD Display
- Charge level for each channel
Contents
- Charger
- Rechargeable batteries 4 x AA 2100 mAh 56706
Warranty [miesiące]
36
Approximate charging times
- 4 x AA 1600 mAh rechargeable batteries - 4 hours
Markings / certificates
Ce
