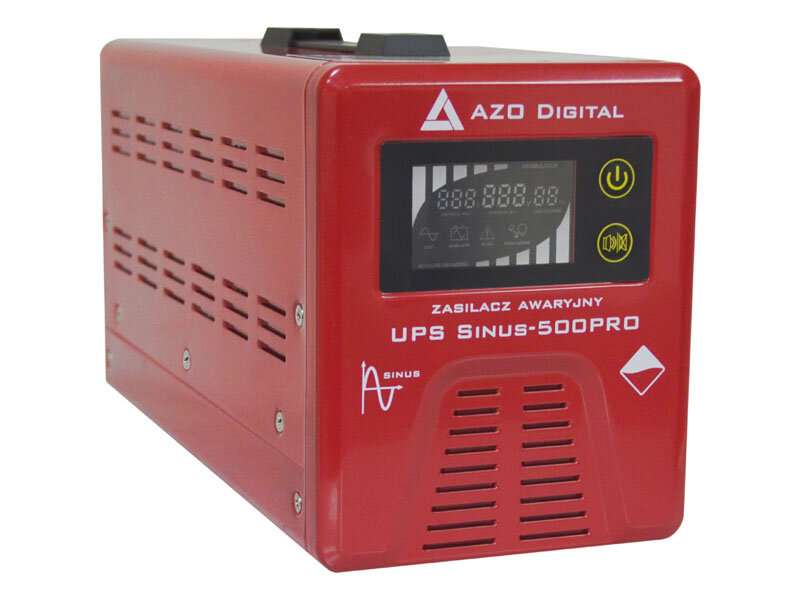

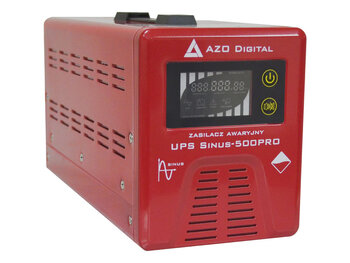

The Sinus-500PRO 500VA uninterruptible power supply is designed for emergency power supply of devices that require operation in case of power failure in the electrical network. The device features an intelligent 3-stage battery charging algorithm and 3 independent charging current levels depending on the battery size (3A, 7A, 10A). |
In case of power failure detection, the inverter switches to "emergency power" mode, drawing energy previously stored in the battery. The switch from battery power to the grid occurs automatically when voltage appears in the grid, simultaneously recharging the battery. The power supply is equipped with a simple and clear menu in Polish.
The inverter is designed to power induction motors, allowing it to be used to power refrigerators, heating pumps, stoves, etc.
The device includes the following functions:
• pure sine wave DC/AC inverter
• UPS type emergency switch - switching the power source from the grid to the battery
• intelligent 3-stage network battery charger (rectifier) charging the battery with safe current
• AVR voltage stabilizer
Device features:
• Processor control of output shape and voltage
• Overload, short-circuit, and thermal protections
• Indication of too low and too high supply voltage and deep discharge state of the battery
• Intelligent smooth fan control
• High efficiency
• Low power consumption without load
• Guaranteed quality and reliability
Included:
• Sinus-500PRO 500VA 12V/230V UPS with AVR function
• Power cables for the battery
• User manual in Polish
• Warranty card - 3 years warranty
| Input voltage: | 140÷275V |
| Output voltage: | 230 V |
| Maximum power: | 500W |
| Continuous power: | 350W |
| Output voltage waveform: | Sine wave |
| Supply voltage frequency: | 45÷65Hz |
| Output frequency: | grid supply - in accordance with grid frequency 45÷65Hz |
| Output frequency: | battery supply - 50Hz |
| Switching time: | < 4ms |
| Soft start for induction motors: | YES |
| Overload protection: | YES |
| Short-circuit protection: | YES |
| Power polarity reversal protection: | YES |
| Thermal protection: | 80°C |
| Supply voltage range protection: | 120-275 VAC |
| Audible alarm: | YES |
| Compatibility with power generators: | YES |
| Battery charging current: | 3A / 7A / 10A |
| Battery discharge warning: | YES |
| Operating temperature: | -10°C ~ +40°C |
| Efficiency: | >97% |
| Cooling: | Active |
| Power connector: | Power cable with 230VAC plug |
| 230V output socket: | 1 x E (with pin) |
| Housing: | Aluminum |
| Protection degree (IP): | IP21 |
| Dimensions: | 140 x 180 x 350 mm |
| Weight: | 5.1 kg |
| Warranty: | 3 years |
