Professional Compact Processor Loader

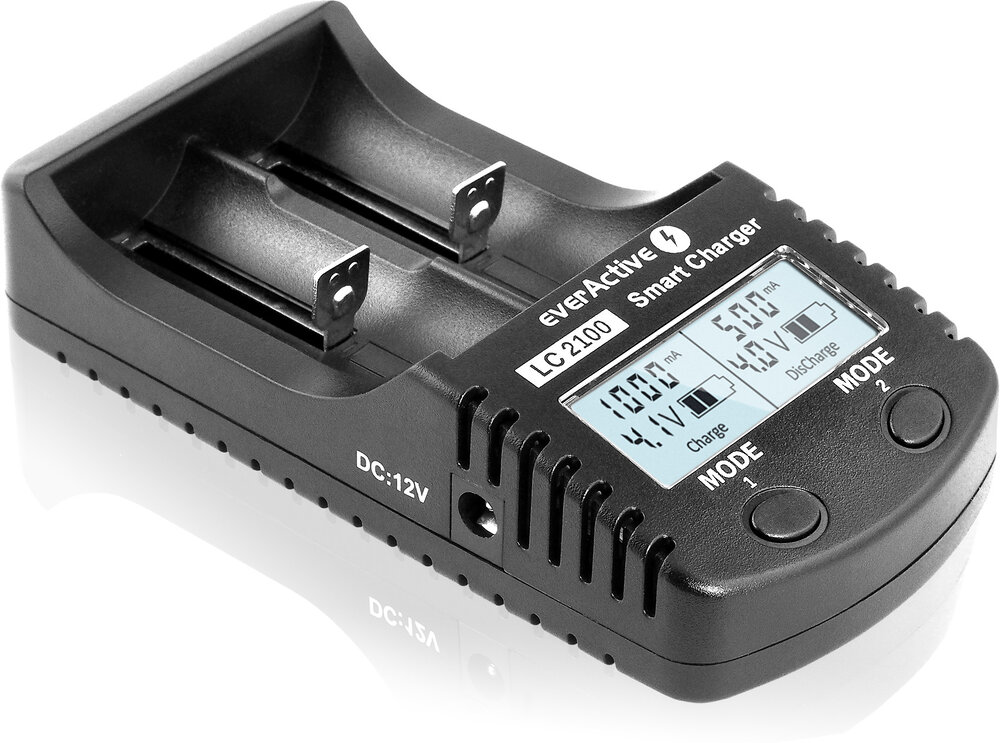

everActive LC-2100
For Li-ion batteries in 18650 sizes and other
www.everactive.pl
The charger allows charging and testing 1-2 PCs. Lithium-ion batteries in different sizes:
14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 22650, 25500, 26650.
The INTERNAL DC Resistance measurement, supplemented by a capacity measurement , allows for exceptionally accurate selection of the batteries you own and to set them in sets for work in series or in bundles.
At the same time, the charger is an invaluable and unique tool for the off-the-fly flashlights and other devices requiring high battery power.
Advanced and reliable measurement functions are also useful for battery regeneration and cell package services.
| Key Features: - Two basic modes of Operation -charging (charge), Discharge (discharge), - microprocessor-controlled intelligent, multi-stage CC/CV loading process, - independently adjustable charging current: 0.5 A or 1a, - two independent charging channels , - Compact Size -easy to carry, - Unique Test -discharge Current 500 MA with function of measuring battery Capacity [mAh], - Unique test -the function of MEASURING internal DC resistance of rechargeable batteries in a few seconds assesses the current capabilities of the cell-it allows to perfectly select the batteries under high-current requirements, - set of protections: before overcharging, over-discharge of cells, short-circuit, overload, thermal, before reverse polarity of cells. |
Everactive LC2100 is a specialized charger designed for Li-ion cells, which is the transfer of ideas from highly valued Chargers NC-1000 and NC-3000, which are designed for Ni-MH cells.
The charger allows the user to choose the charging current: 500mA or 1000mA and has fully independent charging channels. The unique function of this type of loader is the discharge mode (current of 500 mA) with simultaneous measurement of battery capacity and fast (yet repeable and reliable) measurement of internal battery resistance. These two parameters allow you to fully assess the health and quality of each battery.
The large, easy-to-read backlit LCD display and the power supply from the cigarette lighter socket (adapter available separately) are additional advantages of the LC 2100 charger.
Charger Input voltage is Universal 12V DC -SUPPLIED with AC adapter 110-240v with 1m cable.
| Product data | |
| Manufacturer | everActive |
| Charger Model | LC-2100 |
| Supported Battery types | |
In the CC phase
Loading
Internal battery Resistance measurement
Against excessive discharge of the cells
Short Circuit
Overload
Thermal
Reverse polarity of the cells
Power Supply-97g
Mains adapter with 1m cable,
Manual
   |
Product features Fast charger for cylindrical batteries Li-ion 18650 everActive LC-2100
Producer
everActive
Model / Manufacturer Code
LC-2100
Supported battery types
- Li-ion batteries 3.6-3.7V, protected (with PCM/PCB)(1 - 2 akumulatory)
- Li-ion batteries 3.6-3.7V, unprotected(1 - 2 akumulatory)
Supported battery sizes
10440,14500,14650,16340,17500,17670,18350,18500,18650,22650,25500,26650
Input voltage
- 12 V DC / 1500 mA(Zasilacz sieciowy AC/DC w komplecie)
Maximum dimensions of the battery to be charged (width x height) [mm]
26 x 69.5
Charging method
- Processor-controlled CC/CV for Li-ion/Li-FePO4
Charging current in CC (main) phase [mA]
- adjustable - 0.5A / 1A per channel / slot
Charging Termination Voltage
- 4.2V ± 0.05V
Termination Current for Lithium Cells [mA]
~80mA
Discharge Current [mA]
- 500(Na każdy kanał / slot)
Other important product features
- Measuring battery capacity
- Measurement of internal resistance of batteries
Security
- Before reloading
- Before over-discharging cells
- Against overload / short circuit
- Before reverse polarity of cells
- Before the charger overheats
Charger operating modes
- Charge
- Discharge
Features of LCD Display
- Duration of the process
- Battery voltage
- Working Status (Charge/Discharge)
- Battery capacity
Dimensions (W x D x H) [mm]
65 x 133 x 31.5
Mass [g / szt.]
117,0(Masa ładowarki: 117g. Zasilacz: 97g.)
Contents
- LC-2100 Battery Charger
- AC adapter with 1m cable
- Manual
Warranty [miesiące]
24
Markings / certificates
Ce
Product features Fast charger for cylindrical batteries Li-ion 18650 everActive LC-2100
Producer
everActive
Model / Manufacturer Code
LC-2100
Supported battery types
- Li-ion batteries 3.6-3.7V, protected (with PCM/PCB)(1 - 2 akumulatory)
- Li-ion batteries 3.6-3.7V, unprotected(1 - 2 akumulatory)
Supported battery sizes
10440,14500,14650,16340,17500,17670,18350,18500,18650,22650,25500,26650
Input voltage
- 12 V DC / 1500 mA(Zasilacz sieciowy AC/DC w komplecie)
Maximum dimensions of the battery to be charged (width x height) [mm]
26 x 69.5
Charging method
- Processor-controlled CC/CV for Li-ion/Li-FePO4
Charging current in CC (main) phase [mA]
- adjustable - 0.5A / 1A per channel / slot
Charging Termination Voltage
- 4.2V ± 0.05V
Termination Current for Lithium Cells [mA]
~80mA
Discharge Current [mA]
- 500(Na każdy kanał / slot)
Other important product features
- Measuring battery capacity
- Measurement of internal resistance of batteries
Security
- Before reloading
- Before over-discharging cells
- Against overload / short circuit
- Before reverse polarity of cells
- Before the charger overheats
Charger operating modes
- Charge
- Discharge
Features of LCD Display
- Duration of the process
- Battery voltage
- Working Status (Charge/Discharge)
- Battery capacity
Dimensions (W x D x H) [mm]
65 x 133 x 31.5
Mass [g / szt.]
117,0(Masa ładowarki: 117g. Zasilacz: 97g.)
Contents
- LC-2100 Battery Charger
- AC adapter with 1m cable
- Manual
Warranty [miesiące]
24
Markings / certificates
Ce
