Professional processor Charger for Li-ion, Ni-MH cell sizes AAAA, AAA, AA, A, SC, C, 10440, 14500, 14650, 16340, 17500.17670, 18350, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650 Three-stage charging method: TC/CC/CV Two independent charging channels VA LCD Colour display Reactivation of deeply discharged cells and 0V cells Measurement of capacitance and resistance of cells Charging Current: 2x 1A/1x 2A | Charging voltage: 4, 2V Powered by Micro USB-no power supply included Protection: Thermal, short-circuit, before the reverse insertion of the battery
View full product description

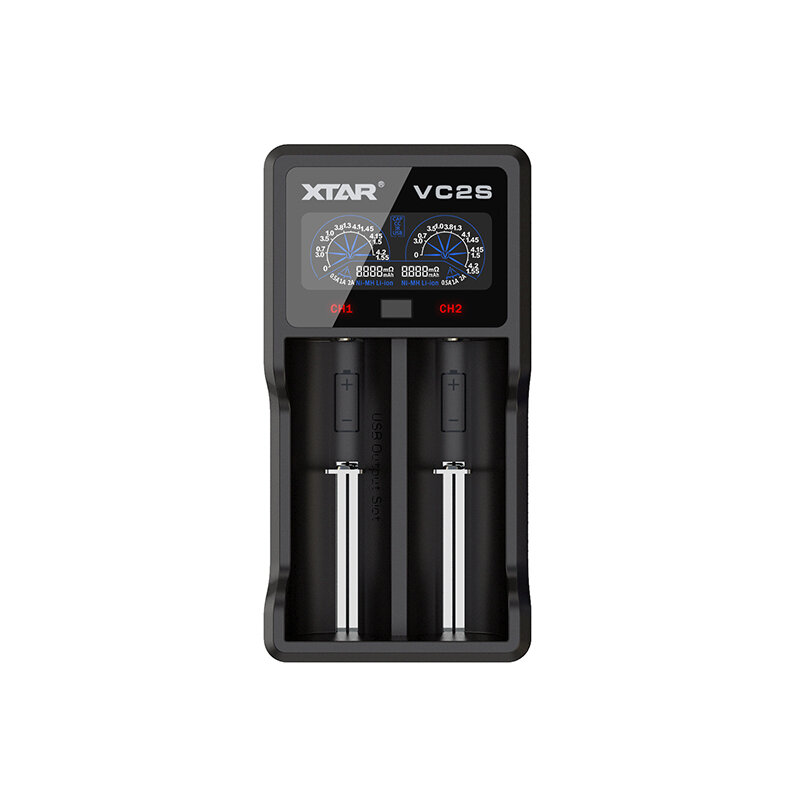

Charger for cylindrical batteries Li-ion/Ni-MH/Ni-CD 18650 Xtar VC2S
9,50 € gross
9,50 € net
Currently unavailable.
Currently unavailable
Notify me when available
We will send a notification of availability to the email address below
Professional dual-Channel compact processor charger Xtar VC2S Li-Ion and Ni-MH batteries in 18650, AA, AAA and other sizes
Key Features
• Charging of a three-stage processor-controlled Li-ion battery charging process TC/CC/CV • Charging of Ni-MH rechargeable batteries by CC method • Two independent charging channels • Two charging currents-2x 1A and 1x 2A • VA LCD display for charging capacity, cell voltage, charging current and internal link resistance • Powered by any charger with a 2A USB socket • Compact size-Easy to carry • Reactivation function of deeply discharged cells • Protection: Short-circuit, thermal, reverse polarity
Xtar is a renowned manufacturer of high quality Li-ion rechargeable battery chargers, flashlights and lithium batteries. Xtar products are sold in more than 120 countries, including mines IN the USA, Germany, Japan and Russia. For the production of Chargers Xtar uses the highest quality materials-from the plastic casing to the efficient electronics. All Xtar Chargers HAVE CE certification required on European markets.
VC2S is a professional processor loader with three-stage charging process TC/CC/CV and LCD display. It charges 1-2 Li-ion 3.6/3, 7V and Ni-MH cells with any capacity in the sizes AAA/R03, AA/R6, R14/C, 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650.
Illuminated VA LCD Charger display Xtar VC2S shows up to date information on the operating status of the charger: rechargeable batteries Expressed in mAh, battery voltage, charging current and internal resistance of the cell.
What Is THE TC/CC/CV charging method? It is a three-step process of loading Li-ion cells to keep the cell in good condition by charging the right current at each stage and completing the charging process at the right moment. The various stages of the TC/CC/CV process are: • TC phase: Cells discharged below 2, 9V are ' awake ' to lower currents. • CC phase: When 2, 9V is reached, the cell is loaded with a constant current of 0, 05A to 0, 5A (depending on the power source being used). • CV phase: When the cell is already nearly charged, the charger switches to a decreasing current charge until it reaches a voltage of 4, 2V on the cell. After reaching 4, 2V the charging process is complete-the battery is fully charged.
When left in the charger, the charged batteries will be subjected to a natural self-discharge process. Charging will resume when the battery voltage drops below 3.9 v.
The Xtar VC2S Charger has a function of reactivating deeply discharged cells and cells with a Voltage Of 0v. Many chargers on the market are not able to charge such batteries. Here with the help comes the charger Xtar VC2S, which in many cases allows you to ' resave ' such cells. Just insert a deeply discharged battery into the VC2S charger, as with normal charging, the charger detects the unloaded link and attempts to reactivate it. Attention! Cells unloaded below a certain level are irreversible and reactivated may not be possible. Avoid too deep discharge of Li-ion batteries-this can lead to a significant reduction in their durability and capacity or to their total malfunction.
The Xtar VC2S has an additional power bank function with 5V USB output with a maximum power of 1A. Any Li-ion battery with a minimum capacity of 2200mAh can be used as a power source. To use the Power Bank function, disconnect the charger from the power supply and place the batteries in it. When you connect the device to the USB output, the charger will automatically show
Output and charging current. Attention! The USB output is electronically protected against overload and turns off automatically when power consumption exceeds 1A.
Supplied with the Xtar VC2S Charger, we receive a micro USB cable. The power supply is not Included In the set. Any charger with a USB socket, for example, is enough to power the charger. Phone, or USB port or a computer with a free USB socket. Recommended charger Power is 2, 1A (2100mA).
Product data
Manufacturer
Xtar
Charger Model
VC2S
Supported Battery types
1-2 Rechargeable Li-Ion 3.6 batteries-3, 7V, secured and unprotected 1-2 Rechargeable Ni-MH 1.2 v Batteries
