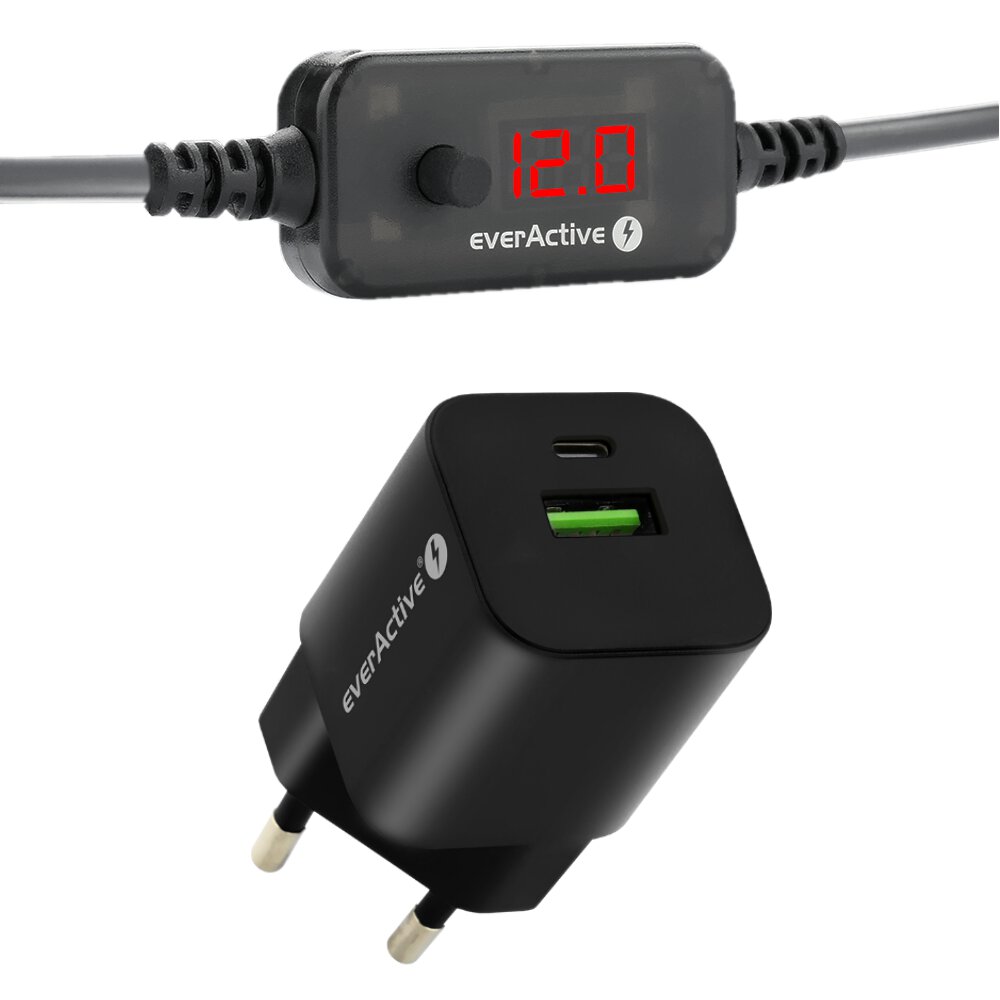

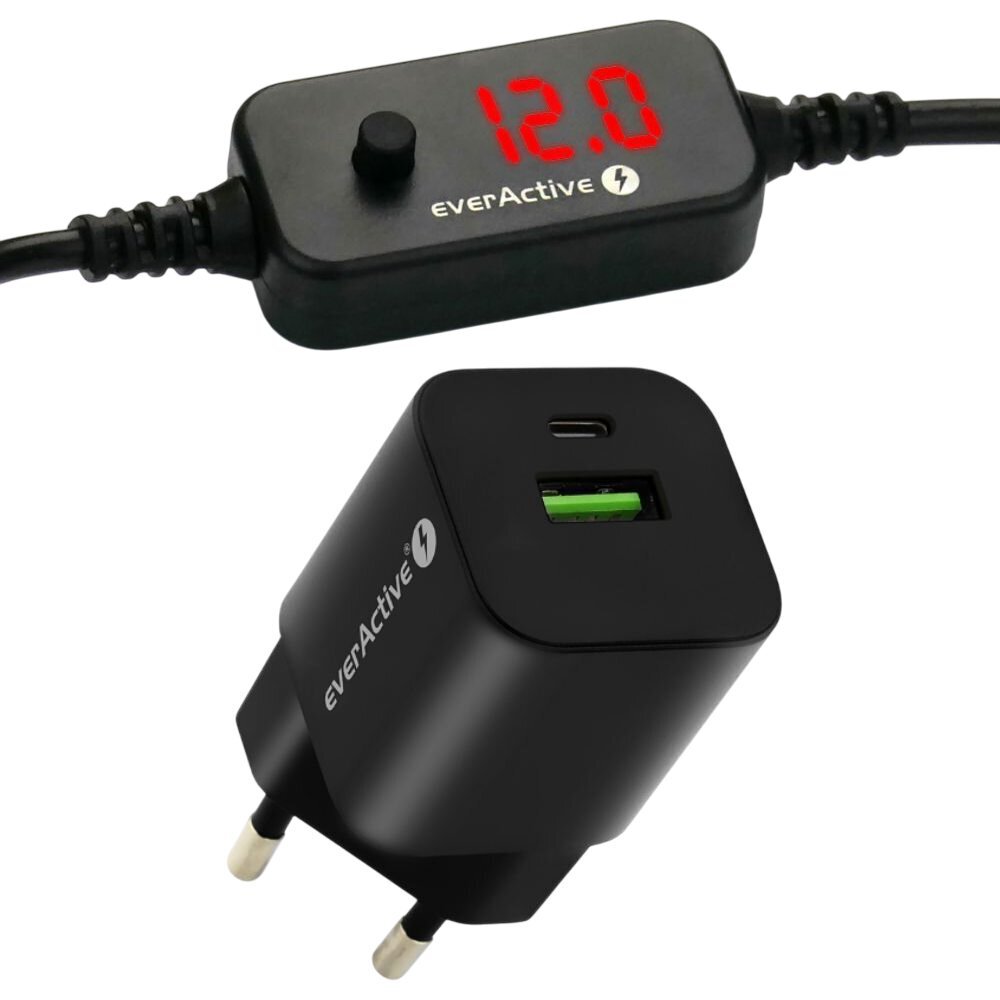

Set:
- Universal Power Supply, Voltage Selector USB-C PD - DC 5V, 9V, 12V, 15V, 20V everActive AD-PD65
- everActive SC-390QB 30W wall charger

Universal Power Supply, Voltage Selector USB-C PD - DC 5V, 9V, 12V, 15V, 20V, 10 connectors, everActive AD-PD65

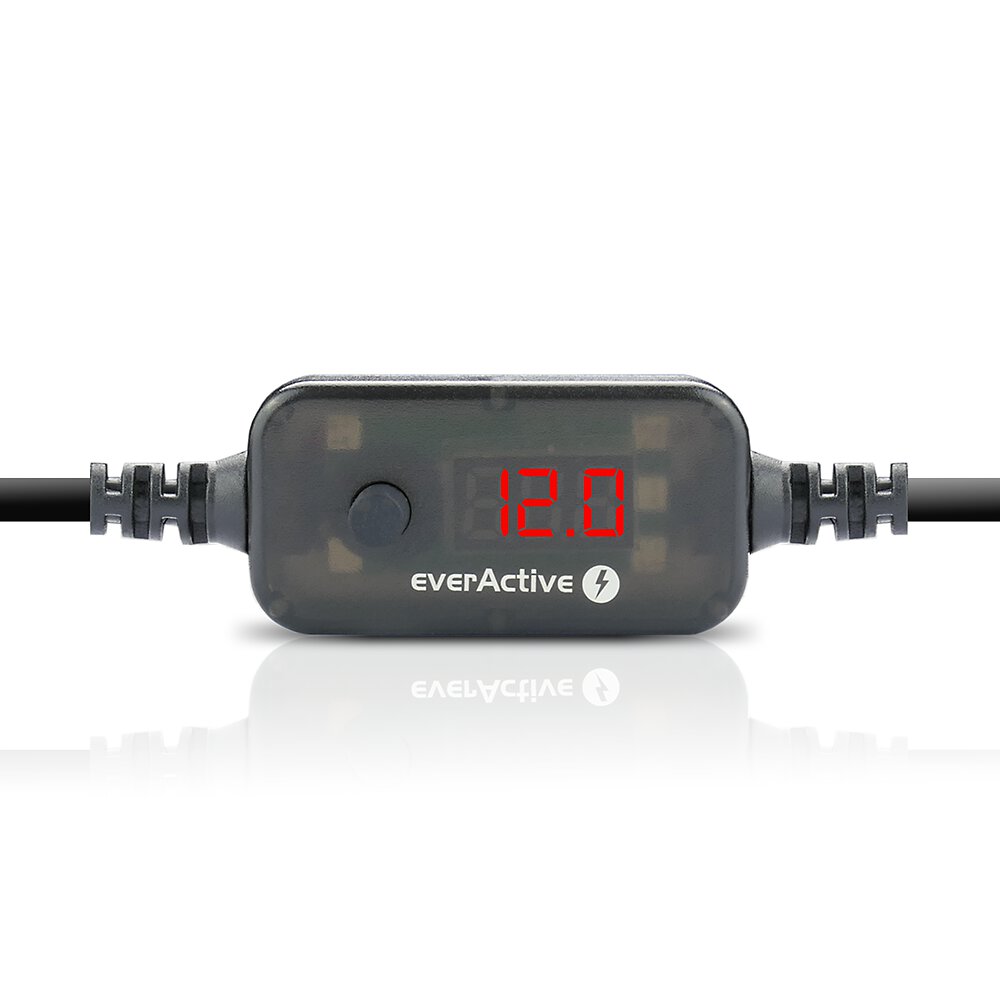

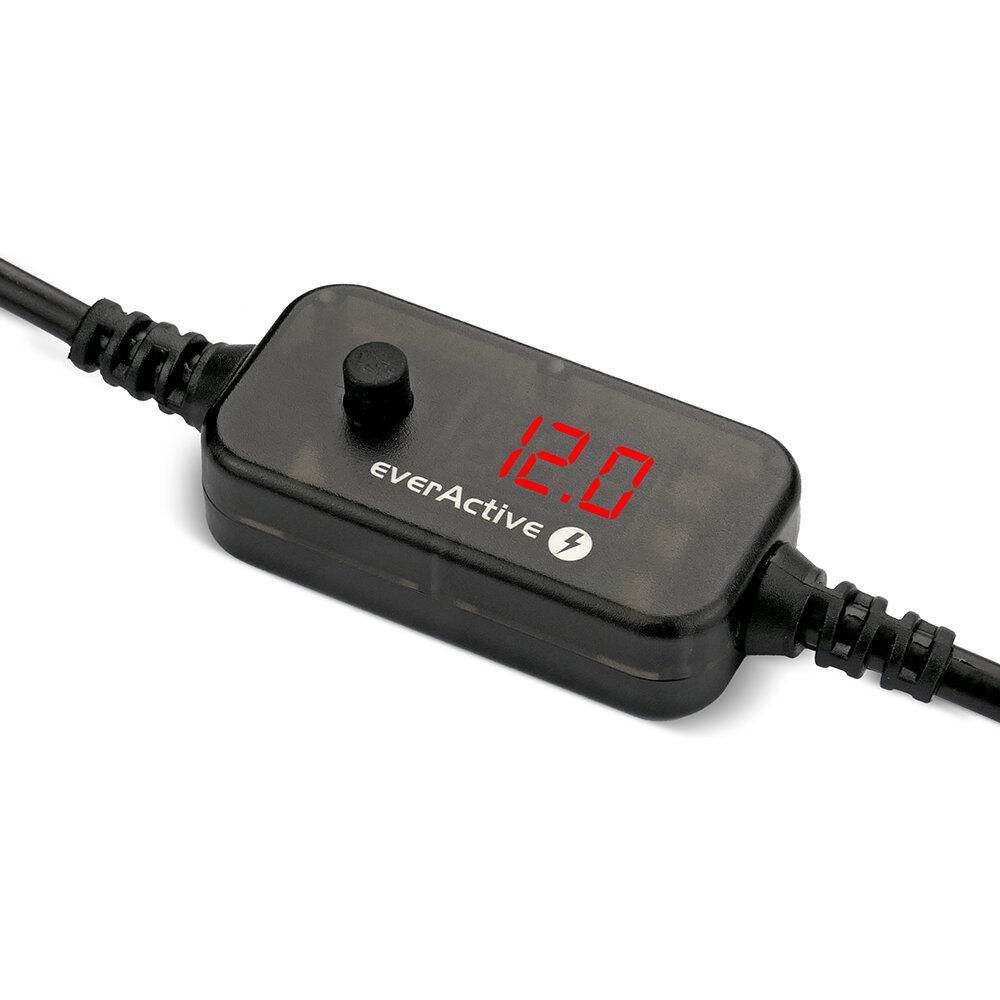

AD-PD65 – Your Universal Electronics Power Supply
Forget about the tangle of different power supplies and cables. The adapter we offer is a modern, universal tool that will allow you to power laptops, battery chargers, cameras, camcorders, audio equipment, network equipment (routers, switches, etc.) and many other devices – all from a single charger or power bank that supports USB Power Delivery (your charger must have a USB-C output).
Thanks to the built-in voltage change button and a clear red LED display, you can set the right value in seconds – 5V, 9V, 12V, or even 15V or 20V (available voltage values may vary depending on your USB-C PD charger). Clear voltage indication ensures that your device gets exactly what it needs. Thanks to the memory function, the last setting will be remembered even after the power is disconnected.
For reliable work with our adapter, we recommend using everActive USB-C Power Delivery chargers.

Why?
- One cable – hundreds of applications – our adapter is equipped with a universal DC 5.5/2.1 connector, but the set includes numerous adapters – including another, universal 5.5/2.5 plug. Together with a set of 10 interchangeable DC connectors, you can fit it not only to popular laptops from brands such as Lenovo™, Dell™, HP,™ Asus™, Acer™, Samsung™, Sony™, Toshiba™ or LG™, as well as for other electronic devices:
- battery chargers, including Imax RC hobby chargers , etc. - it also works perfectly with chargers for everActive Ni-MH and Li-ion batteries - including NC-1000, NC-3000, NC-800, NC-1200, NC-1600, NC-109, UC-4000, UC-4200, etc.
- CCTV cameras and CCTV surveillance,
- cash registers and fiscal printers,
- payment terminals,
- multimedia projectors,
- portable sound system and audio amplifiers,
- LED lighting and advertising panels,
- portable radio receivers and scanners,
- service and laboratory equipment,
- multiple routers and network devices with DC power.
- Thanks to such wide compatibility, the AD-PD65 can in many cases replace a whole set of different chargers and power supplies at home, in business or in the field.
- High power up to 65W – ideal for most older notebooks requiring 18-19V (you need to choose 20V mode).

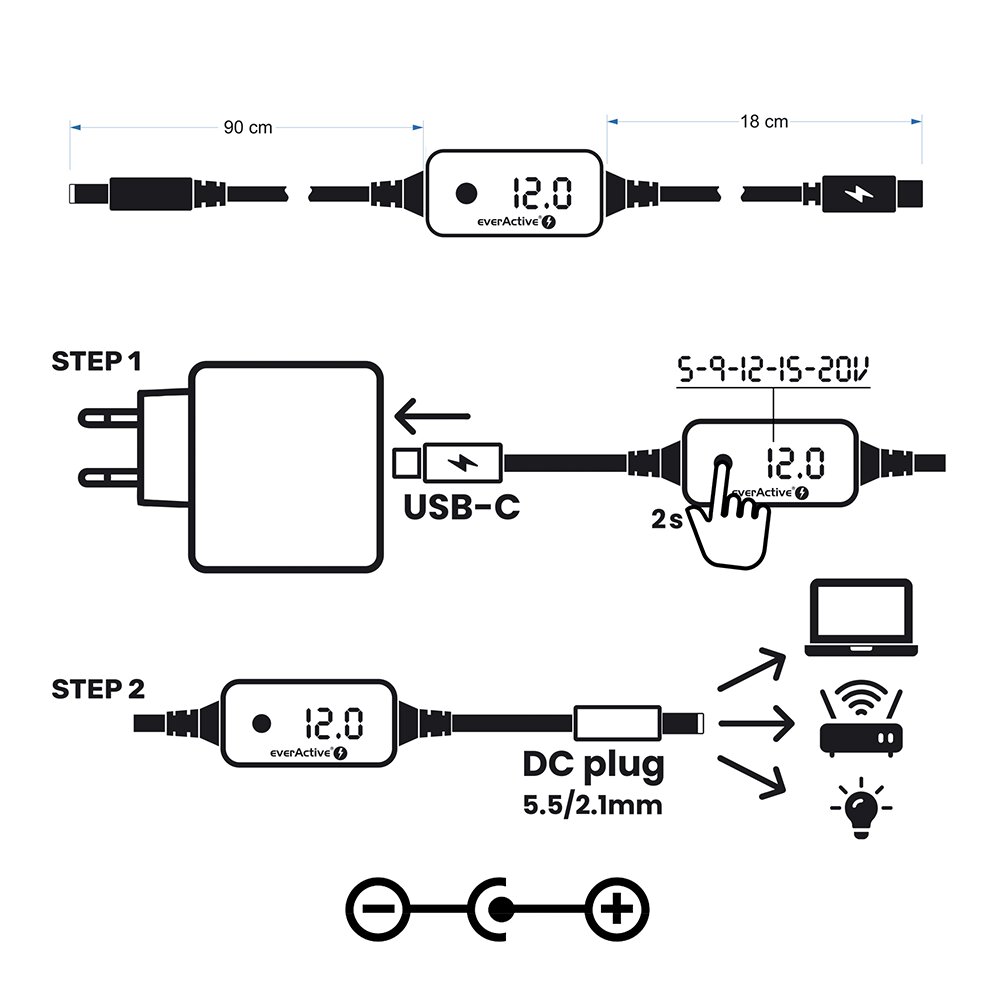

- Safe regulation – you choose the voltage before connecting the device, minimizing the risk of damage. The product has an integrated protection against accidental-rapid voltage change during operation of the device - to change the output voltage it is necessary to press and hold the button for min. 2s.
- Lightweight and portable – fits in a laptop bag or photo backpack or even into pocket.
- Fully compatible with PD chargers and power banks – turn one cable into a universal power supply.

What to pay attention to?
- This is not a voltage converter – the AD-PD65 will not increase the maximum voltage available from your charger/power bank. If the power supply does not support e.g. 12V, 15V or 20V, the adapter will not be able to generate them. It is an extensive "PD trigger" device and allows you to activate and select the output voltage from a power source with Power Delivery technology.
- The voltage range depends on the power source – check the specifications of your PD charger to make sure it supports the required voltage.
- Maximum power – up to 65W (20V / 3.25A). Do not exceed this value or the power limit of the power supply itself.
Warnings:
- Do not change the voltage after connecting to the device – always select the correct voltage before plugging the cable into the equipment. A change in voltage "on the fly" can cause permanent damage.
- Do not use unauthorized plugs or self-made adapters – this may lead to a short circuit or failure of the device.
- Always confirm the voltage on the LED display before plugging in – you avoid the risk of overvoltage.
- Unplug the cable when not in use – this protects both the equipment and the power source.

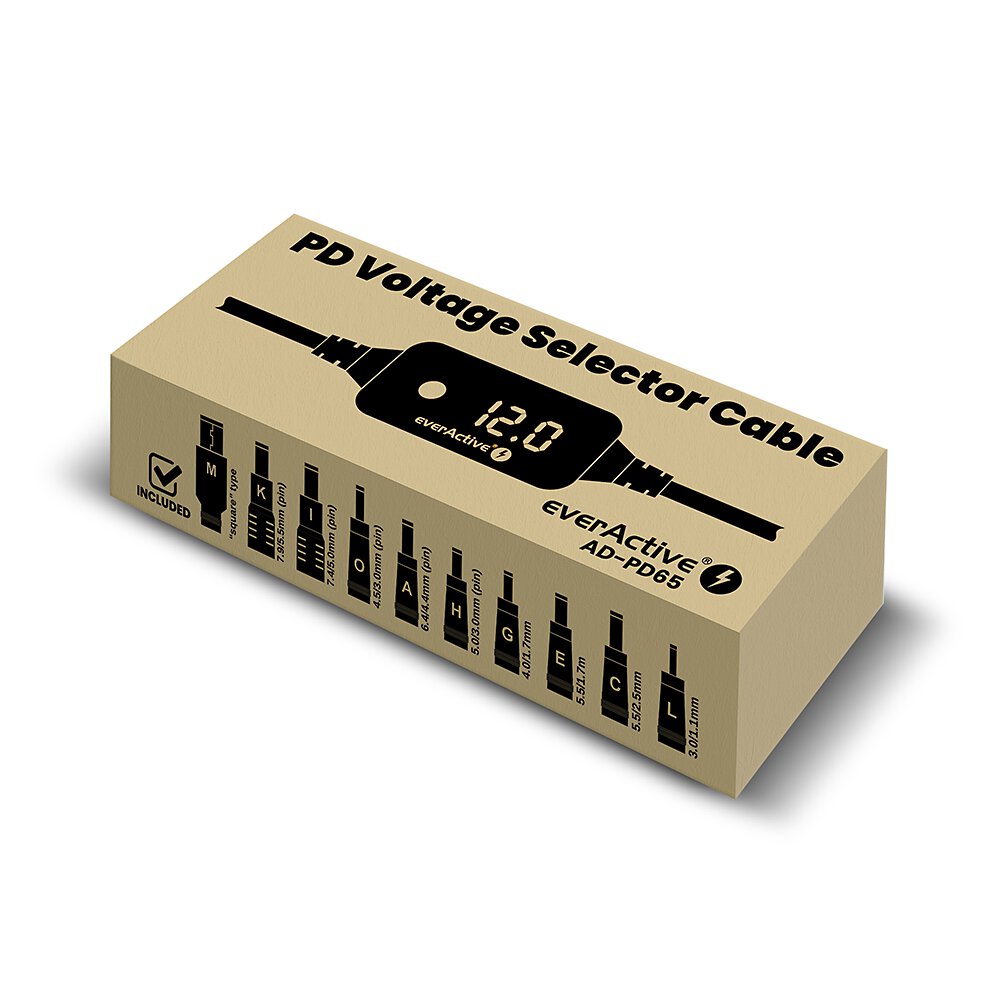

The set includes:
- AD-PD65 cable with LED display and voltage control
- 10 DC adapters:
- M – for Lenovo™ (square type plug)
- K – for Lenovo™ (7.9×5.5mm round with pin)
- I – for HP™ & Dell™ (7.4×5.0 mm with pin)
- O – for HP™, Dell™ & Asus™ (4.5×3.0 mm with pin)
- A – for Sony™, Fuji™, Samsung™ & LG™ (6.4×4.4 mm with pin)
- C – universal, m.in. Lenovo™, Asus™, Toshiba™ (5.5×2.5 mm)
- G – for Lenovo™ & Dell™ (4.0×1.7 mm)
- H – for Samsung™ (5.0×3.0mm with pin)
- E – for Acer™ (5.5×1.7 mm)
- L – for Acer™ & Samsung™ (3.0×1.1 mm)
- User manual in Polish
The AD-PD65 is the perfect solution for people who often travel, work in the field or simply value order and functionality. One adapter to replace a stack of power supplies – it couldn't be simpler.

- USB-C
- DC 5V, 9V, 12V, 15V, 20V
- 65
everActive GaN SC-390QB charger with USB QC3.0 and USB-C PD PPS 30W socket
Wall charger with USB QC3.0 and USB-C PD PPS port
everActive SC-390QB 30W
- probably the smallest 30W charger on the market! - based on gallium nitride (GaN) semiconductors
- Significant reduction in loader weight and dimensions and increased efficiency
- iQ Smart Charging Technology - Advanced chip automatically detects the connected device and charges it with the maximum current appropriate for it
- support for the most popular fast charging technologies: PPS, PD 3.0, PD 2.0, QC4+, QC4, QC3.0, QC2.0, Samsung AFC, Huawei FCP, BC1.2 DCP, Apple 2.4A
- High performance - fast charging of 2 devices at once
- USB QC3.0 output: DC 5.0V-3.0A 15.0W, 9.0V-2.0A 18.0W, 12.0V-1.5A 18.0W
- USB-C output:
- PD: DC 5.0V-3.0A 15.0W, 9.0V-3.0A 27.0W, 12.0V-2.5A 30.0W, 15.0V-2.0A 30.0W, 20.0V-1.5A 30.0W
- PPS: 3.3V-11.0V max 3.0A (9.9-30.0W), 3.3V-16.0V max 2.0A (6.6-30.0W)
- Total output power: 30W
- Guarantee of maintaining rated parameters even under continuous, long-term load
- Input voltage: 100-240V~50-60Hz 0.8A--guarantees usability worldwide
- Elegant and compact refractory housing

What is a GaN charger?
GaN technology is a completely new quality in efficient chargers. Gallium nitride is a new innovative semiconductor material that replaces traditionally used silicon.
Replacing silicon with gallium nitride allowed higher voltage to be conducted and more power to be transferred, so less energy is lost to heat. As a result of this change, the charger based on GaN technology can significantly change its dimensions and weight, and the charging itself is faster and more efficient.
To use the potential of the new technology even more effectively - the PCB in such a charger can be multidimensional to take full advantage of the cubic capacity of the housing. The highest quality insulation materials ensure the highest level of safety and protection against electric shock.

Huge possibilities, small size
Thanks to the latest GaN technology, the everActive charger is 30% smaller than a standard charger and as a result takes up less space. Wide voltage and voltage frequency range--100-240V~50-60Hz, enables you to use the charger anywhere in the world. The compact size makes it easy to store, making it perfect for travel.
Extremely energy-efficient and efficient
The charger meets the requirements of efficiency class 6, which generates low energy losses during operation (does not overheat). The advantage is also negligible power consumption in standby mode - 0.06W.

iQ Smart Charging Technology
iQ Smart Charging technology ensures ultra-fast charging for smartphones, tablets, ultrabooks, MP3 players, cameras and other mobile devices on the market. The everActive charger will automatically select the optimal charging speed for each connected device. All you need to do is connect the right cable.
Security
The charger takes care of safety by equipping it with a set of protections: against overcharging, against short circuit and against overheating.
everActive chargers are fully certified and tested in accordance with applicable European standards - CE (EMC + LVD + ROHS2).

Charges many different devices
The everActive SC-390QB charger is compatible with all iPhones that support fast charging. It is also perfect for Android smartphones or tablets. You can also successfully use it, among others, in combination with laptops, speakers, power banks, flashlights or desk lamps. With support for fast charging protocols such as PD and QC3.0, this unique charger can be used in almost any situation!

Fast charging technologies
The charger is equipped with two fast charging sockets - USB and USB-C.
The advanced system supports the most popular fast charging technologies: PPS, PD 3.0, PD 2.0, QC4+, QC4, QC3.0, QC2.0, Samsung AFC, Huawei FCP, BC1.2 DCP, Apple 2.4A.
The USB-C port with PD allows you to charge your smartphone and tablet in a flash, but also allows you to power devices with higher power consumption like ultrabooks.
The USB port with QC3.0 allows you to charge up to 50% faster than other standard chargers. It also supports earlier versions of QC2.0, QC1.0.
Robust housing
The housing made of very durable, highest quality materials combined with a compact size and ergonomically located sockets - will appeal to every user.




- Network
- Integrated mains plug
- AC 100-240V, 50-60Hz, 0.8A max
- USB-A socket: DC 5.0V-3.0A 15.0W, 9.0V-2.0A 18.0W, 12.0V-1.5A 18.0W
- USB-C PD Socket: DC 5.0V-3.0A 15.0W, 9.0V-3.0A 27.0W, 12.0V-2.5A 30.0W, 15.0V-2.0A 30.0W, 20.0V-1.5A 30.0W (PPS: 3.3V-11.0V max 3.0A (9.9-30.0W), 3.3V-16.0V max 2.0A (6.6-30.0W))
- 30
- USB-A + USB-C connection variant: max 5.0V/3.0A 15W
- USB-A (QC 3.0)
- USB-C (PD)
- Before reloading
- Against overload / short circuit
- Before the charger overheats
- USB-C
- DC 5V, 9V, 12V, 15V, 20V
- 65
- Network
- Integrated mains plug
- AC 100-240V, 50-60Hz, 0.8A max
- USB-A socket: DC 5.0V-3.0A 15.0W, 9.0V-2.0A 18.0W, 12.0V-1.5A 18.0W
- USB-C PD Socket: DC 5.0V-3.0A 15.0W, 9.0V-3.0A 27.0W, 12.0V-2.5A 30.0W, 15.0V-2.0A 30.0W, 20.0V-1.5A 30.0W (PPS: 3.3V-11.0V max 3.0A (9.9-30.0W), 3.3V-16.0V max 2.0A (6.6-30.0W))
- 30
- USB-A + USB-C connection variant: max 5.0V/3.0A 15W
- USB-A (QC 3.0)
- USB-C (PD)
- Before reloading
- Against overload / short circuit
- Before the charger overheats
