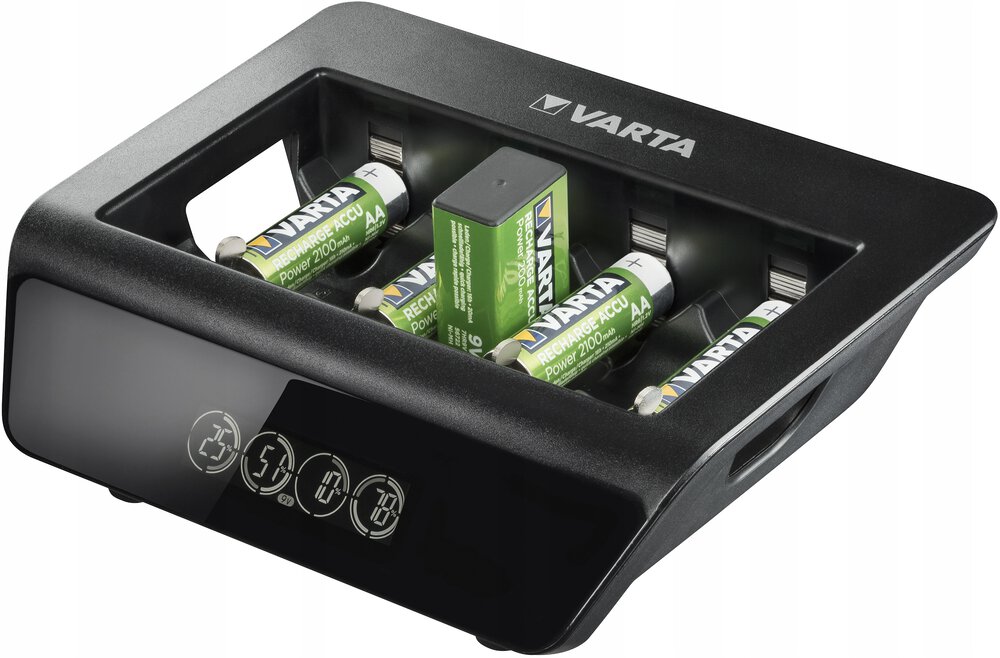

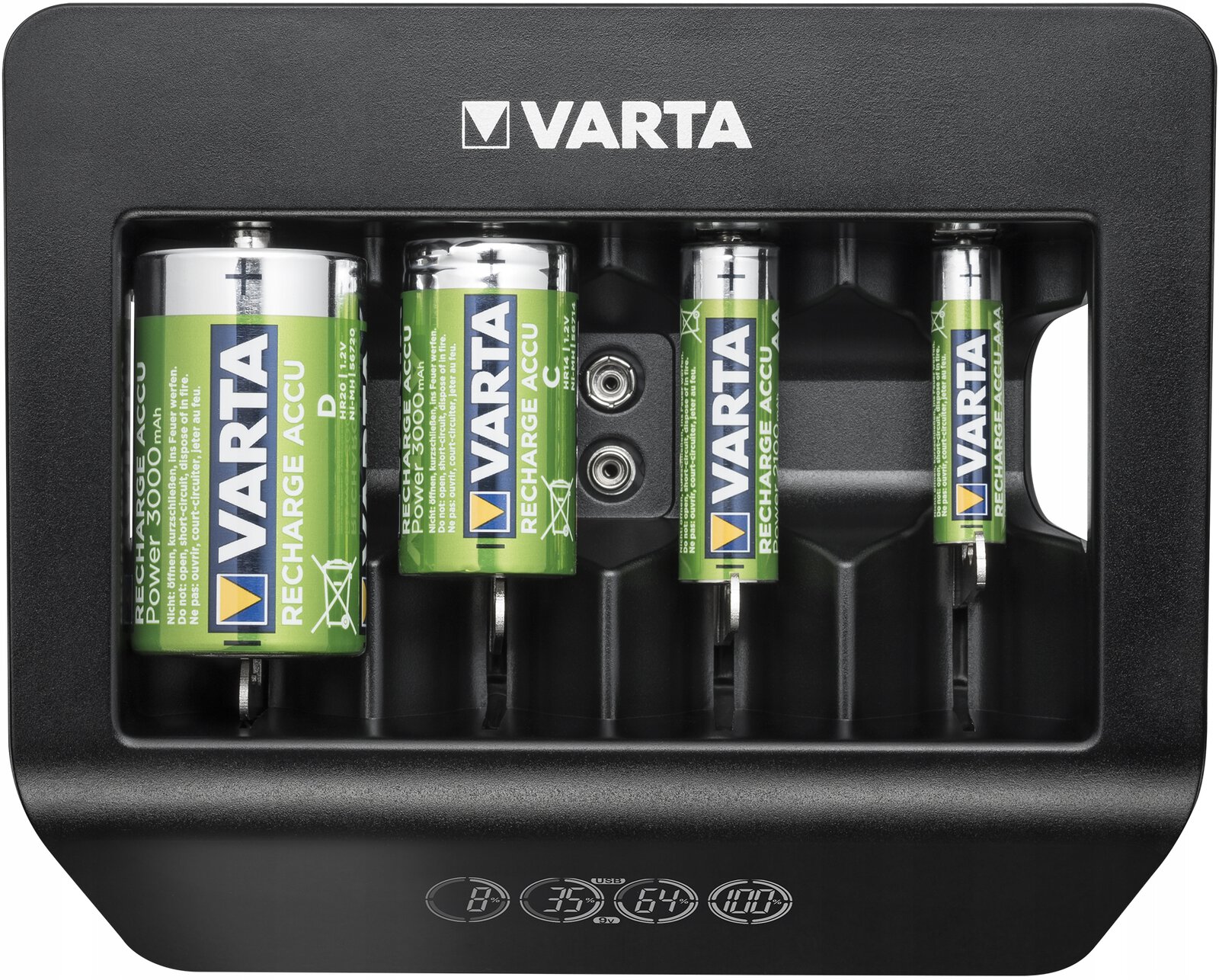

Rechargeable battery charger Ni-MH VARTA LCD UNIVERSAL CHARGER PLUS 57688
The most versatile of our reliable chargers!
The VARTA LCD Universal Charger+ can charge NiMH AA, AAA, C, D and 9V rechargeable batteries. Comprehensive safety features and a larger LCD display complete the functionality of the Universal Charger+ LCD charger, which will become your reliable and versatile source of energy!
FEATURES:
- Charges up to 4 cells AA, AAA, C, D or 1x 9V – charging time: 4 h*
- Additional USB port for charging external devices
- Single charging channels
- Intelligent charging finalization system
- Larger and simplified LCD display for greater convenience
- Improved sensitivity of faulty cell detection
- Extensive safety features: Minus Delta V method, sleep timer, short circuit protection, detection of alkaline batteries and broken cells
- Own design for an outstanding look
- AC Adapter
- Global voltage – for worldwide use (100-240V)
- Proven VARTA quality – 3 years warranty
Product features Rechargeable battery charger Ni-MH VARTA LCD UNIVERSAL CHARGER PLUS 57688
Producer
Varta
Model / Manufacturer Code
LCD UNIVERSAL CHARGER 57688
Supported battery types
- Ni-MH batteries
Supported battery sizes
R6 / AA(1-4 akumulatory),R03 / AAA(1-4 akumulatory),R14/C,R20/D,6F22/HR22/9V(1 akumulator)
Input voltage
- AC 100-240V, 50-60Hz
Charging method
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
Charging current in CC (main) phase [mA]
- AAA 200 mA +/- 10%
- AA 450 mA +/- 10%
- C 450 mA +/- 10%
- D 450 mA +/- 10%
- 9V 34 mA +/- 10%
- 5V USB 2400 mA +/- 10%
Other important product features
- USB Function - Out
- Charges AA/AAA/R14/R20/9V batteries and a USB device at the same time
Security
- Microprocessor with ∆V (dV) control
- Against overload / short circuit
- Detection of damaged and alkaline cells
- Timer
Charger operating modes
- Charge
Features of LCD Display
- Charge level for each channel
Contents
- Charger
Warranty [miesiące]
36
Approximate charging times
- 4 x AA 1600 mAh rechargeable batteries - 4 hours
Markings / certificates
Ce
Product features Rechargeable battery charger Ni-MH VARTA LCD UNIVERSAL CHARGER PLUS 57688
Producer
Varta
Model / Manufacturer Code
LCD UNIVERSAL CHARGER 57688
Supported battery types
- Ni-MH batteries
Supported battery sizes
R6 / AA(1-4 akumulatory),R03 / AAA(1-4 akumulatory),R14/C,R20/D,6F22/HR22/9V(1 akumulator)
Input voltage
- AC 100-240V, 50-60Hz
Charging method
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
Charging current in CC (main) phase [mA]
- AAA 200 mA +/- 10%
- AA 450 mA +/- 10%
- C 450 mA +/- 10%
- D 450 mA +/- 10%
- 9V 34 mA +/- 10%
- 5V USB 2400 mA +/- 10%
Other important product features
- USB Function - Out
- Charges AA/AAA/R14/R20/9V batteries and a USB device at the same time
Security
- Microprocessor with ∆V (dV) control
- Against overload / short circuit
- Detection of damaged and alkaline cells
- Timer
Charger operating modes
- Charge
Features of LCD Display
- Charge level for each channel
Contents
- Charger
Warranty [miesiące]
36
Approximate charging times
- 4 x AA 1600 mAh rechargeable batteries - 4 hours
Markings / certificates
Ce
