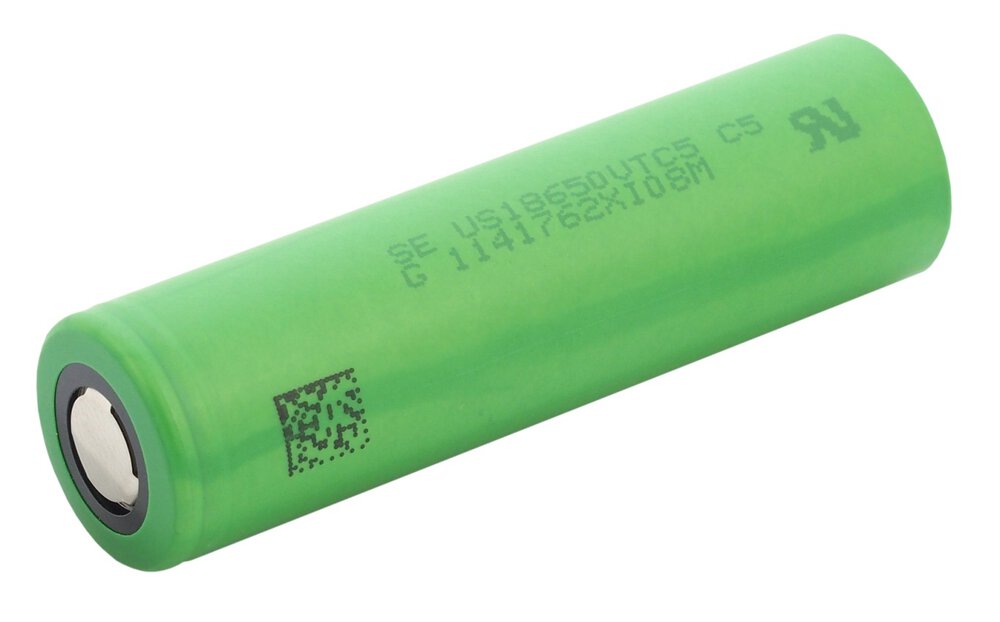

Unprotected, original battery 18650 Li-ion Sony/MURATA US18650VTC5 with high maximum discharge Current-20a. When using additional thermal protection (e.g. on the device side), the battery can be discharged with a continuous current of 30A.
The battery sold does not have electronic protection against overcharging and deep discharge.
Precautions:
• To charge the battery, use a high-quality charger with a cut-off charge at a voltage of not more than 4, 2V.
• Do not allow the battery to discharge below the voltage of 2, 5V
• Do not discharge the battery with currents higher than those specified in the specifications
• Do not charge the battery with currents higher than those specified in the specifications
• Do not short-circuit the battery
• Do not carry with metal parts (short-circuit and burns risk)
• Do not allow the battery to overheat above the temperatures provided by the manufacturer
• Do not use batteries with a defective cover/foil
• Do not use batteries with damaged or indented housing
• Do not allow contact with water or other liquids
• Do not solder the blades or wires using an ordinary soldering iron
Cell Data Sheet.
| Product data | |
| Link model | Sony/Murata US18650VTC5 |
| Nominal voltage | 3, 6V |
| Capacity | Typical: 2600mAh Minimum: 2500mAh |
| Charging | Maximum: 2500mA |
| Maximum discharge current | Continuous: 20A (without thermal protection) Continuous: 30A only with thermal protection 80 °c |
| Maximum charging voltage | 4, 2V |
| Minimum cut-off voltage | 2, 5V |
| Dimensions | Diameter 18, 35mm, Height: 65, 20mm |
| Weight | 44g |
- 20,00(bez zabezpieczenia termicznego)
- 30,00(wyłącznie przy zastosowaniu zabezpieczenia termicznego 80°C)
- 4,20
- 20,00(bez zabezpieczenia termicznego)
- 30,00(wyłącznie przy zastosowaniu zabezpieczenia termicznego 80°C)
- 4,20
