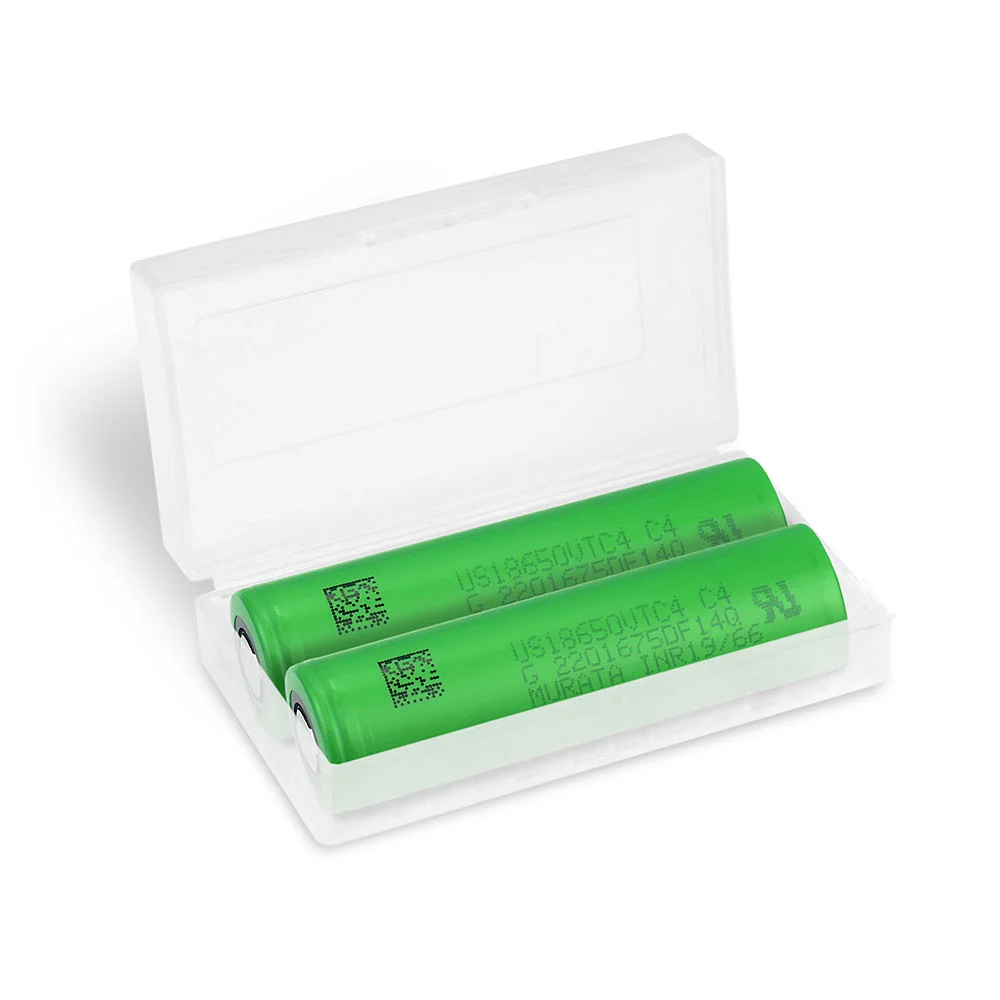

Unprotected, original Li-ion 18650 Sony/MURATA US18650VTC4 with high maximum discharge Current-30a.
The battery does not have electronic protection against overcharging and deep discharge.
Precautions:
- To charge the battery, use a high-quality charger with a cut-off charge at a voltage of not more than 4, 2V
- Do not allow the battery to discharge below the voltage of 2, 5V
- Do not discharge the battery with currents higher than those specified in the specifications
- Do not charge the battery with currents higher than those specified in the specifications
- Do not short-circuit the battery
- Do not carry with metal parts (short-circuit and burns risk)
- Do not allow the battery to overheat above the temperatures provided by the manufacturer
- Do not use batteries with defective cover/foil
- Do not use batteries with damaged or indented housing.
- Do not allow contact with water or other liquids
- Do not solder the blades or wires using an ordinary soldering iron
| Make and model links | Sony/Murata US18650VTC4 |
| Nominal voltage | 3.7 V |
| Capacity | Typical: 2100mAh, Minimum: 2000mAh |
| Charging | Up to 10A |
| Maximum discharge current | Continuous: 30A |
| Maximum charging voltage | 4, 2V |
| Minimum cut-off voltage | 2, 5V |
| Dimensions | Diameter: 18, 2mm, Height: 65mm |
| Weight | 46g |
Product features Rechargeable battery 18650 Li-ion 2100 mAh Sony/Murata US18650VTC4
Model / Manufacturer Code
Murata / US18650VTC4
Nominal Voltage [V]
3,70
Battery capacity [mAh]
2100
Minimum capacity [mAh]
2000
Charging [A]
b.d.
Maximum recommended charging current [A]
2,000
Maximum Discharge Current (Continuous) [A]
- 30,00
Maximum Charging Voltage [V]
- 4,20
Minimum cut-off voltage [V]
2,50
Current protection tripping threshold [A]
b.d.
Diameter [mm]
18,2
Height [mm]
65
Mass [g / szt.]
46,0
Product features Rechargeable battery 18650 Li-ion 2100 mAh Sony/Murata US18650VTC4
Model / Manufacturer Code
Murata / US18650VTC4
Nominal Voltage [V]
3,70
Battery capacity [mAh]
2100
Minimum capacity [mAh]
2000
Charging [A]
b.d.
Maximum recommended charging current [A]
2,000
Maximum Discharge Current (Continuous) [A]
- 30,00
Maximum Charging Voltage [V]
- 4,20
Minimum cut-off voltage [V]
2,50
Current protection tripping threshold [A]
b.d.
Diameter [mm]
18,2
Height [mm]
65
Mass [g / szt.]
46,0
