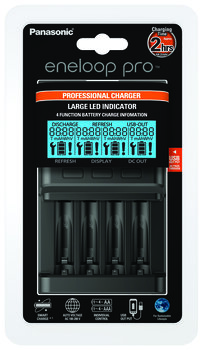

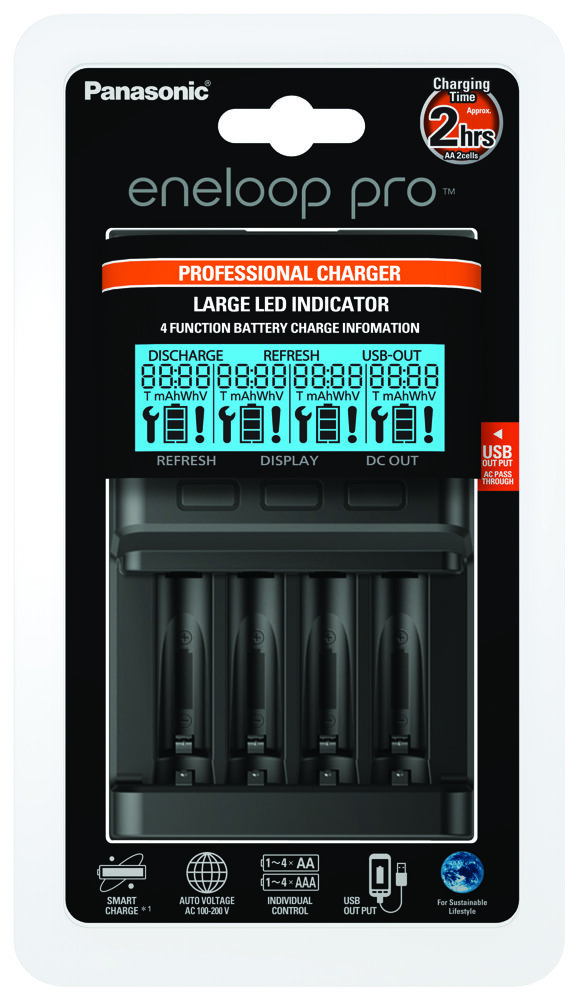

Panasonic Eneloop Charger BQ-CC65
Flagship Eneloop charger with LCD screen
• Display of battery status on LCD display• Display of capacitance, voltage, time and Wh
• Refresh mode (unload)
• Charge mobile devices via USB Port
Processor Ni-MH; 4xR6/AA, R03/AAA;
• 4 Independent charging channels
The BQ-CC65 microprocessor charger is designed to charge eneloop or NiMH rechargeable batteries of type R6/AA or R03/AAA. You can charge 1, 2, 3 or 4 rechargeable batteries at the same time.
The BQ-CC65 is a fast and perfectly crafted microprocessor-controlled charger.
It is designed for a demanding user.
The charging progress and its termination is controlled by the Smart Charge function, which automatically checks the voltage and temperature of the batteries. The charger has an LCD display that signals the charging process.
Technical data
• Charger designed for charging NiMH batteries of type R6/AA and R03/AAA
• Can charge 1, 2, 3 or 4 R6/AA or R03/AAA batteries at the same time
• Input voltage: AC 100-240V, 50/60Hz
• Microprocessor that controls the charging of batteries
• Charging indicator-LED display
• Size (L x W x D): 14.7 x 8.8 x 4 cm
• Weight: approx. 209 g
Example of battery charging time
Eneloop AA 2000 mAh-1.5 H for 1-2 rechargeable batteries or 3 hours for 3-4 rechargeable batteries
Eneloop AAA 800 mAh-1.5 h for 1-2 rechargeable batteries or 3 hours for 3-4 rechargeable batteries
Eneloop AA 2500 mAh-2 h for 1-2 rechargeable batteries or 4 hours for 3-4 rechargeable batteries
Eneloop AAA 950 mAh-2 h for 1-2 rechargeable batteries or 4 hours for 3-4 rechargeable batteries
Product features Panasonic Eneloop Charger BQ-CC65
Producer
Panasonic
Model / Manufacturer Code
Eneloop BQ-CC65
Supported battery types
- Ni-MH batteries
Supported battery sizes
R6 / AA,R03 / AAA1 - 4 akumulatorki
Input voltage
- AC 100-240V, 50-60Hz
Charging method
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
Charging current in CC (main) phase [mA]
- DC 5V 1A via USB socket
- DC 1.5V 4x750 mA (AA) or 4x275 mA (AAA)
Charger operating modes
- Charge
- Discharge
Other important product features
- Fast charging
- Independent charging channels
- Possibility to charge the phone via USB output
Features of LCD Display
- Battery capacity status
- End of Life Warnings
- Detection of incompatible batteries
- Maintenance Mode Information
- Discharge function including battery status
Dimensions (W x D x H) [mm]
86 x 144 x 40
Mass [g / szt.]
225,0
Warranty [miesiące]
24
Approximate charging times
- Eneloop AA 2000 mAh - 1.5 h for 1-2 batteries or 3 hours for 3-4 batteries
- Eneloop AAA 800 mAh - 1.5 h for 1-2 rechargeable batteries or 3 hours for 3-4 rechargeable batteries
- Eneloop AA 2500 mAh - 2 hours for 1-2 batteries or 4 hours for 3-4 batteries
- Eneloop AAA 950 mAh - 2 hours for 1-2 batteries or 4 hours for 3-4 batteries
Markings / certificates
Ce
Product features Panasonic Eneloop Charger BQ-CC65
Producer
Panasonic
Model / Manufacturer Code
Eneloop BQ-CC65
Supported battery types
- Ni-MH batteries
Supported battery sizes
R6 / AA,R03 / AAA1 - 4 akumulatorki
Input voltage
- AC 100-240V, 50-60Hz
Charging method
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
Charging current in CC (main) phase [mA]
- DC 5V 1A via USB socket
- DC 1.5V 4x750 mA (AA) or 4x275 mA (AAA)
Charger operating modes
- Charge
- Discharge
Other important product features
- Fast charging
- Independent charging channels
- Possibility to charge the phone via USB output
Features of LCD Display
- Battery capacity status
- End of Life Warnings
- Detection of incompatible batteries
- Maintenance Mode Information
- Discharge function including battery status
Dimensions (W x D x H) [mm]
86 x 144 x 40
Mass [g / szt.]
225,0
Warranty [miesiące]
24
Approximate charging times
- Eneloop AA 2000 mAh - 1.5 h for 1-2 batteries or 3 hours for 3-4 batteries
- Eneloop AAA 800 mAh - 1.5 h for 1-2 rechargeable batteries or 3 hours for 3-4 rechargeable batteries
- Eneloop AA 2500 mAh - 2 hours for 1-2 batteries or 4 hours for 3-4 batteries
- Eneloop AAA 950 mAh - 2 hours for 1-2 batteries or 4 hours for 3-4 batteries
Markings / certificates
Ce
