Ni-MH Battery Charger Panasonic Eneloop BQ-CC55

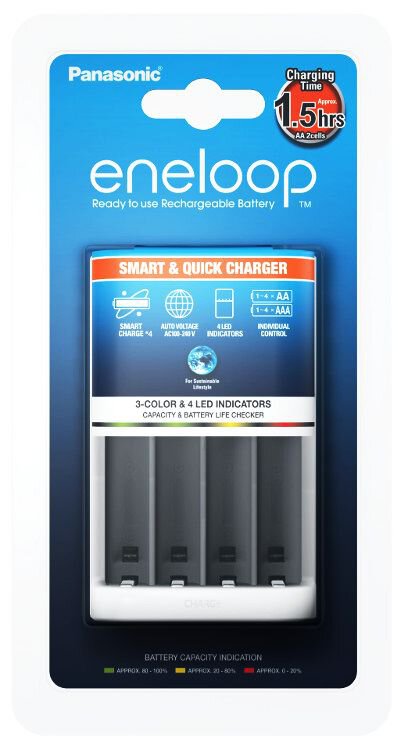

Panasonic Eneloop BQ-CC55 Charger

The Panasonic Eneloop BQ-CC55 charger is a improved version of the Panasonic Eneloop BQ-CC16.

The new version features several enhancements including a changed LED indicator - the charger indicates the charging progress with LED lights (red: 0-20%, yellow: 20-80%, green: 80-99%, after full charge the LEDs turn off).

Additionally, the charger signals a potential problem with the battery through yellow LED blinks. A blinking red LED indicates a charging error (incorrect batteries).

Moreover, the charging current has been changed, significantly speeding up the charging process.

Technical Specifications

• charger designed for charging NiMH batteries of type R6/AA and R03/AAA
• can charge 1, 2, 3, or 4 R6/AA or R03/AAA batteries simultaneously
• input voltage: AC 100-240V, 50/60Hz
• three LED indicators
• microprocessor controlling battery charging
• charging indicator in the form of 3 LED lights
• size (l x w x d): 105 x 65 x 75 mm
• weight: approx. 115 g

The microprocessor charger BQ-CC55 is designed for charging eneloop batteries or NiMH batteries of type R6/AA or R03/AAA. It can charge 1, 2, 3, or 4 batteries simultaneously.

BQ-CC55 is a fast and excellently made microprocessor-controlled charger.
It is intended for demanding users.
The charger has 4 separate charging channels.
The charging progress and its completion are controlled by the Smart Charge function, which automatically checks the voltage and temperature of the batteries. The charger has four LEDs indicating the charging process.

Example charging times for batteries:

• Eneloop AA 2000 mAh - 3 h
• Eneloop AAA 800 mAh - 3 h
• NiMH AA 2500 mAh - 4 h
