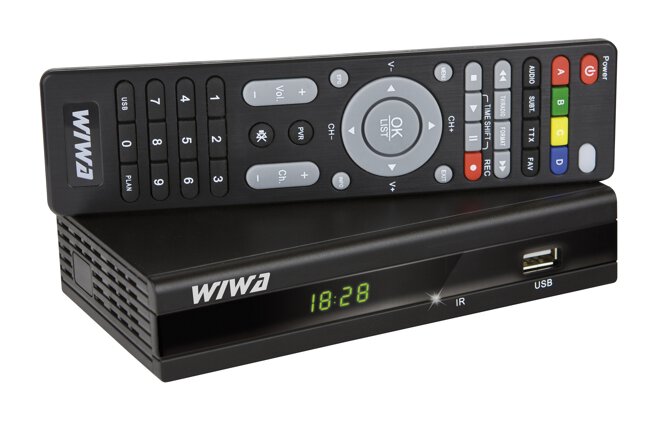

DVB-T receiver WIWA HD158 - the latest model based on the modern MSTAR MSD7801 processor - stationary, high-class, digital TV tuner with PVR recorder and FullHD media player function.
Leading manufacturer in the field of TV tuners
The HD158 is the latest design from the manufacturer of WIWA/KORR tuners.
The new model is primarily a new, faster processor, support for more multimedia files.
Excellent MPEG-4 STB decoder with a very sensitive head.The new model is primarily a new, faster processor, support for more multimedia files.
It allows you to watch the following programs (depending on your location) in excellent quality:
5 in 1
music player, movie player (DIVX/HD), photo viewer, DVB-T digital tuner, PVR recorder with programmer.
Possibilities:
- smaller housing size,
- new, extensive and clear MENU,
- the ability to record two programs at the same time and watch the third one (within the same multiplex),
- better support for TXT subtitles in videos from a USB player, support for VOBSUB graphic subtitles - new,
- Increased A/V codec support - including VC-1 codec (up to 1080p) and FLAC music files
Key features:
- USB connector located on the front of the device - quick and convenient access,
- LED display on the front panel, forming the currently watched channel or the current time (in standby mode)
- High Definition Reception
- PAL upscaling to 720p or 1080p
- Support for 8 programmable timers
- Dolby Digital Plus (EAC3) audio support - NOTE: this may soon be a requirement for DVB-T programs broadcast in Poland - according to the official guidelines of the Ministry of Infrastructure
- Quick channel search function
- Teletext and subtitle support
- Supports MPEG-2, MPEG-4, MPEG-4 AVC/H.264
- Receiver compatible with DVB-T systems
In addition to the functionality of a DVB-T digital tuner, it works well as a multimedia player for many audio, video or photo file formats.
It supports multiple formats - including videos in FullHD (1080p/1080i) formats.

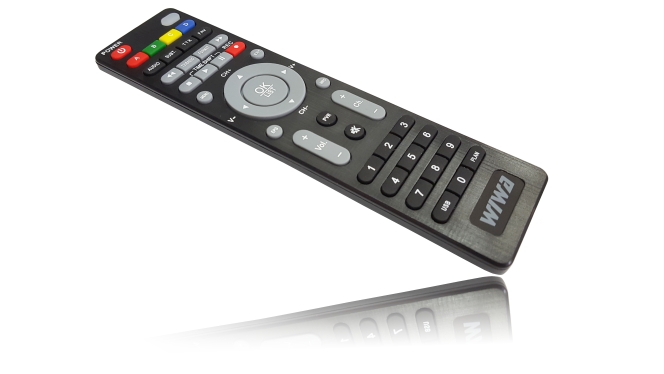

The whole thing is operated by a neat, elegantly made, legible remote control - a convenient remote control is a rarity in this price range.
The current list of digital TV transmitters in Poland can be found at:
https://radiopolska.pl/wykaz/polskadv.php
More information, coverage maps and schedule of implementation of DVB-T television in Poland can be found at:
https://www.emitel.pl/telewizja/naziemna-telewizja-cyfrowa-dvb-t
USE:
- reception of digital DVB-T TV (also HD up to 1080i) from terrestrial transmitters - available for free, in many regions of Polish, offers higher quality than popular cable TVs;
- PVR recorder - the ability to program the recording of any program, at any time - your favorite program will be recorded on a USB stick (flash drive or hard drive);
- media player - via USB connector - using a USB drive (support for capacity up to 2TB), the flash drive plays most audio and video formats, even those in the same format.FullHD 1080p;
- photo player - offers efficient and fast viewing of photos from the connected USB memory, HDMI port guarantees very high image quality.
Small, high-quality housing.
Dimensions: 155x80x30 [mm]
The advantages of digital video transmission are obvious - excellent quality, higher resolution, greater immunity to interference, etc.
- has the TimeShifting function - the image broadcast "live" can be stopped (paused) at any time, then continue watching from the moment of interruption - it is enough to connect the portable memory to the receiver.
- support for Polish subtitles from txt file (microDVD) with advanced adjustment of font color, position and size;
- the ability to update the device's firmware,
- high compatibility with many audio/video formats,
- a set of video outputs, SCART/RGB (analog), HDMI (digital), digital AUDIO COAXIAL RCA (cinch) and analog audio (2.5mm stereo jack socket).
| Specification | |
| Type of received signal | DVB-T |
| Main Processor | MSTAR MSD7018 600MHz |
| Flash | 32MB |
| Frequency range | 174-862MHz |
| Antenna Impedance Socket | 75Ohm |
| Antenna Power Supply | 5V DC max 50mA |
| Video Decoding (Tuner) | MPEG2 ISO/IEC 13818-2 MP@ML, H.264(MPEG4 part 10) main and high profile level 4.1/MPEG-2 MPEG2 ISO/IEC 13818-2 MP@ML, H.264(MPEG4 part 10) main and high profile level 4.1/MPEG-2 |
| Audio Decoding (Tuner) | MPEG-1 layerI/II, MPEG-2 layer II, MPEG-2, MPEG-4 LC 2ch/5.1chMPEG-1 layerI/II , PCM downmix , IEC958 SPDIF , Dolby 5.1 channel , Dolby downmix 2 channel , Dolby Prologic2 |
| Supported Video Files/Codecs | VC-1 (also 1080p), FLV, H.264/AVC, MKV*, TS, M2TS, MOV (also HD!), AVI, XVID, MPEG-4, MPEG-2 (DVD), MPEG HD codecs (e.g. H264) up to 1920x1088 (1080p) resolution |
| Supported Audio Files/Codecs | MP3, FLAC, OGG, AAC |
| Supported image formats | jpg and other popular formats |
| USB HOST Support | 1 slot: storage media |
| Antenna connectors | 1x Ant / RF IN (with the possibility of switching on 5V power supply), 1x Ant / RF OUT (loopback) |
1x remote control,
2x R03/AAA battery,
Manual
*MKV, TS, M2TS files are so-called containers - they can contain different combinations of audio-video streams - the player works efficiently within the codecs it supports (header compression is not recommended for MKV files)
Warranty - 24 months.
