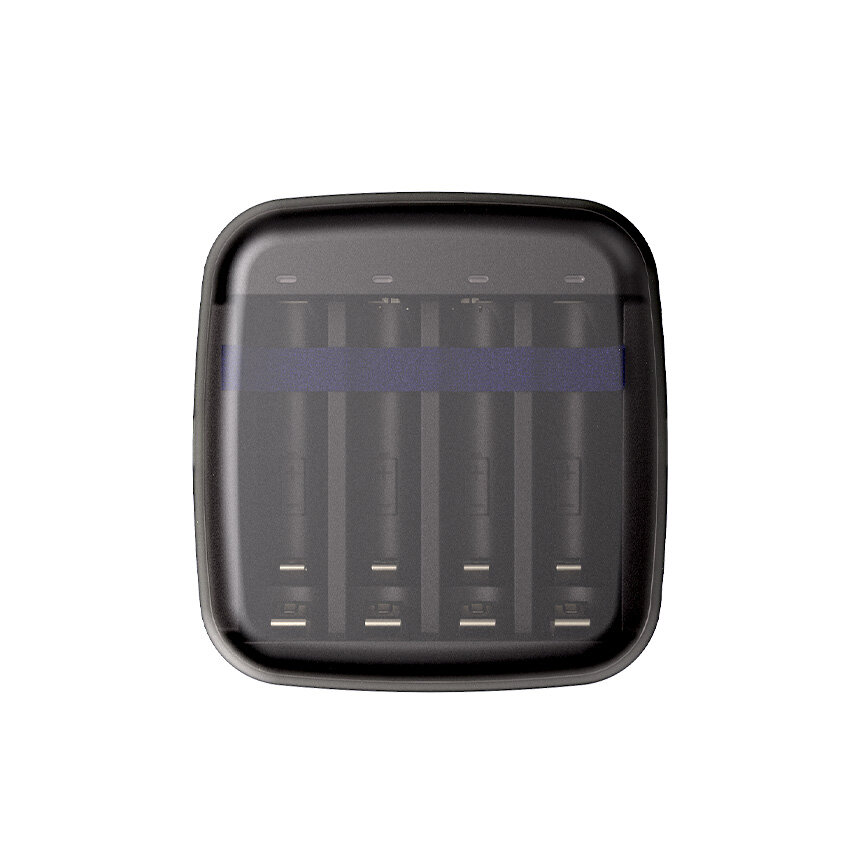

Four-channel compact processor charger
Xtar ET4S for 1.5V and NiMH Li-ion batteries
1.5V Li-ion batteries are available >>here<<
Key features
- PROCESSOR-controlled Li-ion cell charging process: CC/CV
- NiMH charging method: 0△V and -△V
- four independent charging channels
- powered by any USB charger (2A recommended)
- small dimensions - easy to carry
- protection: short-circuit, thermal, against reverse polarity
Xtar is a renowned manufacturer of high-quality chargers for Li-ion batteries, flashlights and Li-ion batteries. Xtar products are sold in more than 120 countries, including min. in the USA, Germany, Japan and Russia. For the production of chargers , Xtar uses the highest quality materials - from the plastic of the case to efficient electronics. All Xtar chargers have the CE certification required in European markets.
The Xtar ET4S charger has an advanced processor that is able to distinguish the type of battery installed in it. Thanks to this, in each charger socket we can charge any Li-ion 1.5V or Ni-Mh battery. A refined charging algorithm will ensure that the battery is always fully charged and in an optimal, safe way for a given cell chemistry.
The compact size and the lid of the charging chamber are 2 quite important advantages of the BC4 charger. Thanks to the combination of these 2 things, we get a mobile charger.
Like any Xtara charger, the ET4S is protected in every possible way. The most important security it has are:
- short-circuit
- Thermal
- against overcharging
- overcurrent
- against reverse polarity
Product features Charger for R03 / AAA and R6 / AA Li-ion 1.5V / NiMH Xtar ET4S batteries
Producer
Xtar
Model / Manufacturer Code
ET4S
Supported battery types
- Ni-MH batteries
- 1.5V Li-ion batteries protected
Supported battery sizes
R6 / AA,R03 / AAA
Input voltage
- 5V DC((500 - 2100 mA))
Maximum dimensions of the battery to be charged (width x height) [mm]
14 x 500
Charging method
- Processor-controlled CC/CV for Li-ion/Li-FePO4
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
Charging current in CC (main) phase [mA]
- 500mA
Charging Termination Voltage
- 1.5V
Security
- Before the charger overheats
- Against overload / short circuit
- Before reverse polarity of cells
Charger operating modes
- Charge
Dimensions (W x D x H) [mm]
80 x 75 x 27
Mass [g / szt.]
55,0
Contents
- ET4S charger
- MicroUSB cable
- a bow
Warranty [miesiące]
24
Markings / certificates
Ce
4x Xtar R03 / AAA 1.5V Li-ion 680mAh battery with protection (BOX)
- nominal voltage: 1.5V
- minimum capacity: 680mAh
- typical capacity: 750mAh
- protected against: discharge, overcharge, overload, short circuit
- number of charge and discharge cycles: over 1200 cycles
11,00 € gross
11,00 € net
Product features Charger for R03 / AAA and R6 / AA Li-ion 1.5V / NiMH Xtar ET4S batteries
Producer
Xtar
Model / Manufacturer Code
ET4S
Supported battery types
- Ni-MH batteries
- 1.5V Li-ion batteries protected
Supported battery sizes
R6 / AA,R03 / AAA
Input voltage
- 5V DC((500 - 2100 mA))
Maximum dimensions of the battery to be charged (width x height) [mm]
14 x 500
Charging method
- Processor-controlled CC/CV for Li-ion/Li-FePO4
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
Charging current in CC (main) phase [mA]
- 500mA
Charging Termination Voltage
- 1.5V
Security
- Before the charger overheats
- Against overload / short circuit
- Before reverse polarity of cells
Charger operating modes
- Charge
Dimensions (W x D x H) [mm]
80 x 75 x 27
Mass [g / szt.]
55,0
Contents
- ET4S charger
- MicroUSB cable
- a bow
Warranty [miesiące]
24
Markings / certificates
Ce
