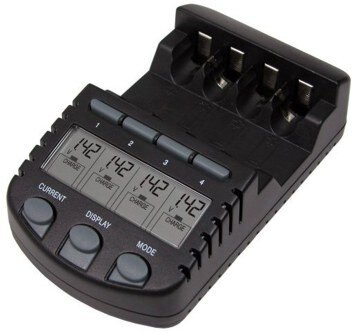

BC-700 Professional charger

BC-700 charger

A handy, aesthetic processor charger BC-700 with high quality workmanship, professional functions and intuitive operation.

The BC-700 is a processor-capable LCD charger designed for charging Ni-Cd and Ni-Mh cells of the size R6/AA or R03/AAA, with function of discharge, refresh and capacity measurement.

It has four independent channels to simultaneously charge, unload, refresh or test batteries of different sizes and capacities.

For each channel are displayed on the LCD display information about:
-Voltage
-Charging/discharge current
-Charging/unloading time
-The amount of electrical charge accumulated/discharged

A different charging current can be set for each channel:
-For AA and AAA 200 mA
-For AA and AAA 500 mA
-For AA and AAA 700 mA

You can select a different operating mode for each channel:
-Charging the
-Discharge
-Refreshing (moulding)
-Testing (capacity measurement)

OPERATING MODES:

Loading

Charging NiCd and NiMH batteries
Loading R6/AA and R03/AAA size cells
Setting the charging current of 200/500/700 mA
Individual control of each cell
Automatic transition to maintenance charge
Minus Delta V (-dV) method for full charge recognition
Control of the temperature of the load cell

Discharge

Discharge to prevent memory effect
setting of discharge current 100/250/350 mA
Automatic switching to charging with 2 times higher current

Refresh

Forming function for full capacity of new cells and improving the parameters of old, used batteries. The function works by repeatedly charging and unloading the batteries and ends automatically when the capacity stops growing.

Testing

Measuring the capacity of the batteries by fully charging and then unloading the battery. This process allows you to check what actual capacity your batteries have purchased

Technical data:
Four fully independent channels
LCD display for each channel separately information about battery voltage, current and charging/discharge time and battery capacity
Four operating modes independently for each compartment: charging, unloading, forming and testing
Recognizing defective batteries
Automatic transition to maintenance charge
Short-circuit protection and incorrect insertion of batteries
Overheat protection
Supply Voltage: 100-240V AC
Dimensions: 75 x 129 x 37 mm

Kit Contents:
Charger
Power supply
Instruction in POLISH language!!!
