everActive NC1000M v2 microprocessor charger
Compact charger - easy to use
The charger is used for charging and maintenance 1-4pcs. R03 AAA / R6 AA batteries made in Ni-MH and Ni-Cd technology.
Perfect for new generation Eneloop or Ready2Use cells.
The NC-1000M v2 is a heavily refreshed design, the younger brother of the NC-1000 Plus charger. This item is a perfect complement in the segment of professional chargers.
As with the previous model, numerous improvements have been introduced:
- even easier to use for less experienced users,
- improved charging of cells with increased internal resistance,
- Improved "Ready to Use" (LSD) battery charging
- modified discharge mode allowing to check and store the capacitance of any 1.2-1.6V cell - including alkaline and Ni-Zn cells.
Completely new in this model are:
- USB Type-C power supply - it can be powered by any smartphone charger (recommended min. 5V 2A),
- blue backlit LCD display,
- super compact design - its dimensions are only 110x99x38 [mm]
We invite you to familiarize yourself with the presentation of the everActive NC-1000M charger
(the principles of operation and operation are the same for the new version V2)

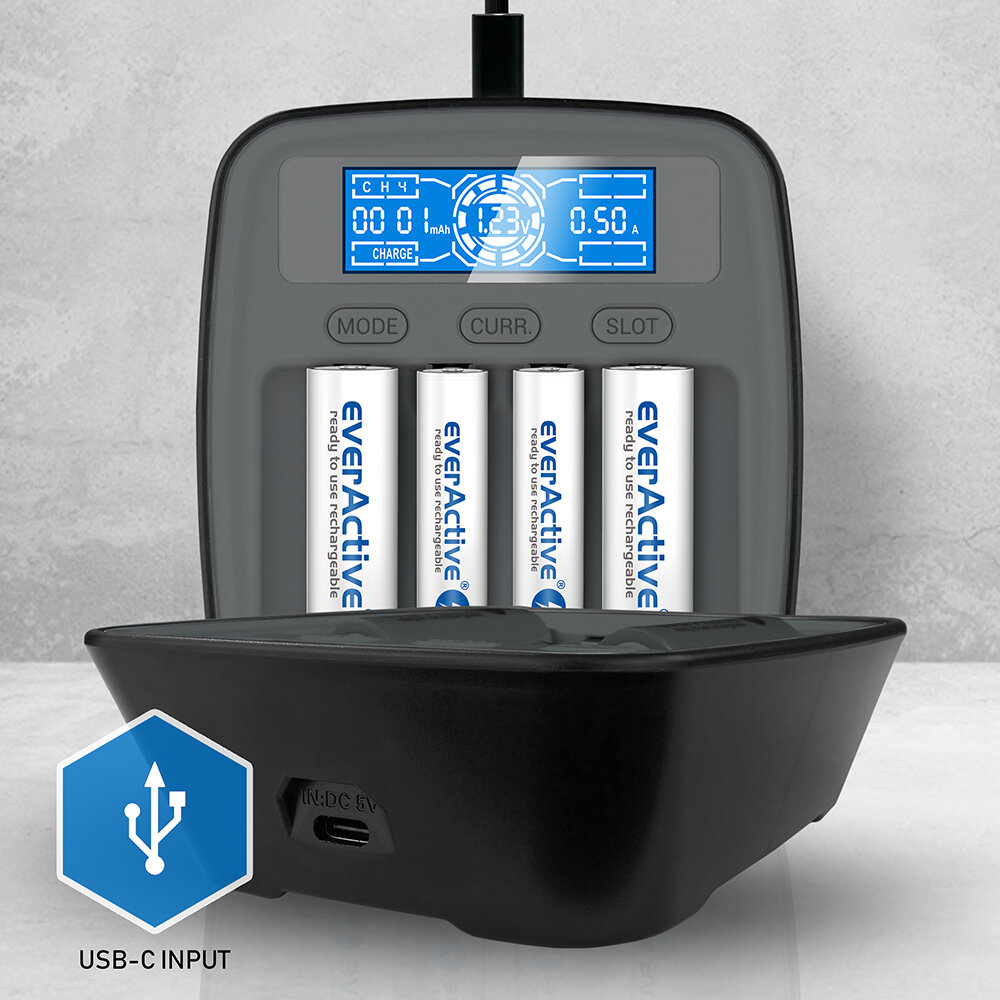

New USB-C power options
The USB Type-C input (as in a typical smartphone) means that the charger can be powered in countless ways. The charger, although it does not have a power supply included, works without any problems with most power supplies, USB chargers and factory chargers included with smartphones.
There is also nothing to prevent you from connecting the charger to a power bank, a USB output in a laptop, or a USB charger in a car - the only condition is the recommended current capacity of the USB output at 2A. If a weaker power supply is used, the charger will automatically dynamically adjust the charging current, allowing the charging process to continue. The voltage of 5V and the current of 2A of the charger allows you to achieve the power of the device of 10W, which with a large margin allows you to simultaneously charge 4 1.5V batteries with a current of 1A (requires 6W power).
For those looking for a complementary, dedicated USB power supply for the NC-1000M v2 charger, we especially recommend the everActive models - SC-200, SC-300, SC-400 or higher, which work with this design without any problems.
Key features of the NC1000M v2 charger:
- very handy and compact - the charger is sleeker than the BC-700 / BC-1000 / NC-1000 series of chargers!,
- despite the multitude of functions, the charger is very easy and intuitive to use,
- four, completely independent charging channels - possibility of charging 1-4 pcs. different batteries, different manufacturers, different capacities, different sizes,
- possibility of fully independent setting of charge/discharge current for each channel,
- possible adjustment of charging current: 250-500-750-1000 mA for 1-4 pcs. R03 AAA / R6 AA batteries;
The voltage of 5V and the current of 2A of the charger allows you to achieve the power of the device of 10W, which with a large margin allows you to simultaneously charge 4 1.5V batteries with a current of 1A (requires 6W power);
- possible regulation of discharge current: 250-500 mA,
- universal 5V DC/2A USB-C input (power supply not included, only 50cm long cable included),
- multifunctional, backlit LCD display, showing the current state of charge (voltage), charging time, charging current, counted mAh capacity for the selected cell,
- four programs of the charger's operation: CYCLE - refresh / forming with capacity measurement, CHARGE - charge, DISCHARGE - discharge - measurement of remaining capacity, TEST - capacity testing,
Set contents:
- NC1000M v2 charger packed in original carton,
- USB Type-C cable with a length of 50cm,
- complete, detailed user manual PL/EN/DE.
The standard set does not include a USB power adapter and rechargeable batteries.
- Ni-MH batteries
- Ni-CD batteries
- 5V DC / 2A / USB-C(brak zasilacza w komplecie)
- 250
- 500
- 750
- 1000
- 250
- 500
- Very accurate workmanship of the charger
- 3 function buttons
- SMD microswitch-based buttons with increased sensitivity (better response) and service life
- Microprocessor with ∆V (dV) control
- Thermal - before overheating of batteries
- Against overload / short circuit
- Detection of damaged and alkaline cells
- Charge
- Discharge
- Refresh/Cycle
- Capacity measurement in mAh (Test)
- Multi-segment
- It shows the operating parameters of each charging chamber: charging time, working mode, charge/discharge current, counted mAh (capacity), voltage.
- The charger NC1000M packed in the original carton, 50 cm USB A-USB C cable, detailed user manual PL/EN/DE.
- 1-4pcs R03 800mAh - 60mins
- 1-4pcs R03 1000mAh - 70 minutes
- 1-4pcs R6 2000mAh - 140mins
- 1-4pcs R6 2500mAh - 180mins
