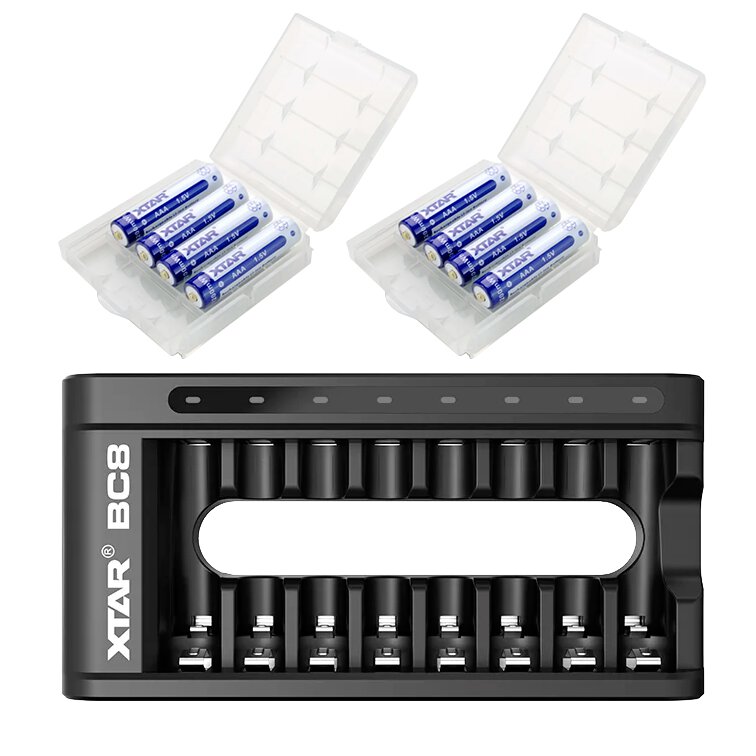

Pack of 8 R03 Xtar 680mAh Rechargeable Batteries + BC8 Battery Charger
The set includes:
Battery charger for R03 / AAA and R6 / AA Li-ion 1.5V / NiMH Xtar BC8 batteries
8x Xtar R03 / AAA 1.5V Li-ion 680mAh rechargeable batteries with protection (BOX)
Charger for R03 / AAA and R6 / AA Li-ion 1.5V / NiMH Xtar BC8 batteries
Professional eight-channel processor charger
Xtar BC8 for 1.5V and NiMH Li-ion batteries
1.5V Li-ion batteries are available >>here<<
Key features
- CPU-controlled Li-ion cell charging process: TC/CC/CV
- NiMH charging method: 0△V and -△V
- eight independent charging channels
- Powered by USB Type C - QC 3.0
- protection: overcurrent, over-voltage, short-circuit, over-charge, overload, thermal
The Xtar BC8 charger has an advanced processor that is able to distinguish the type of battery installed in it. Thanks to this, in each charger socket we can charge any Li-ion 1.5V or Ni-Mh battery. A refined charging algorithm will ensure that the battery is always fully charged and in an optimal, safe way for a given cell chemistry.
BC8 has 8 independent channels and is able to charge each channel with 500mA current. The notch under the ducts has a positive effect on the temperature of the charged batteries and makes it much easier to remove the batteries! Using BC8 is pure pleasure.
Reactivation of over-discharged batteries
BC8 can resurrect over-discharged batteries - even those with a voltage of 0V. Xtar was the first to present this unique functionality in a typical consumer application. Previously, 0V cell reactivation was only available in highly advanced professional equipment.
BC8 charges Li-ion batteries with TC/CC/CV charging method? It is a three-stage charging process for Li-ion cells to ensure that the cell is kept in good condition by charging with the right current at each stage and completing the charging process at the right time.
The individual stages of the TC/CC/CV process are:
- TC phase: cells discharged below 2.9V are 'woken up' with a lower current.
- CC phase: after reaching 2.9V, the cell is charged with a constant current of 0.5A (depending on the power source used and the number of batteries charged).
- CV phase: when the cell is almost charged, the charger switches to charging with a decreasing current until a voltage of 4.2V is reached on the cell. When 4.2V is reached, the charging process is completed - the battery is fully charged.
Like any Xtara charger, the BC8 is protected in every possible way. The most important security it has are:
- overcurrent
- against too high voltage
- short-circuit
- against overcharging
- Overload
- Thermal
- Ni-MH batteries
- 1.5V Li-ion batteries protected
- QC 3.0 (5V/2A | 9V/2A) - USB Type-C Socket((500 - 2100 mA))
- Processor-controlled TC/CC/CV for Li-ion
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
- 500mA
- 1.5V
- Before the charger overheats
- Against overload / short circuit
- Overload
- Before reloading
- Charge
- BC8 Charger
- USB Type-C Cable
Xtar R03 / AAA 1.5V Li-ion 680mAh battery with protection (BOX) - 4 pieces
The XTAR battery in size AAA / R03 is the perfect combination of the best features of an alkaline battery and Ni-MH rechargeable batteries.
COMPATIBLE CHARGERS ARE XTAR BC4 / L4 / BC8 / ET4S
These include:
- higher rated voltage - 1.5V (Ni-MH has only 1.2V)
Some devices, e.g. blood pressure monitors, unfortunately work much shorter on Ni-MH batteries due to lower voltage. On alkaline batteries, on the other hand, they last much longer. - constant voltage at all times
The voltage on this battery from the very beginning to the end will be 1.5V. Thanks to this, e.g. in flashlights, we will be able to enjoy the full power of light all the time. - a large number of cycles - over 1200!
Xtar used the highest quality cell with a protection circuit, which allowed for a large number of charge/discharge cycles with minimal battery degradation effect.
- no memory effect
Li-ion batteries are completely devoid of memory effect. This allows you to charge them at any time. - no self-discharge effect
Unlike some Ni-MH batteries, the Xtar's battery can sit unused for a long time without losing its capacity/energy charge. - high current efficiency
The Xtar battery is able to give off up to 1.5A of current!
- 1,5
- 1,50
- Ni-MH batteries
- 1.5V Li-ion batteries protected
- QC 3.0 (5V/2A | 9V/2A) - USB Type-C Socket((500 - 2100 mA))
- Processor-controlled TC/CC/CV for Li-ion
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
- 500mA
- 1.5V
- Before the charger overheats
- Against overload / short circuit
- Overload
- Before reloading
- Charge
- BC8 Charger
- USB Type-C Cable
- 1,5
- 1,50
