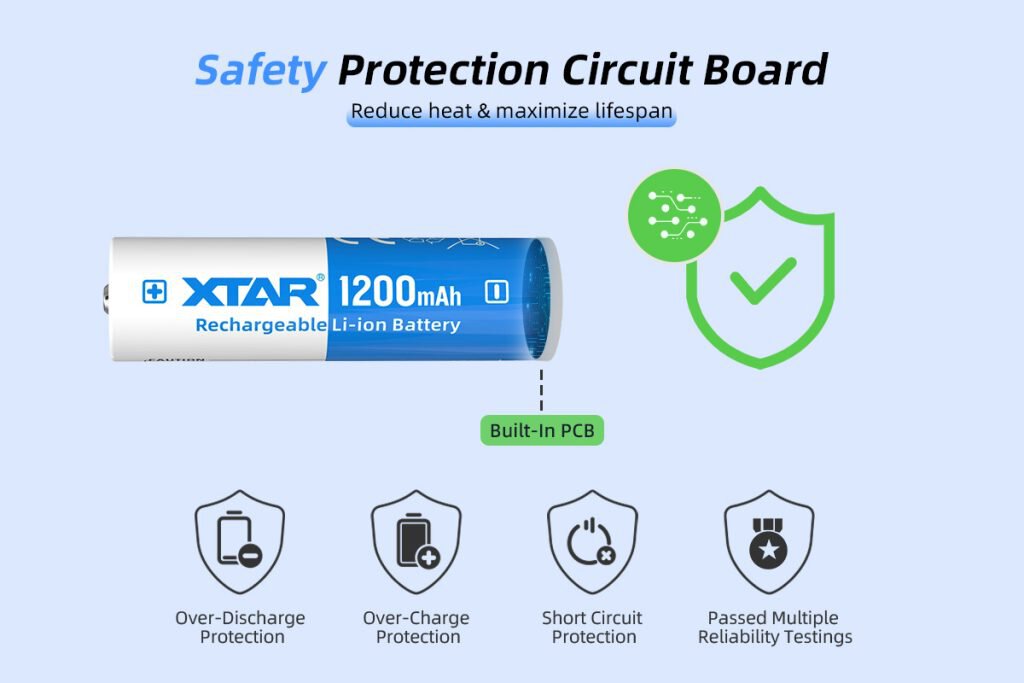

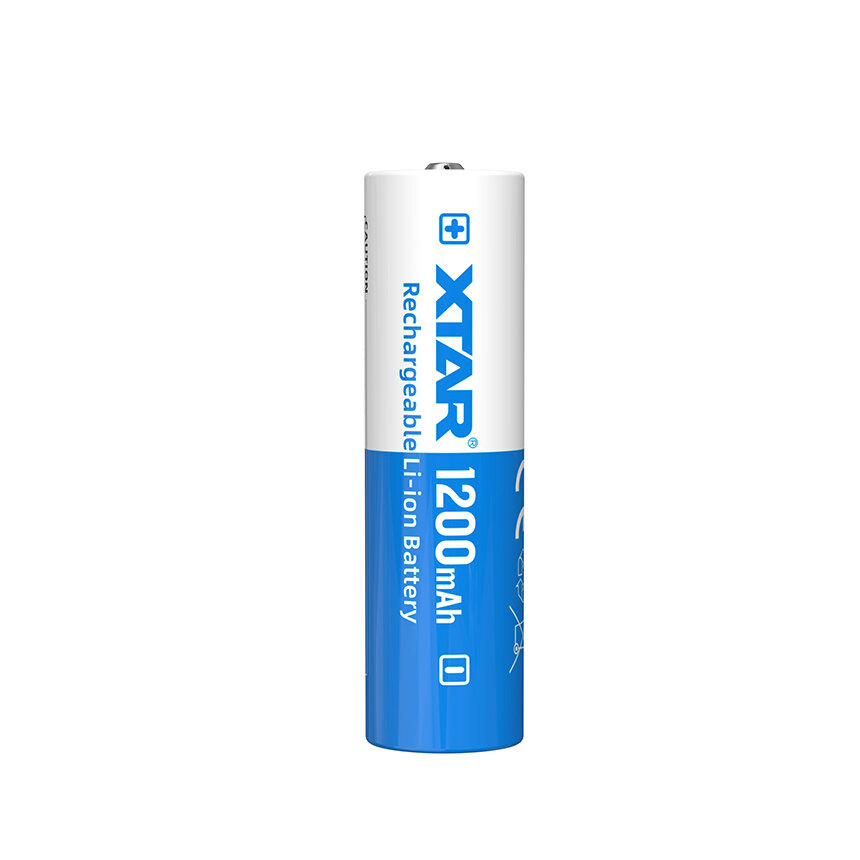

Xtar 14500 lithium-ion battery with a capacity of 1200mAh. Electronically protected against overcharge, over-discharge, overload and short circuit.








The product is CE marked.
Product features Xtar 14500 / AA / R6 3.7V Li-ion 1200mAh battery with protection
Model / Manufacturer Code
Xtar 14500
Nominal Voltage [V]
3,70
Battery capacity [mAh]
1200
Maximum recommended charging current [A]
0,500
Maximum Discharge Current (Continuous) [A]
- 2,00
Maximum Charging Voltage [V]
- 4,20
Current protection tripping threshold [A]
2,50
Diameter [mm]
14,3
Height [mm]
50,5
