Wire Detector UT25CL UNI-T

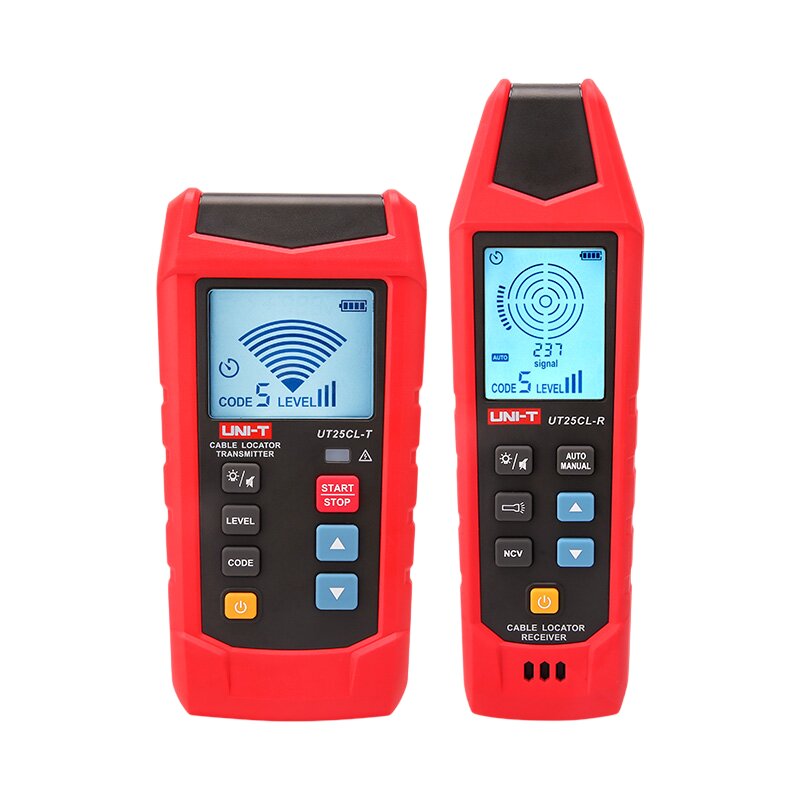

Uni-T UT25CL is a professional wire locator and pair finder, consisting of a transmitter and receiver, designed for non-invasive tracking of electrical installations. The device allows for locating wires in walls, floors, and underground, as well as detecting breaks and shorts in the installation. UT25CL also enables tracking of live wires, locating fuses, and identifying metal water and heating pipes, making it suitable for diagnostics, installation, and service work.

The receiver enables non-contact detection of AC voltage in the range of 80–1000 V and locating wires at a depth depending on the selected mode and signal level. In the single-pole mode, the search depth is up to 2.5 m, while in the dual-pole mode it is up to 0.5 m. Sensitivity and volume adjustment in 3 levels allows you to adapt the device's operation to the surrounding conditions. The UT25CL also has a transmitter identification function, a flashlight, and screen backlighting. The protection degree CAT III 480 V and the IP54 rated housing ensure an appropriate level of safety when working in demanding conditions.
