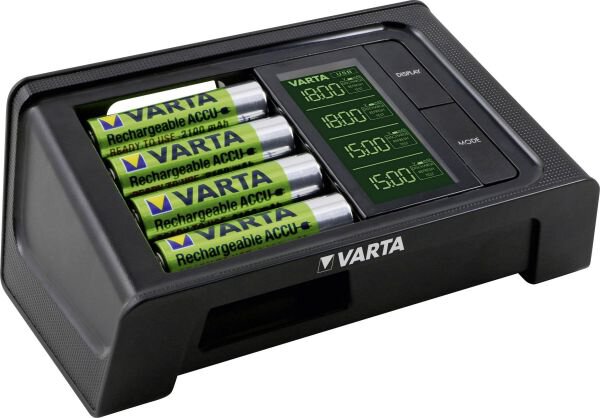

SMART CHARGER 57674 Processor charger
4 Independent charging channels
USB Port for charging devices
Charger Description:
Very good price/quality ratio
4 functions: Charging, unloading, capacity test and refreshing
Equipped with an additional USB port for simultaneous charging of devices powered by 5V voltage
It has numerous safety features
Single charge up to 4 AA/AAA
Maintenance charge
Sleek textured surface
Convenient battery Removal
Charging time 1.5 hours *
Global voltage-for worldwide use (100-240V)
3-Year Warranty
Available with 4x AA 2100 mAh Ready To Use Batteries
* Based on 2xAA 1600 mAh
Advantages of the Charger:
Independent charging channels
-Allows charging of different number and combination of rechargeable batteries.
Maintenance charge
-Prevents the natural self-discharge of rechargeable batteries.
Minus Delta V method
A method using the fact that the voltage on the loaded cell is lowered slightly (-Delta V) as soon as it is fully charged and the charging process is completed.
USB-Out function (output)
-Charge your device using the USB-Out port.
Detecting alkaline batteries and broken batteries
-Includes criteria for switching off the charger to prevent the charging of primary batteries, defective battery packs with reverse poloryzation.
Adapts to different types of voltages
-For use in all parts of the world
Timer
-The Timer turns off the device after a certain period of time, regardless of the charging status.
Technical Specifications:
Battery sizes: AAA, AA
Battery type: Nickel-metal hydri(NiMH)
Battery configuration:
AAA 1-4 PCs.
AA 1-4 PCs.
Charging:
AAA 1-2 AAA 800 mA +/-10%, 3-4 AAA 800 mA
AA 1-2 AA 1600 mA +/-10%, 3-4 AA 800 mA
4 Independent charging channels
USB Port for charging devices
Charger Description:
Very good price/quality ratio
4 functions: Charging, unloading, capacity test and refreshing
Equipped with an additional USB port for simultaneous charging of devices powered by 5V voltage
It has numerous safety features
Single charge up to 4 AA/AAA
Maintenance charge
Sleek textured surface
Convenient battery Removal
Charging time 1.5 hours *
Global voltage-for worldwide use (100-240V)
3-Year Warranty
Available with 4x AA 2100 mAh Ready To Use Batteries
* Based on 2xAA 1600 mAh
Advantages of the Charger:
Independent charging channels
-Allows charging of different number and combination of rechargeable batteries.
Maintenance charge
-Prevents the natural self-discharge of rechargeable batteries.
Minus Delta V method
A method using the fact that the voltage on the loaded cell is lowered slightly (-Delta V) as soon as it is fully charged and the charging process is completed.
USB-Out function (output)
-Charge your device using the USB-Out port.
Detecting alkaline batteries and broken batteries
-Includes criteria for switching off the charger to prevent the charging of primary batteries, defective battery packs with reverse poloryzation.
Adapts to different types of voltages
-For use in all parts of the world
Timer
-The Timer turns off the device after a certain period of time, regardless of the charging status.
Technical Specifications:
Battery sizes: AAA, AA
Battery type: Nickel-metal hydri(NiMH)
Battery configuration:
AAA 1-4 PCs.
AA 1-4 PCs.
Charging:
AAA 1-2 AAA 800 mA +/-10%, 3-4 AAA 800 mA
AA 1-2 AA 1600 mA +/-10%, 3-4 AA 800 mA
Product features VARTA LCD SMART Charger Charger 57674 + 4 x R6/AA 2100mAh
Producer
Varta
Model / Manufacturer Code
57674
Supported battery types
- Ni-MH batteries
Supported battery sizes
R6 / AA,R03 / AAA1 - 4 akumulatory
Input voltage
- AC 100-240V, 50-60Hz
Charging method
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
Charging current in CC (main) phase [mA]
- AAA 1-2 AAA 800 mA +/- 10%, 3-4 AAA 800 mA
- AA 1-2 AA 1600 mA +/- 10%, 3-4 AA 800 mA
Other important product features
- Independent charging channels
- Trickle charging
- USB Function - Out
- Lcd
Security
- Detection of damaged and alkaline cells
- Before reverse polarity of cells
- Thermal - before overheating of batteries
- Timer
Charger operating modes
- Charge
- Discharge
- Refresh/Cycle
- Capacity measurement in mAh (Test)
Warranty [miesiące]
36
Approximate charging times
- 1.5 hours for 2xAAA 1600mAh
Markings / certificates
Ce
Product features VARTA LCD SMART Charger Charger 57674 + 4 x R6/AA 2100mAh
Producer
Varta
Model / Manufacturer Code
57674
Supported battery types
- Ni-MH batteries
Supported battery sizes
R6 / AA,R03 / AAA1 - 4 akumulatory
Input voltage
- AC 100-240V, 50-60Hz
Charging method
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
Charging current in CC (main) phase [mA]
- AAA 1-2 AAA 800 mA +/- 10%, 3-4 AAA 800 mA
- AA 1-2 AA 1600 mA +/- 10%, 3-4 AA 800 mA
Other important product features
- Independent charging channels
- Trickle charging
- USB Function - Out
- Lcd
Security
- Detection of damaged and alkaline cells
- Before reverse polarity of cells
- Thermal - before overheating of batteries
- Timer
Charger operating modes
- Charge
- Discharge
- Refresh/Cycle
- Capacity measurement in mAh (Test)
Warranty [miesiące]
36
Approximate charging times
- 1.5 hours for 2xAAA 1600mAh
Markings / certificates
Ce
