🔬UNI-T UT216C Meter is an advanced True RMS digital clamp multimeter designed for professional applications in electrical engineering, industrial automation, data centers, IT systems, and during advanced installation work. With the ability to measure both direct and alternating current and support for signals with frequencies up to 400 Hz, it provides high accuracy and wide diagnostic capabilities.
⚡The device allows for precise measurement of alternating and direct current (AC/DC) up to 600 A. The measurement of direct voltage (DC) is performed up to 1000 V, while alternating voltage (AC) is up to 750 V. This makes the multimeter suitable for both standard installation measurements and during diagnostics of electronic systems and power electronics devices.
⬆️Model UT216C also supports a wide range of resistance measurements (up to 60 MΩ), capacitance (up to 60 mF), frequency (from 10 Hz to 1 MHz), as well as temperature in the range of -40°C to 1000°C. The device is also equipped with a diode test, continuity test with audible signal, and Inrush Current measurement function, useful for checking motors and electrical devices.

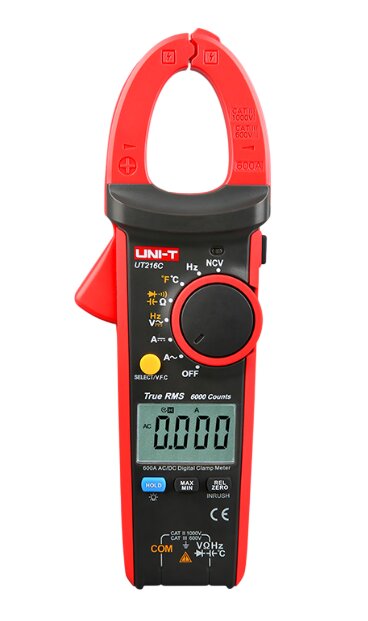

📱Thanks to the clear LCD display with a backlight of 6000 counts and an analog graphic bar consisting of 21 segments, the user can conveniently observe both measurement values and dynamic signal changes. Additionally, the device offers automatic range selection (Auto Range), a data hold function Data Hold, relative measurement Relative, minimum and maximum value recording MIN/MAX, as well as an automatic shut-off function.
📈The meter is equipped with a non-contact voltage detection function NCV, true root mean square measurement technology True RMS, and a low-pass filter V.F.C., which increases measurement accuracy in systems with frequency converters. The built-in LED flashlight makes it easier to work in poorly lit areas, and the full protection of measurement inputs enhances user safety.

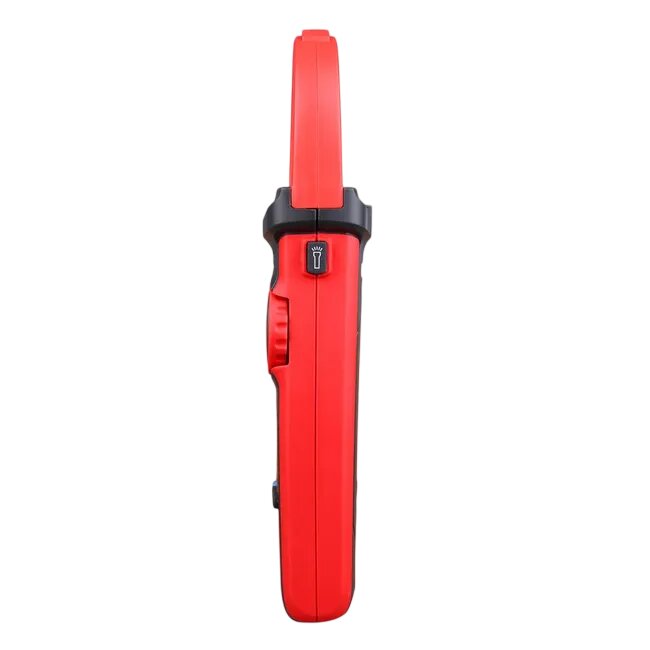

The device's construction is made using dual injection technology, ensuring high mechanical resistance and a secure grip. The measuring jaws with a maximum opening of 30 mm allow for comfortable measurements of wires with a larger cross-section.
- Multimetr UNI-T UT216C
- Measuring cables
- Batteries
- Case
- user manual
- 3 × AAA (R03) 1,5 V
- 220 × 75 × 40 mm
- 231,7(z bateriami)
- Multimetr UNI-T UT216C
- Measuring cables
- Batteries
- Case
- user manual
- 3 × AAA (R03) 1,5 V
- 220 × 75 × 40 mm
- 231,7(z bateriami)
