UT123D is an advanced automatic True RMS multimeter from Uni-T, designed for precise electrical measurements at home, in the workshop, in electronic service, and during installation work. With automatic range selection and intelligent measurement function recognition, the device is very easy to use, both for beginners and more experienced electricians or electronics technicians.
The compact design of the UT123D multimeter, measuring just 130 x 65 x 28 mm and weighing only 196 g, makes it convenient for everyday use and easy to carry. Powered by two popular R03 (AAA) batteries, the multimeter can be used practically anywhere – at home, in the car, in the workshop, or while working in the field.

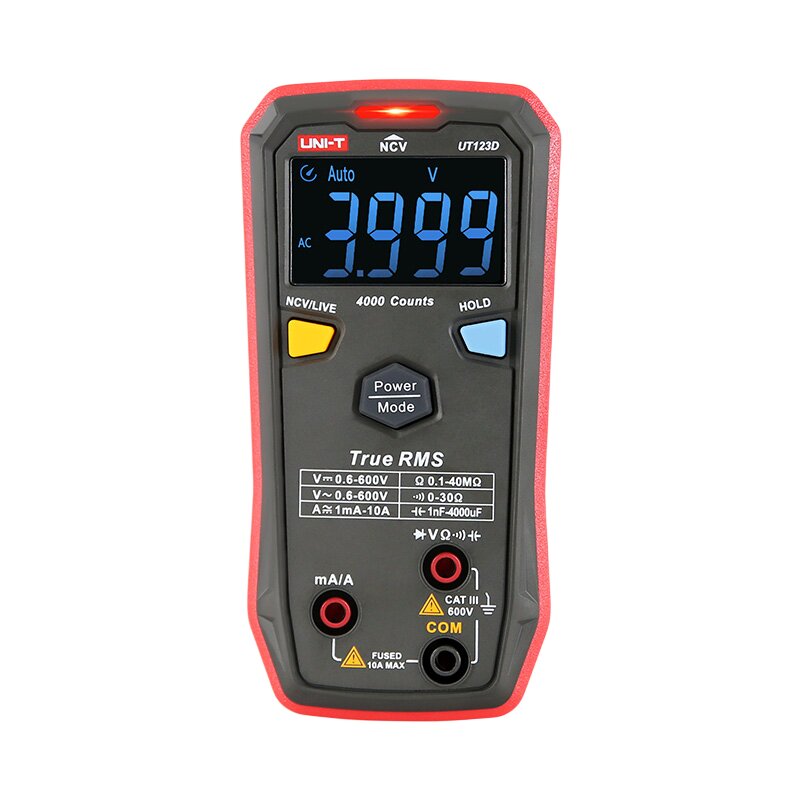

The UT123D model is equipped with a modern EBTN display measuring 44 x 26 mm, which provides very good visibility of readings. The black background and bright white characters improve the readability of measurements even in low light conditions. The maximum reading of 4099 allows for accurate presentation of measurement results.
Thanks to the True RMS measurement function, the multimeter allows for accurate measurements of AC voltage and current, even in the case of waveforms other than a perfect sine wave. This is particularly useful when working with modern electronic devices, switch-mode power supplies, and installations equipped with various types of loads.

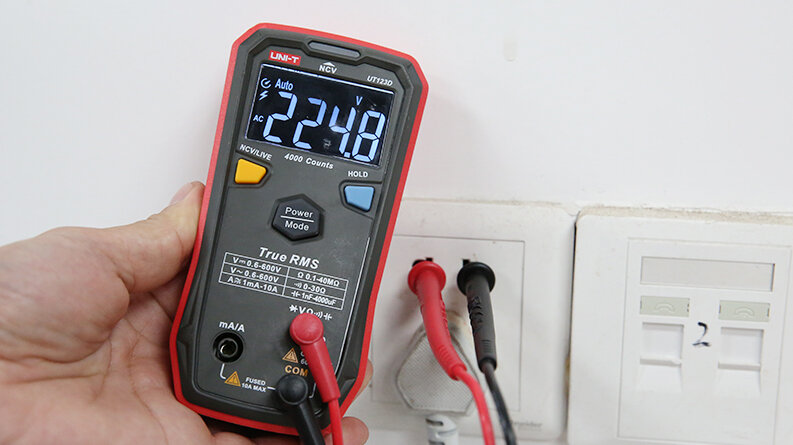

In the AC voltmeter range, the user can check the voltage present in the home electrical installation, verify the presence of voltage in the wires, and perform basic diagnostics of devices powered from the grid. The DC voltage measurement allows checking, among other things, the charge level of batteries, accumulators, and voltage in electronic and automotive systems.
The meter also allows for measuring direct and alternating current up to 10A, enabling the monitoring of power consumption of devices and performing basic measurements in electrical and electronic installations.

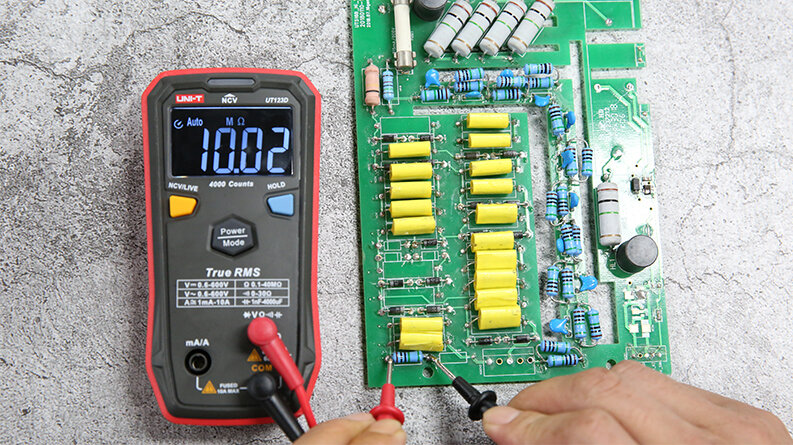

Resistance measurement function up to 40MΩ allows checking the values of resistors, wires, coils, and other electrical components. The built-in diode tester enables quick checking of semiconductor components, and the continuity tester function with audible signaling allows verifying the correctness of electrical connections, wires, fuses, and cable harnesses.

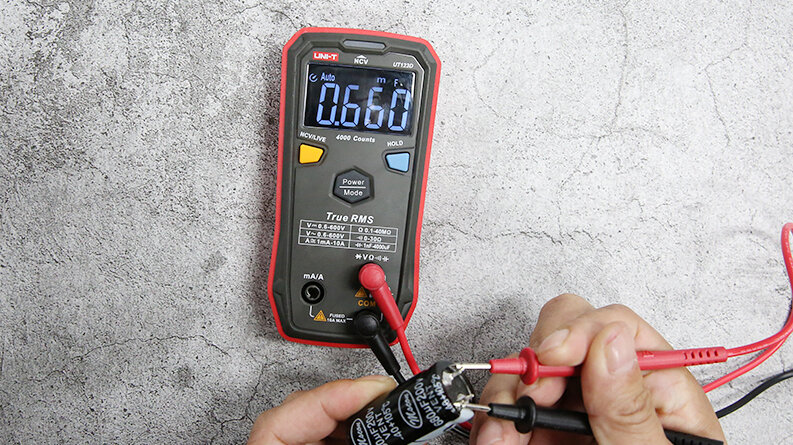

The meter also has a capacitance measurement function for capacitors up to 4000 μF, which increases its applicability during repairs and diagnostics of electronic systems.
UT123D is equipped with the NCV (Non-Contact Voltage) function, which allows for non-contact detection of the presence of AC voltage. This enables quick checking of whether there is voltage in the wire without the need to directly connect measuring probes. This function is particularly useful during installation work, for example, before drilling holes in walls when there is a risk of hitting an electrical wire.

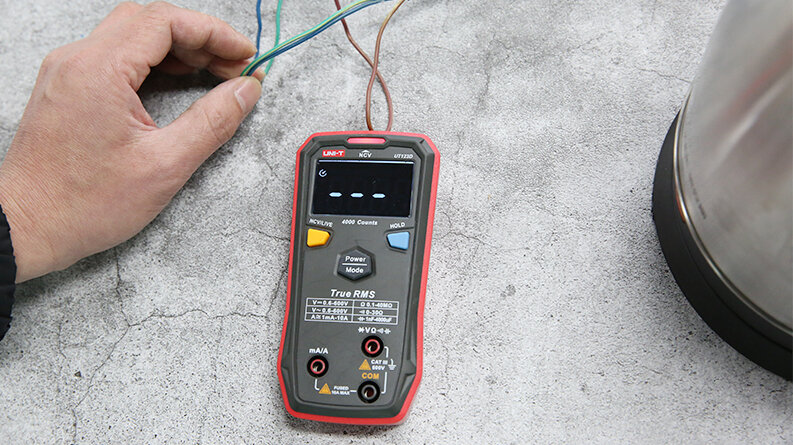

An additional convenience is the automatic detection of the voltage source and recognition of the phase and neutral (zero) wire. The meter can automatically determine the appropriate measurement function based on the connected wires to the correct measurement sockets, reducing the risk of incorrect parameter settings.
The device also features short-circuit protection, a HOLD function that allows you to freeze the measurement result on the screen, and LED indicators that inform about the activity of the NCV function, diode tester, and continuity buzzer.
UT123D multimeter by Uni-T is a combination of compact design, automatic operation, and advanced measurement capabilities. With features like automatic identification, True RMS, NCV, and a wide range of measurements, it is a practical tool for electronics technicians, electricians, service technicians, and users performing their own diagnostic work.
Technical Data:
- automatic True RMS multimeter Uni-T UT123D
- manufacturer: Uni-T
- model: UT123D
- power supply: 2 x R03 (AAA) battery (included)
- display: EBTN, white characters on a black background
- display dimensions: 44 x 26 mm
- maximum reading: 4099
- meter dimensions: 130 x 65 x 28 mm
- weight: 196 g
- automatic identification of measured value
- automatic range selection
- measurement True RMS
- NCV function – non-contact AC voltage detection
- LED NCV indicator
- diode tester
- continuity tester with audible signal
- short-circuit protection
- automatic voltage source detection
- detection of phase and neutral wire
- automatic recognition of measurement function based on wire connection
- HOLD function – freeze measurement reading
| Measurement Function | Range | Accuracy |
| AC Voltage Measurement (V) | 600V | ±(0.8%+3) |
| DC Voltage Measurement (V) | 600V | ±(0.5%+3) |
| DC Current Measurement (A) | 10A | ±(1%+3) |
| AC Current Measurement (A) | 10A | ±(1.2%+3) |
| Resistance Measurement (Ω) | 40MΩ | ±(0.8%+2) |
| Capacitance Measurement (F) | 4000μF | ±(4%+5) |
- Miernik UT123D
- set of measuring wires
- batteries 2 x 1.5V R03
- 2x AAA(w zestawie)
- 130mm x 65mm x 28mm
- 196
- Miernik UT123D
- set of measuring wires
- batteries 2 x 1.5V R03
- 2x AAA(w zestawie)
- 130mm x 65mm x 28mm
- 196
