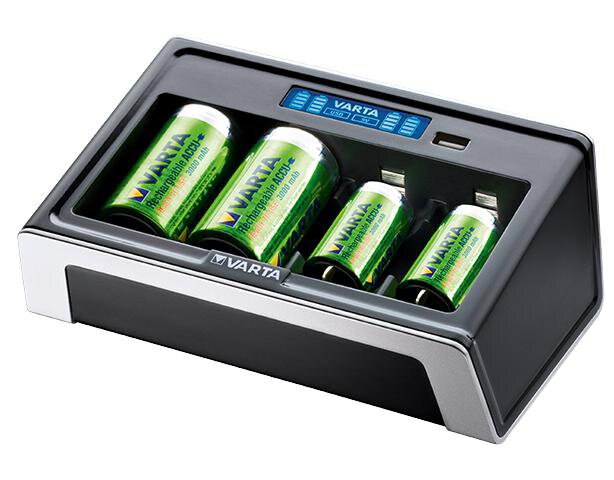

VARTA 57678 Universal Processor Charger
Charger Description:
-Versatile charger for charging all popular battery sizes
-Ergonomic and unique design
-Blue LED backlit LCD display indicates: battery level and USB cable usage
-Charges AA/AAA/C/D and 9V batteries
-Equipped with additional USB output
-Has numerous safety functions: voltage control, sleep timer, short circuit protection, alkaline battery detection
-Charging Time: 4 hours *
-3 years Warranty
-AC Adapter
* Depends on battery capacity: Based on 4 AA 1600 mAh rechargeable batteries
Advantages of the Charger:
Minus Delta V method
A method using the fact that the voltage on the loaded cell is lowered slightly (-Delta V) as soon as it is fully charged and the charging process is completed.
Protection against improper polarization
-Reverse battery protection
USB-Out function (output)
-Charge your device using the USB-Out port.
Detecting alkaline batteries and broken batteries
-Includes criteria for switching off the charger to prevent the charging of primary batteries, defective battery packs with reverse poloryzation.
Adapts to different types of voltages
-For use in all parts of the world
Technical Specifications:
Battery configuration:
AAA 2/4
AA 2/4
C 2/4
D 2/4
9V 1
Charging:
AAA 200 mA +/-10%
AA 450 mA +/-10%
C 450 mA +/-10%
D 450 mA +/-10%
9V 34 mA +/-10%
5V USB 1000 mA +/-10%
Cut-Off functions:
Mode-Delta V/Timer
Control functions:
Detecting bad polarization: mechanical
Short circuit protection: no power, information on LCD display
Charger Description:
-Versatile charger for charging all popular battery sizes
-Ergonomic and unique design
-Blue LED backlit LCD display indicates: battery level and USB cable usage
-Charges AA/AAA/C/D and 9V batteries
-Equipped with additional USB output
-Has numerous safety functions: voltage control, sleep timer, short circuit protection, alkaline battery detection
-Charging Time: 4 hours *
-3 years Warranty
-AC Adapter
* Depends on battery capacity: Based on 4 AA 1600 mAh rechargeable batteries
Advantages of the Charger:
Minus Delta V method
A method using the fact that the voltage on the loaded cell is lowered slightly (-Delta V) as soon as it is fully charged and the charging process is completed.
Protection against improper polarization
-Reverse battery protection
USB-Out function (output)
-Charge your device using the USB-Out port.
Detecting alkaline batteries and broken batteries
-Includes criteria for switching off the charger to prevent the charging of primary batteries, defective battery packs with reverse poloryzation.
Adapts to different types of voltages
-For use in all parts of the world
Technical Specifications:
Battery configuration:
AAA 2/4
AA 2/4
C 2/4
D 2/4
9V 1
Charging:
AAA 200 mA +/-10%
AA 450 mA +/-10%
C 450 mA +/-10%
D 450 mA +/-10%
9V 34 mA +/-10%
5V USB 1000 mA +/-10%
Cut-Off functions:
Mode-Delta V/Timer
Control functions:
Detecting bad polarization: mechanical
Short circuit protection: no power, information on LCD display
Product features Universal 57678 VARTA LCD UNIVERSAL charger
Producer
Varta
Model / Manufacturer Code
57678
Supported battery types
- Ni-MH batteries
Supported battery sizes
R6 / AA,R03 / AAA,R14/C,R20/D,6F22/HR22/9V2 lub 4 akumulatory (1 x 9V)
Input voltage
- AC 100-240V, 50-60Hz
Charging method
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
Charging current in CC (main) phase [mA]
- AAA 200 mA +/- 10%
- AA 450 mA +/- 10%
- C 450 mA +/- 10%
- D 450 mA +/- 10%
- 9V 34 mA +/- 10%
- 5V USB 1000 mA +/- 10%
Other important product features
- Extra USB port for charging your phone
Security
- Microprocessor with ∆V (dV) control
- Detection of damaged and alkaline cells
- Before reverse polarity of cells
- Against overload / short circuit
- Timer
Charger operating modes
- Charge
Features of LCD Display
- Battery level
- Using the USB port
Warranty [miesiące]
36
Approximate charging times
- 4 hours for 4 x AA 1600mAh rechargeable batteries
Markings / certificates
Ce
Product features Universal 57678 VARTA LCD UNIVERSAL charger
Producer
Varta
Model / Manufacturer Code
57678
Supported battery types
- Ni-MH batteries
Supported battery sizes
R6 / AA,R03 / AAA,R14/C,R20/D,6F22/HR22/9V2 lub 4 akumulatory (1 x 9V)
Input voltage
- AC 100-240V, 50-60Hz
Charging method
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
Charging current in CC (main) phase [mA]
- AAA 200 mA +/- 10%
- AA 450 mA +/- 10%
- C 450 mA +/- 10%
- D 450 mA +/- 10%
- 9V 34 mA +/- 10%
- 5V USB 1000 mA +/- 10%
Other important product features
- Extra USB port for charging your phone
Security
- Microprocessor with ∆V (dV) control
- Detection of damaged and alkaline cells
- Before reverse polarity of cells
- Against overload / short circuit
- Timer
Charger operating modes
- Charge
Features of LCD Display
- Battery level
- Using the USB port
Warranty [miesiące]
36
Approximate charging times
- 4 hours for 4 x AA 1600mAh rechargeable batteries
Markings / certificates
Ce
