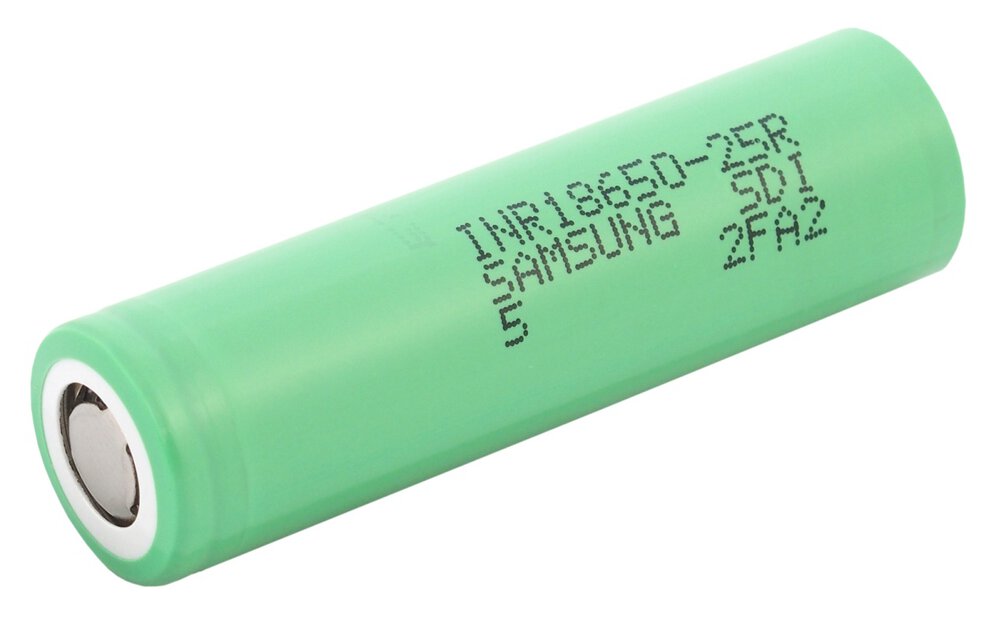

Unprotected, original 18650 rechargeable Li-ION Samsung INR18650-25r with high maximum discharge Current-20a.
The battery sold does not have electronic protection against overcharging and deep discharge.
Precautions:
• To charge the battery, use a high-quality charger with a cut-off charge at a voltage of not more than 4, 2V.
• Do not allow the battery to discharge below the voltage of 2, 5V
• Do not discharge the battery with currents higher than those specified in the specifications
• Do not charge the battery with currents higher than those specified in the specifications
• Do not short-circuit the battery
• Do not carry with metal parts (short-circuit and burns risk)
• Do not allow the battery to overheat above the temperatures provided by the manufacturer
• Do not use batteries with a defective cover/foil
• Do not use batteries with damaged or indented housing
• Do not allow contact with water or other liquids
• Do not solder the blades or wires using an ordinary soldering iron
Cell Data Sheet.
| Product data | |
| Link model | Samsung INR18650-25R |
| Nominal voltage | 3.7 V |
| Capacity | Typical: 2500mAh Minimum: 2450mAh |
| Charging | Standard-1750mA, Fast-4000mA |
| Maximum discharge current | Continuous: 20A, Pulse: 100A (1s) |
| Maximum charging voltage | 4, 2V |
| Minimum cut-off voltage | 2, 5V |
| Dimensions | Diameter 18, 3mm, Height: 64, 85mm |
| Weight | 45g |
