Technical Data:
size: A / R23
voltage: 3.6 V
capacity: 3600 mAh
maximum continuous current: 100mA
max pulse current: 250mA (1 sec)
dimensions: diameter: 17.16 mm; height: 50.9 mm
weight: 26g
Replaces batteries:
XENO Energy: XL-100F
Sonnenschein: ER17500V (2.7)
Toshiba: ER17/50 (2.75)
These are batteries with a very wide range of applications, including:
- Memory backup
- Industrial and office devices
- Medical devices
- Alarms and alarm systems
- Gas and water flow meters
- Professional electronics
- Location buoys
- Signalers
- Vehicle electronics

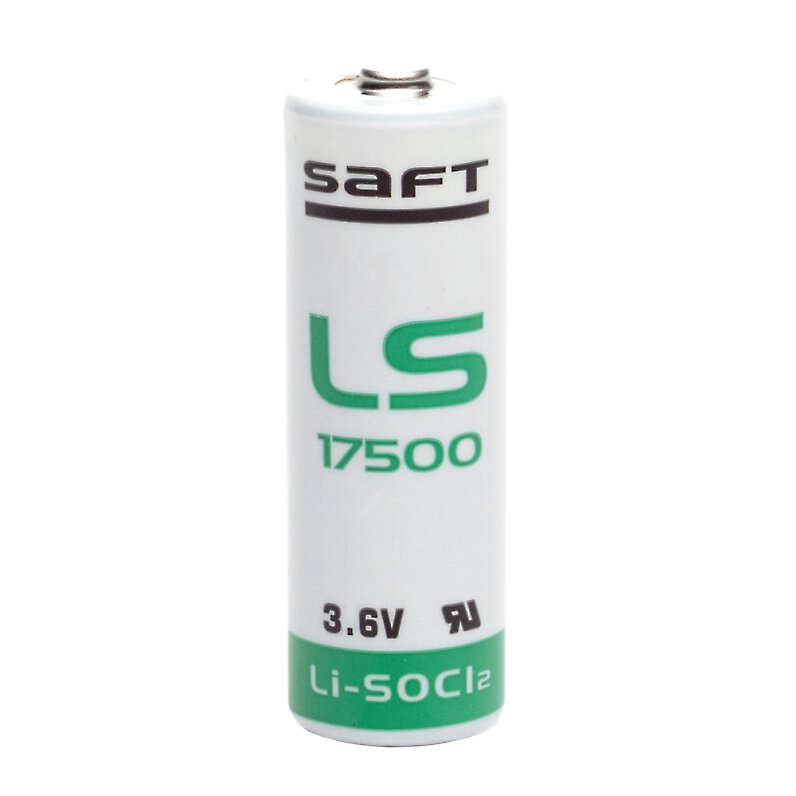

Product features lithium battery SAFT LS17500/STD AA 3.6V LiSOCl2 size A, R23
Model / Manufacturer Code
LS 17500
Battery Type Designation
Lithium Battery(litowo-chlorkowo-tionylowa)
General range of special faucets
LS17500
Battery size marking
R23/A
Voltage [V]
3,6
Diameter [mm]
17,13
Height [mm]
50,9
Mass [g / szt.]
21,9
Battery capacity [mAh]
- 3600
Maximum Discharge Current (Continuous) [A]
- 0,10
Maximum discharge current (pulse) [A]
0,25(1 sek)
Product features lithium battery SAFT LS17500/STD AA 3.6V LiSOCl2 size A, R23
Model / Manufacturer Code
LS 17500
Battery Type Designation
Lithium Battery(litowo-chlorkowo-tionylowa)
General range of special faucets
LS17500
Battery size marking
R23/A
Voltage [V]
3,6
Diameter [mm]
17,13
Height [mm]
50,9
Mass [g / szt.]
21,9
Battery capacity [mAh]
- 3600
Maximum Discharge Current (Continuous) [A]
- 0,10
Maximum discharge current (pulse) [A]
0,25(1 sek)
