Product Advantages
- Requirement for optimized lighting met thanks to the universal and programmable sensor
- Easy adjustment of sensor range, light detection, hold time, and dimming function
- Ability to disable the sensor's operation by performing the appropriate sequence of turning the fixture's power on and off
- Vent valve optimizing air exchange without compromising the IP protection rating
- High versatility thanks to selectable power levels (Multi Lumen) on the housing
- Robust cable gland with integrated water barrier function
- Safe and very even lighting thanks to the frosted glass shade
- Bright, resistant, and durable
- Energy savings of up to 90% (compared to halogen lamp floodlights)
- No upper light distribution coefficient (ULOR 0%) when mounted at an angle of 0°
Application Areas
- Replacement for halogen bulb floodlights
- Outdoor use (IP65)
- Design compliant with EN 60598-2-24 standard regarding fire hazard, e.g., due to dust accumulation
- Public areas
- Building facades
- Construction sites
- Parking
- Gardens and balconies
Product Features
- Universal motion and light sensor
- Sensor with a rotation range of 350° and tilt of 200°
- High luminous efficacy: up to 145 lm/W
- Protection rating: IP65
- Factory-installed flexible cable of length 1 m (H05RN-F), 3 x 1.0 mm²
- Reflector, symmetrical light distribution with a beam angle of 100° x 100°
- Mounting clamps with a 30° angle and wide rotation area
- Integrated voltage power supply suitable for 220 - 240 V AC

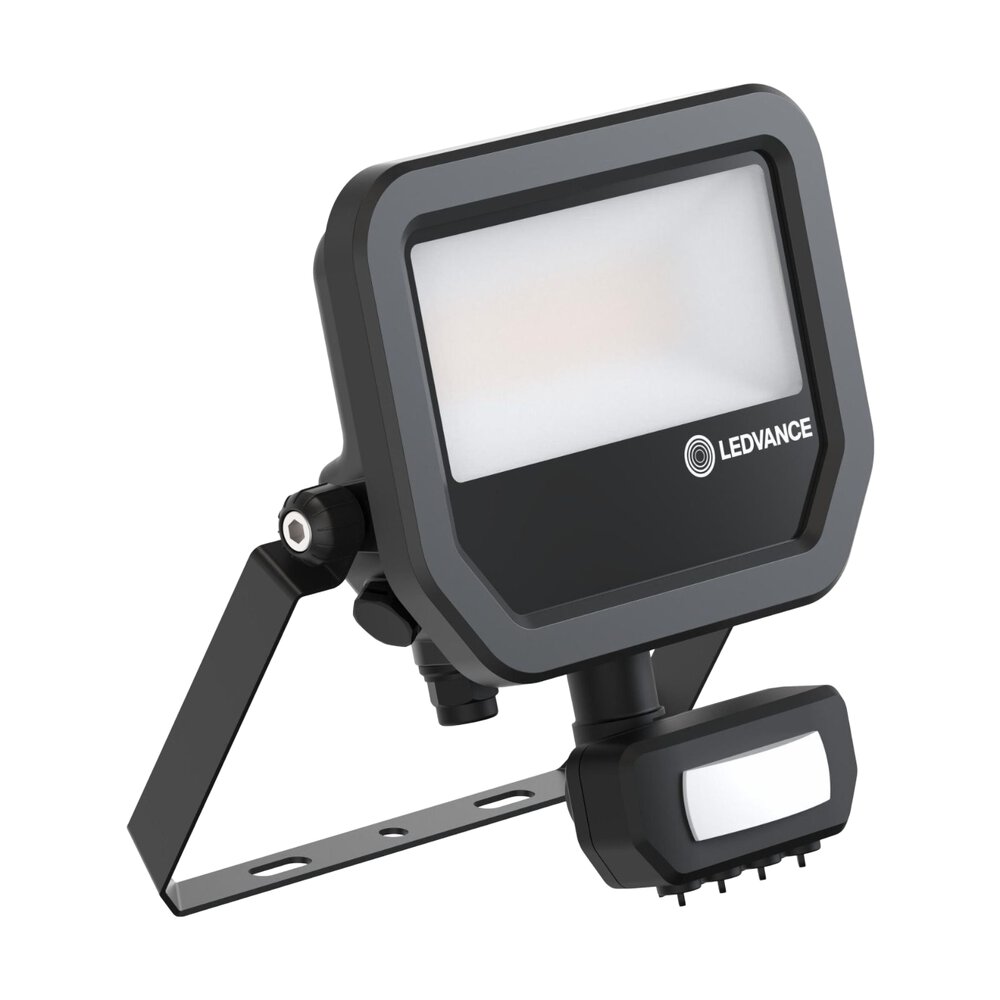

Product features Ledvance 17W 4000K black SENSOR floodlight
Total Output Power [W]
- 17
Voltage [V]
220-240
Frequency range
50 ~ 60Hz
Light output [lm]
2400
Light colour [K]
4000
Colour
black
Material
- aluminium
Operating Temperature [°C]
-30 ~ +50
Ingress Protection (IP)
IP65

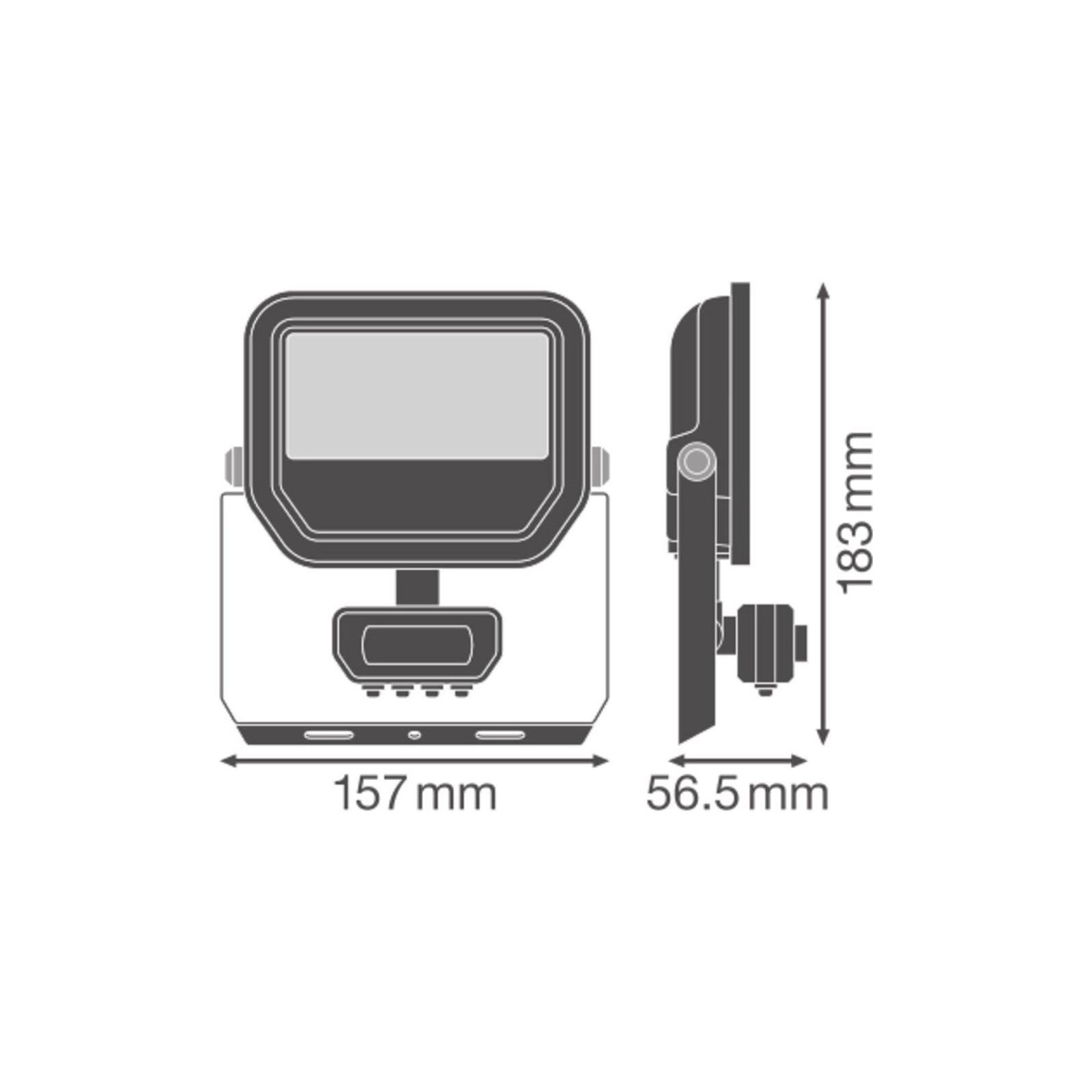

Dimensions (W x D x H) [mm]
161 x 68 x 190
Product features Ledvance 17W 4000K black SENSOR floodlight
Total Output Power [W]
- 17
Voltage [V]
220-240
Frequency range
50 ~ 60Hz
Light output [lm]
2400
Light colour [K]
4000
Colour
black
Material
- aluminium
Operating Temperature [°C]
-30 ~ +50
Ingress Protection (IP)
IP65
Dimensions (W x D x H) [mm]
161 x 68 x 190
