Charger ' rectifier ' for 12V/24V Gel batteries/AGM/lead acid

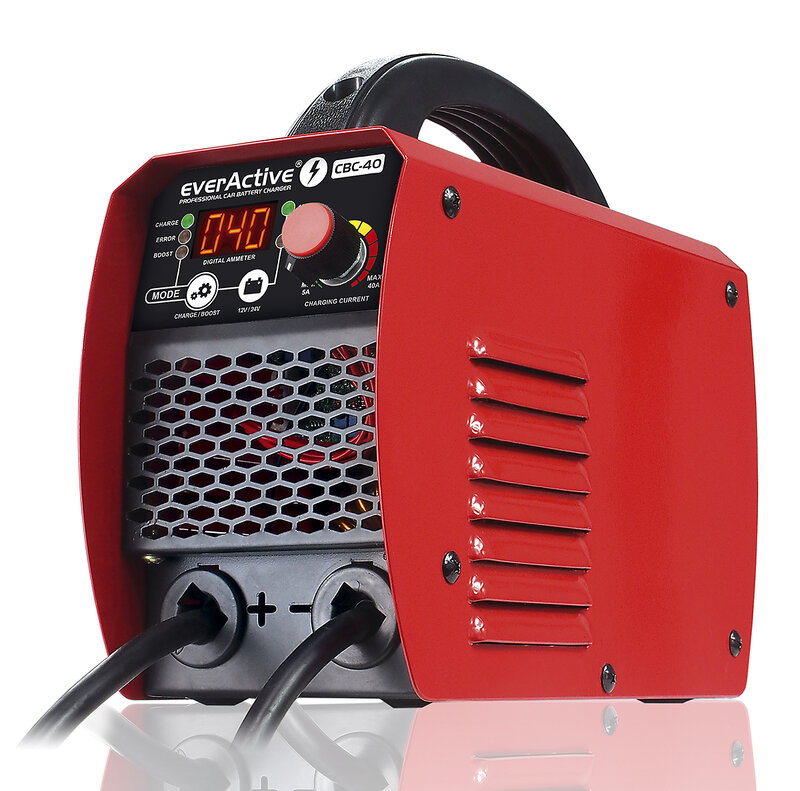

Everactive CBC-40
Made in advanced inverter technology, combines the best features of traditional transformer rectifiers and impulse chargers.
The CBC-40 is the highest model In The everactive Car Chargers series enclosed in a sturdy metal housing. It is an automatic charger for all types of acid batteries (automotive, etc.) 12V and 24V, gel/AGM with capacities of 25-1000 Ah. It is an extremely powerful rectifier with a boot in a very robust and compact release!
Basic Specifications:
Charging Current (Effective value): 5-40A (infinitely adjustable) For both 12V and 24v batteries.
Charging current (maximum value): 60A.
Current for starting aid (maximum value): 300a-For both 12V and 24v batteries.
Maximum charging voltage: 14.8 V/29v (+ 0.4 V)-The charger ensures full charge of the battery, guarantees the achievement of normal levels of electrolyte density, while reducing the risk of overcharging the battery.
Supported battery Capacities: from 25 ah to 1000 ah.
EverActive Inverter Loader combines the best features of transformer rectifiers and Impulse Chargers Eliminating their biggest defects.
Shedder
Battery may not be charged. Resistance
Problems charging extremely discharged batteries
The risk of uneven charging of individual cells in the battery
Advanced Inverter Technology is many times smaller in size and weight, and much more charging efficiency compared to conventional transformer loaders.
Our charger enables smooth, infinitely variable adjustment of the effective charging current in the range of 5-40A, regardless of whether we Connect the 12V or 24v battery.
The maximum value of the charging current Is 60a. In addition, our product is equipped with a start-up option, it has a maximum current of 300A (!) in this mode.
The industrial nature of the Charger everActive CBC-40 makes it a great complement to the equipment of any workshop -the product is especially recommended to professionals- with the help of this charger it is possible to launch almost any Vehicle in a few minutes, regardless of battery condition and external conditions. High maximal nominal current allows for efficient charging of even electric forklifts, electric vehicles, melexes, etc. Supplied with 12V/24V batteries.
Characteristics of the Charger CBC-40:
- Metal solid housing with comfortable handle,
- effective charging and regeneration of extremely discharged batteries,
- electronically stabilized output voltage reduces the risk of recharging the battery,
- battery Charging the most secure method: CC (constant current) and after reaching the target VOLTAGE by CV method (constant voltage with automatic reduction of the charging current Up To 0a),
- fully charged batteries with electrolyte density leveling in the entire battery, automatic desulphurization mode,
- smooth, infinitely variable (limit) charging current in the Range from 5A To 40a,
- maintaining a high output voltage, even after the charging is complete, helps to achieve the correct electrolyte density in each battery compartment (leveling charge),
-the same options for adjusting the output current for both 12V and 24V batteries,
- The device has a massive, fully insulated crocodile connection , with a length of 180 cm,
- after the power is interrupted and THE AC Mains is restarted, the charger will automatically start charging In 12v mode, with the charging current already
- Charger equipped with digital ammeter, showing the approximate current value of the charging current-allows you to quickly assess the status and battery charge level.
Everactive CBC-40
Made in advanced inverter technology, combines the best features of traditional transformer rectifiers and impulse chargers.
The CBC-40 is the highest model In The everactive Car Chargers series enclosed in a sturdy metal housing. It is an automatic charger for all types of acid batteries (automotive, etc.) 12V and 24V, gel/AGM with capacities of 25-1000 Ah. It is an extremely powerful rectifier with a boot in a very robust and compact release!
Charging Current (Effective value): 5-40A (infinitely adjustable) For both 12V and 24v batteries.
Charging current (maximum value): 60A.
Current for starting aid (maximum value): 300a-For both 12V and 24v batteries.
Maximum charging voltage: 14.8 V/29v (+ 0.4 V)-The charger ensures full charge of the battery, guarantees the achievement of normal levels of electrolyte density, while reducing the risk of overcharging the battery.
Supported battery Capacities: from 25 ah to 1000 ah.
EverActive Inverter Loader combines the best features of transformer rectifiers and Impulse Chargers Eliminating their biggest defects.
 (CBC-40) |  Microprocessor |  Traditional |
| Advantages  Perfect for regeneration of old and worn batteries High charging currents in a compact housing High reliability and resistance to temporary overloads Provides a high level of charge Possibility of charging extremely discharged batteries Stabilization of output voltage Low risk of recharging the battery does not exceed the safe battery voltage Suitable for multiple battery types SLA/VRLA/GEL/AGM... Highly efficient and energy efficient | Advantages Stabilization of output voltage Very low risk of recharging the battery does not exceed the safe battery voltage Suitable for multiple battery types SLA/VRLA/GEL/AGM... Well protected against short circuits, faulty connection, etc. Highly efficient and energy efficient Disadvantages  Not resistant to Captur |
Battery may not be charged. Resistance
Problems charging extremely discharged batteries
The risk of uneven charging of individual cells in the battery
Advantages
High reliability and resistance to temporary overloads
Provides a high level of charge
Possibility of charging extremely discharged batteries
High reliability and resistance to temporary overloads
Provides a high level of charge
Possibility of charging extremely discharged batteries
Disadvantages
Low efficiency, high current consumption
Heavy and Little Handy
Limited number of batteries supported
No output voltage stabilisation
Possibility of recharging the battery
Easily overheats
Low short-circuit proof
Low efficiency, high current consumption
Heavy and Little Handy
Limited number of batteries supported
No output voltage stabilisation
Possibility of recharging the battery
Easily overheats
Low short-circuit proof
Advanced Inverter Technology is many times smaller in size and weight, and much more charging efficiency compared to conventional transformer loaders.
Our charger enables smooth, infinitely variable adjustment of the effective charging current in the range of 5-40A, regardless of whether we Connect the 12V or 24v battery.
The maximum value of the charging current Is 60a. In addition, our product is equipped with a start-up option, it has a maximum current of 300A (!) in this mode.
The industrial nature of the Charger everActive CBC-40 makes it a great complement to the equipment of any workshop -the product is especially recommended to professionals- with the help of this charger it is possible to launch almost any Vehicle in a few minutes, regardless of battery condition and external conditions. High maximal nominal current allows for efficient charging of even electric forklifts, electric vehicles, melexes, etc. Supplied with 12V/24V batteries.
Characteristics of the Charger CBC-40:
- Metal solid housing with comfortable handle,
- effective charging and regeneration of extremely discharged batteries,
- electronically stabilized output voltage reduces the risk of recharging the battery,
- battery Charging the most secure method: CC (constant current) and after reaching the target VOLTAGE by CV method (constant voltage with automatic reduction of the charging current Up To 0a),
- fully charged batteries with electrolyte density leveling in the entire battery, automatic desulphurization mode,
- smooth, infinitely variable (limit) charging current in the Range from 5A To 40a,
- maintaining a high output voltage, even after the charging is complete, helps to achieve the correct electrolyte density in each battery compartment (leveling charge),
-the same options for adjusting the output current for both 12V and 24V batteries,
- The device has a massive, fully insulated crocodile connection , with a length of 180 cm,
- after the power is interrupted and THE AC Mains is restarted, the charger will automatically start charging In 12v mode, with the charging current already
- Charger equipped with digital ammeter, showing the approximate current value of the charging current-allows you to quickly assess the status and battery charge level.
| Technical data | |
| Input voltage | 220-240V AC 50Hz/60Hz, 7A |
| Supported Batteries | 12V/24V DC Manual Selection Gel, lead acid, AGM, VRLA, VLA, SLA, WET, GEL, Lead-Acid, EFB, Ca/Ca, Pb etc. |
| Supported battery Capacities: | 25-1000Ah for 12V/24V |
| Maximum charging voltage | 14.8 V (+ 0.4 V) for 12V rechargeable batteries, 29V (+ 0.4 V) for 24V rechargeable batteries |
| Charging current (Effective) | Infinitely adjustable 5.. 40 [A] for 12V/24V |
| Charging current (maximum) | 60 A for 12V/24V |
| Current for start-up aid | Up to 300 A for 12V/24V |
| Operating temperature | -20.. 40st. C (Power limit at higher temp.) |
| Dimensions | 160 x 105 x 245 in [mm] |
| Weight | 3.5 kg |
| other | Built-in fan, AC power cord length approx. 1.8 m, the total length of the connections with Crocodilikami is approx. 1.8 m |
| Included | Automatic charger everActive CBC-40 together with connections, Power Cord, Instructions for use PL/EN/DE |
