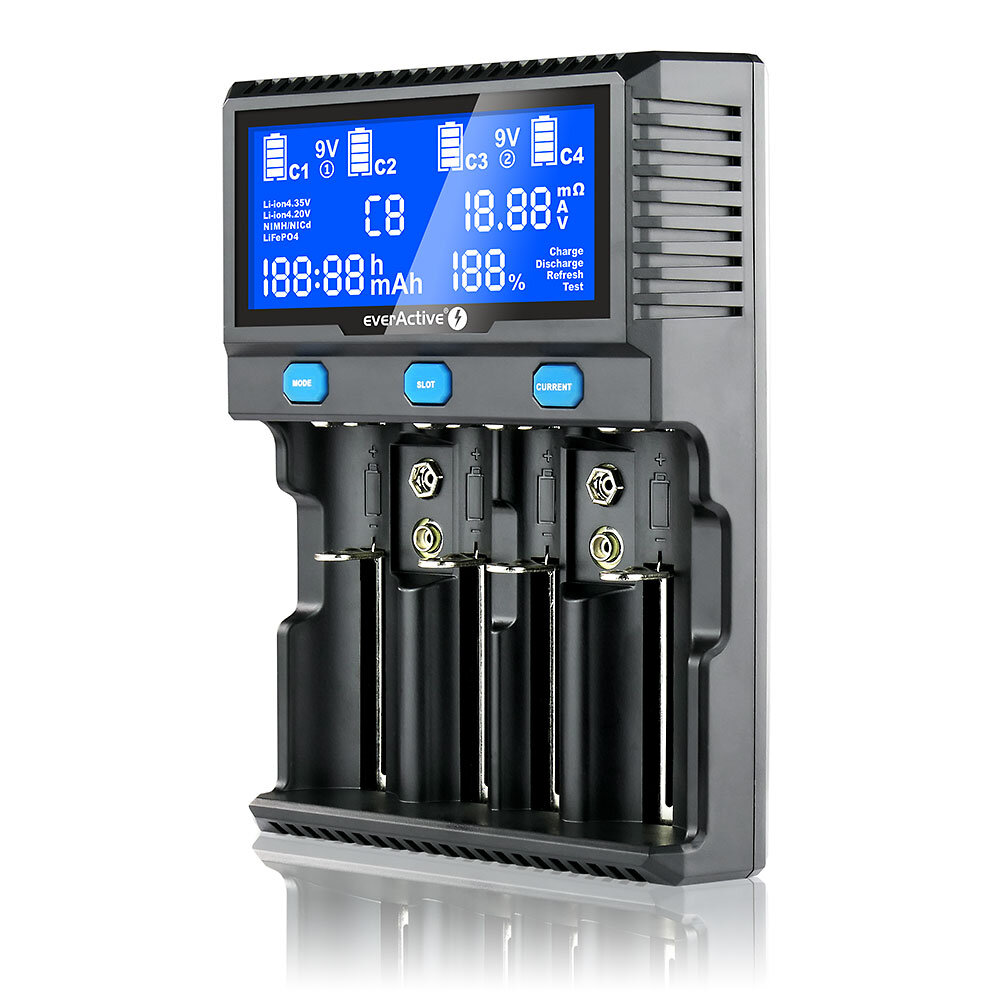

EverActive UC4200
is a new charger that takes the podium in terms of versatility. Besides its wide compatibility, it has also been equipped with advanced features, making it one of the best chargers in our assortment.
We invite you to familiarize yourself with the presentation of the everActive UC-4200 charger
The UC4200 charger focuses on maximum compatibility - it can charge any Ni-MH batteries in sizes: R6 AA, R03 AAA, R14 C, SC, R20 D, and 9V batteries. Additionally, the UC4200 also supports Li-ion batteries with a voltage of 3.6/3.7V, their high-voltage alternative - Li-HV, which has a nominal voltage of 3.85V, and Li-FePO4 batteries. For lithium-based batteries, the charger will support sizes such as: 10440, 14500, 14650, 17500, 17670, 18350, 18500, 18650, 20700, 21700 - also protected, 22650, 25500, 26500, 26650, 32650, 33600, 16340 R-CR123e. The maximum sled width is up to 76mm, ensuring the ability to charge increasingly popular 20700 and 21700 batteries in the version with electronic protection.
Li-ion/Li-HV and LiFePO4 batteries are charged very accurately using the CC/CV method with a termination level of about 100mA. This guarantees complete safety and full charging of each battery, even if it is heavily degraded or has a low capacity.
Ni-MH and 9V batteries are charged using the CC method (constant current) with very precise dV / PVD detection - charging is completed only after reaching the maximum voltage on the battery (the value of this voltage may vary for each battery).
In addition, the charger has been equipped with a number of protections such as:
- against overcharging,
- against excessive discharging of cells,
- short-circuit / overload,
- thermal,
- against reverse polarity of cells.
Wide compatibility is not the only advantage of this charger. Large readable display with backlight, continuously shows all the most important values:
|
Most important features: |
The charger will support any cylindrical battery with a length of 32-76 mm and a maximum diameter of 33 mm.
In the UC4200, we can easily charge popular 18650 batteries both with and without electronic protection. Protected 20700/21700 batteries also pose no problem for it.
The charger has dual input voltage: 12V DC the charger has an integrated mains power supply - power cable included, car adapter available separately.
- Li-ion batteries 3.6-3.7V, protected (with PCM/PCB)
- Li-ion batteries 3.6-3.7V, unprotected
- Li-ion batteries 3.8-3.85V, protected (with PCM/PCB)
- Li-ion batteries 3.8-3.85V, unprotected
- LiFePO4 Batteries
- Ni-MH batteries
- 6F22/9V batteries
- 12 V DC / 3000 mA
- AC 100-240V, 50-60Hz
- Processor-controlled CC/CV for Li-ion/Li-FePO4
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
- Charge
- Discharge
- Refresh/Cycle(Rozładowanie z odświeżaniem)
- Capacity measurement in mAh (Test)
- Measurement of internal resistance in mOhm (Quick test)
- Adjustable - 200mA / 2000mA per channel / slot for Li-ion / Li-FePO4(2000mA tylko dla kanałów 1 i 4)
- Adjustable - 200mA - 1000mA per channel/slot for Ni-MH
- Adjustable - 60mA /120mA for 9V batteries
- Li-ion 4.2V ±0,05V
- Li-HV 4.35V ±0,05V
- Li-FePO4 3.65V ±0.05V
- Ni-MH ~1.45V-1.55V dV/PVD
- 200mA /400mA(w zależności od wybranego prądu ładowania)
- Before reloading
- Before over-discharging cells
- Against overload / short circuit
- Overload
- Thermal - before overheating of batteries
- Before reverse polarity of cells
- UC-4200 Charger, 1m Power Cable, User Manual
