🔋Convenient charging via USB-C

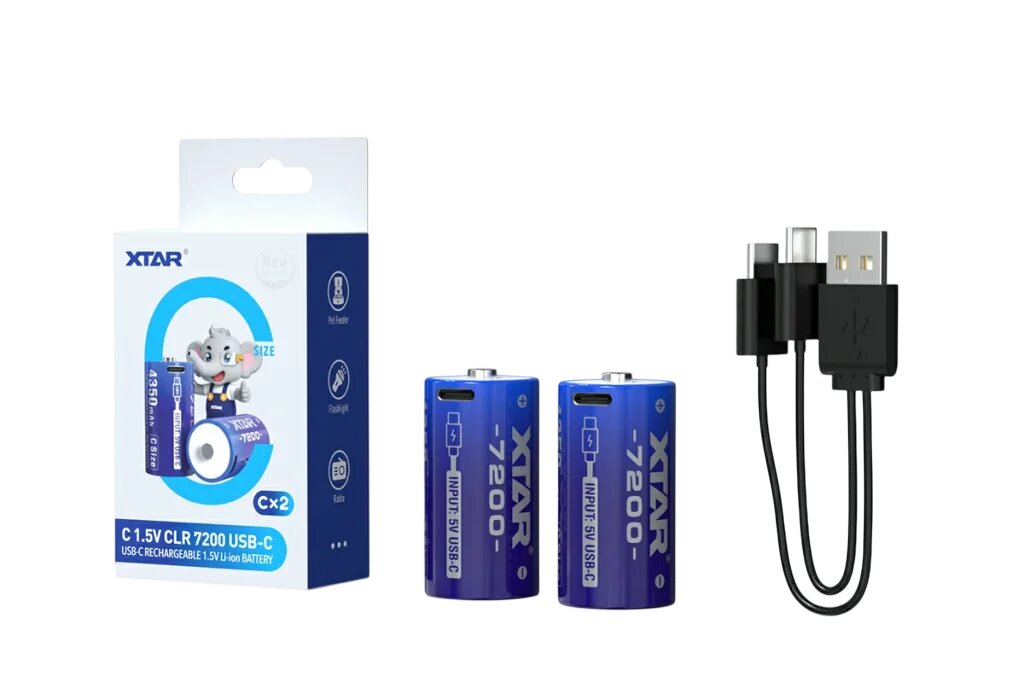

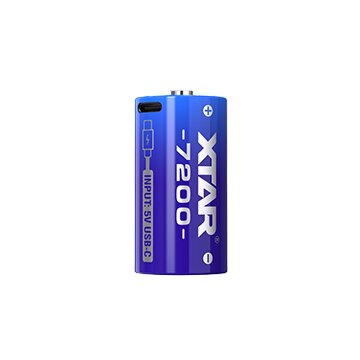

The XTAR C 1.5V CLR 7200 USB-C battery is a modern and efficient power source in size C. It offers a capacity of 4350 mAh, stable voltage of 1.5 V, and the ability to charge directly through the built-in USB-C port. This means that a regular USB-C cable is sufficient for charging.
Main advantages
✅ Direct charging through the USB-C port
✅ Stable output voltage of 1.5 V
✅ High capacity of 4350 mAh
✅ Maximum discharge current of 2.5 A
✅ Full charge in about 3 hours
✅ Over 1500 charging cycles
✅ Low energy level detection feature
✅ Protection against overcharging, excessive discharging, short circuit, and current overload
✅ Wide operating temperature range from -20°C to +60°C
✅ Protruding positive terminal Button Top

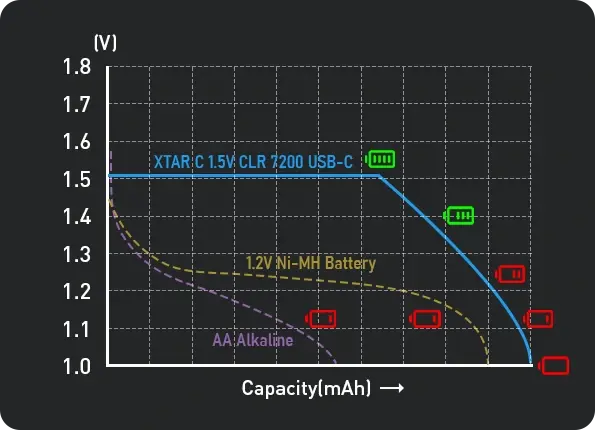

⚡Stable voltage 1.5 V
The battery maintains a stable voltage of 1.5 V during normal operation, providing even power supply to the device. When the energy level begins to drop, the voltage gradually decreases, allowing compatible devices to detect low charge levels more accurately.
🔌Charging via USB-C
The built-in USB-C port allows for direct charging of the battery. Full charging takes about 3 hours, enabling the battery to be quickly prepared for reuse.
♻️Over 1500 charging cycles
The battery is designed for multiple use. Its lifespan exceeds 1500 cycles, reducing the need for frequent replacement of disposable batteries.
🛡️ Safe usage
The battery has protections against:
overcharging,
over-discharging,
short-circuiting,
current overload.
🌡️ Operation in a wide temperature range
XTAR C 1.5V CLR 7200 USB-C can operate in temperatures from -20°C to +60°C, making it suitable for use in various conditions.
⚠️Warning
The maximum discharge current is 2.5 A. Before use, ensure that the battery parameters are compatible with the requirements of the powered device.
📈Technical Data
- Manufacturer: XTAR
- Model: C 1.5V CLR 7200 USB-C
- Size: C
- Capacity: 4350 mAh
- Voltage: 1.5 ± 0.05 V
- Maximum discharge current: 2.5 A
- Charging port: USB-C
- Charging voltage: 4.75–5.5 V
- Charging current: 0.7 ± 0.05 A
- Full charging time: about 3 hours
- Operating temperature: from -20°C to +60°C
- Storage temperature: from -20°C to +50°C
- Recommended storage temperature: 25 ± 5°C
- Lifetime: over 1500 cycles
- Protection: yes
- Positive terminal: Button Top
- Dimensions: Ø25.3 ± 0.3 × 50.1 ± 0.5 mm
- Weight: about 55.2 g
