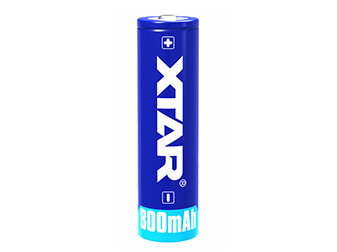

Xtar 14500 Rechargeable Lithium-ion battery with 800mAh capacity. Electronically protected against overcharging, over-discharge, overload and short-circuit.
| Product data | |
| Nominal voltage | 3.7 V |
| Capacity | 800mAh |
| Maximum recommended charging current | 0, 5A |
| Maximum recommended discharge current | 2A |
| Current protection threshold | 2, 8A |
| Maximum charging voltage | 4, 2V |
| Dimensions | Diameter: 14, 3mm; Height: 50, 5mm |
Product features Xtar 14500/AA/R6 3.7 v Li-ion 800mAh rechargeable battery with protection
Model / Manufacturer Code
Xtar 14500
Nominal Voltage [V]
3,70
Battery capacity [mAh]
800
Maximum recommended charging current [A]
0,500
Maximum Discharge Current (Continuous) [A]
- 2,00
Maximum Charging Voltage [V]
- 4,20
Current protection tripping threshold [A]
2,80
Diameter [mm]
14,3
Height [mm]
50,5
Product features Xtar 14500/AA/R6 3.7 v Li-ion 800mAh rechargeable battery with protection
Model / Manufacturer Code
Xtar 14500
Nominal Voltage [V]
3,70
Battery capacity [mAh]
800
Maximum recommended charging current [A]
0,500
Maximum Discharge Current (Continuous) [A]
- 2,00
Maximum Charging Voltage [V]
- 4,20
Current protection tripping threshold [A]
2,80
Diameter [mm]
14,3
Height [mm]
50,5
