Wire Pair Locator UNI-T UT682D

marka produktu:
kod producenta:
UT682D
EAN:
6935750568262
  • Pair polarity indicator
  • Transmitter continuous output voltage: 8 VDC
  • Low battery level indicator
  • test: RJ11
Zobacz pełny opis produktu
lista życzeń
Wire Pair Locator UNI-T UT682D
Wire Pair Locator UNI-T UT682D
15,11 € brutto 15,11 € netto
Duża ilość w magazynie
15,11 € brutto 15,11 € netto
--
++
szt.
Dodaj do koszyka

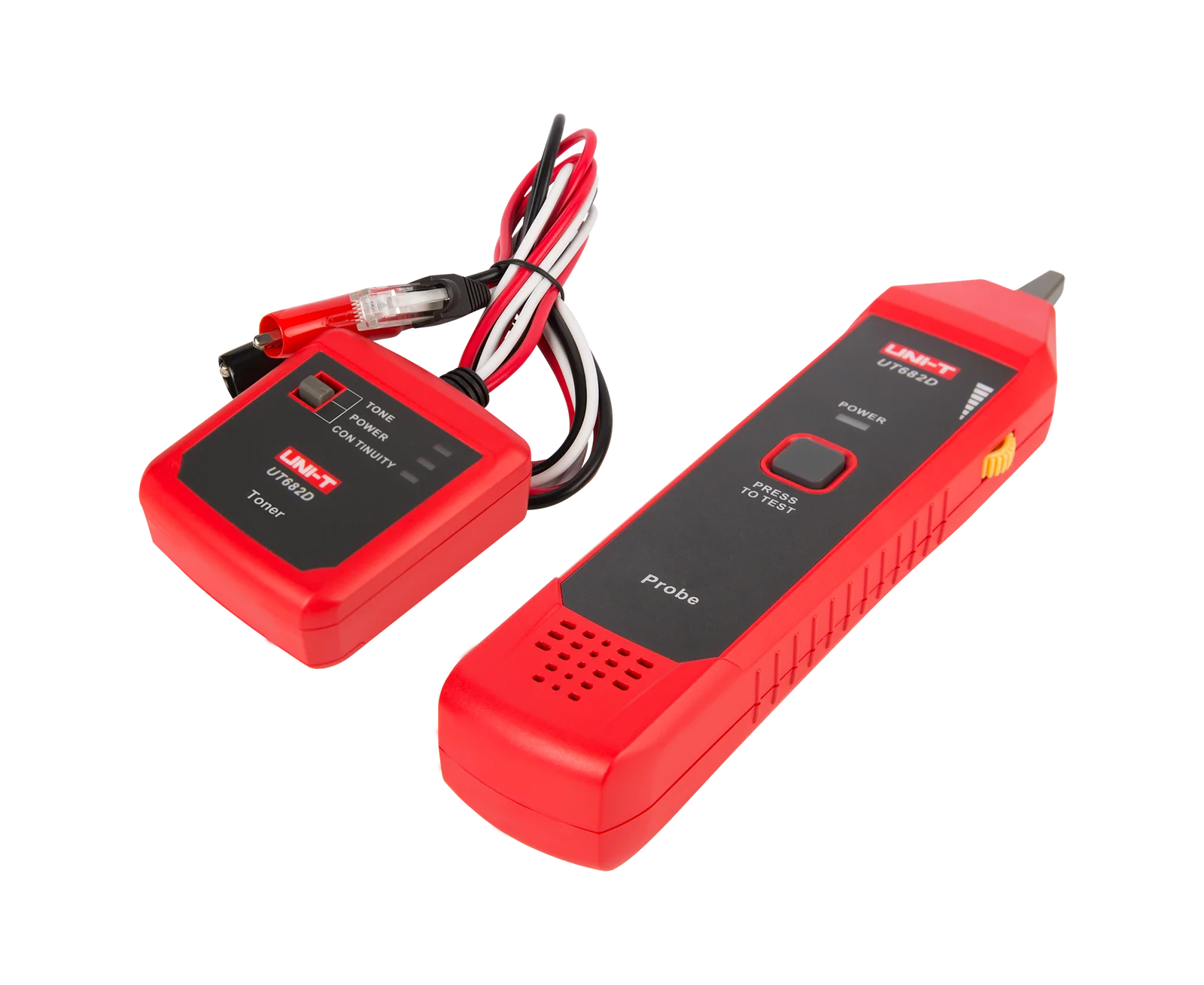

Uni-T UT682D Meter is a professional tool designed for quick and precise searching and identification of wires in electrical, telephone, and network (twisted pair) installations. With advanced features and a robust design, the UT682D is the ideal solution for installation technicians, electricians, and computer network specialists.

Versatility and Application
The Uni-T UT682D supports various types of wires, including electrical, telephone, and twisted pairs, making it a versatile tool for diverse applications. The device can trace telephone lines up to a maximum length of 3000 meters, allowing for efficient work in large telecommunications installations. The polarization indicator enables checking the correctness of telephone wire polarization within a voltage range of +/-5 V to 52 V, which is essential for diagnosing issues with telephone connections.

Performance and Precision
The UT682D meter generates a continuous output voltage of 8 V DC, which allows for precise wire localization. By using a 9 V battery to power both the transmitter and receiver, the device ensures stable operation and long lifespan. The receiver in standby mode consumes only about 10 mA, and during operation less than 40 mA, which further increases the energy efficiency of the device.

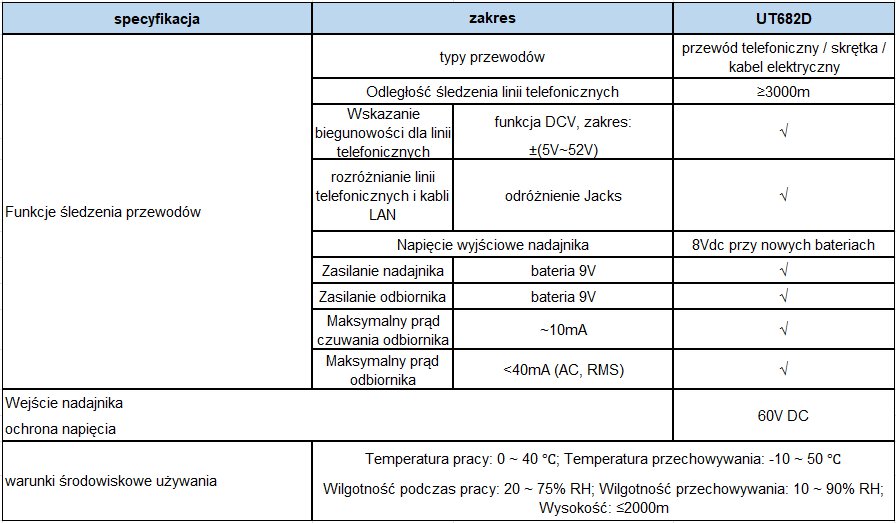

Technical Specifications:

  • Type of detected wires: telephone, internet, power
  • Maximum length of telephone line: 3000 m
  • Polarization indicator for telephone wire pairs: from 5 V to 52 V
  • Maximum current consumption of the receiver in standby mode: ~10 mA
  • Maximum current consumption of the receiver during operation: < 40 mA
  • Continuous output voltage of the transmitter: 8 VDC
  • Low battery level indicator
Cechy produktu Wire Pair Locator UNI-T UT682D

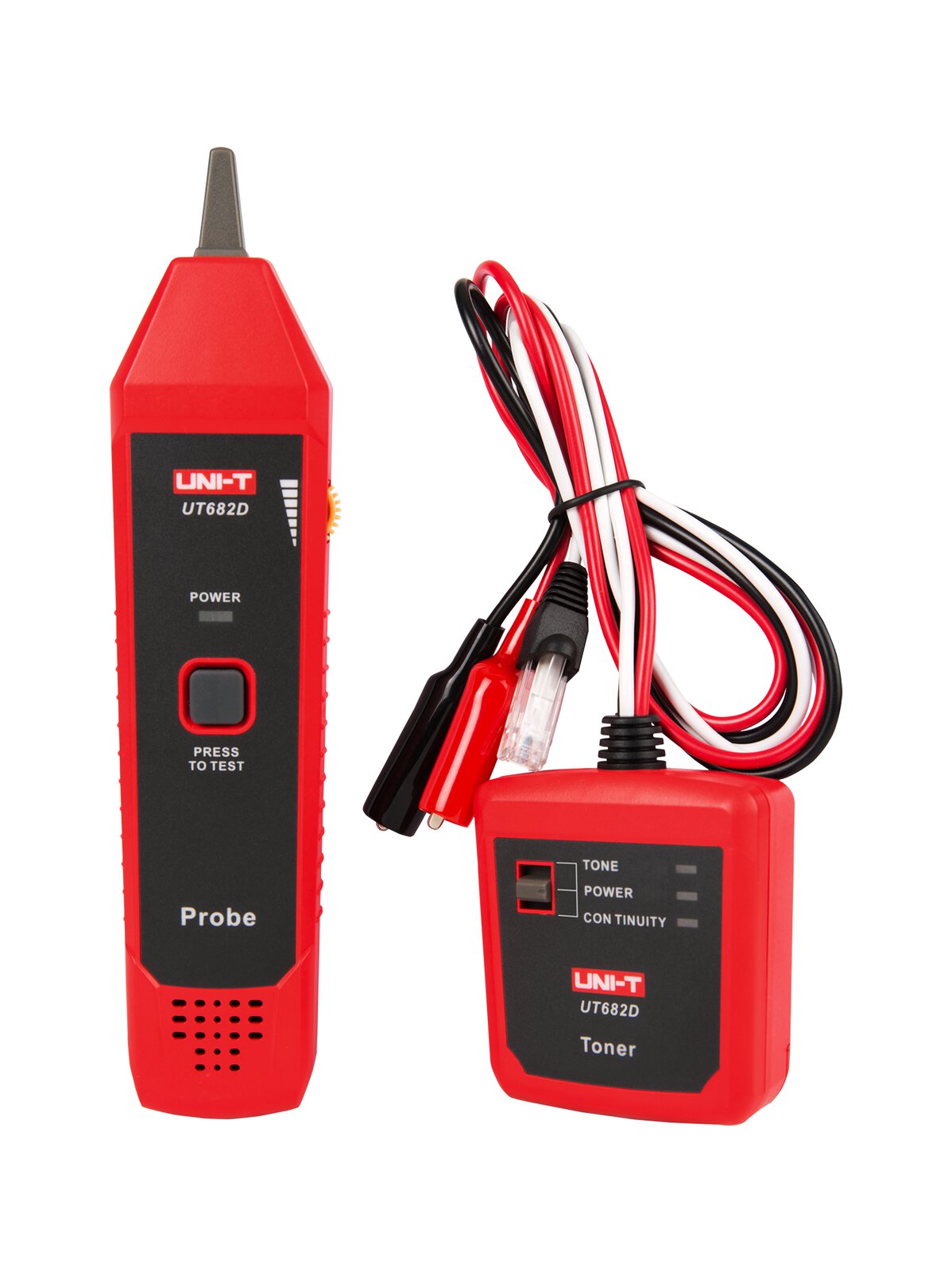

The set includes
  • Meter (receiver) UT682D
  • UT682D Meter (transmitter)
  • 9V Battery x2
Power
  • 9V
Dimensions [mm]
  • 208 mm x 47 mm x 33 mm - Receiver
  • 74 mm x 68 mm x 28 mm - Transmitter
Scales [g]
  • 130,0(Odbiornik)
  • 150,0(Nadajnik)
Warranty [miesiące]
24
Cechy produktu Wire Pair Locator UNI-T UT682D
The set includes
  • Meter (receiver) UT682D
  • UT682D Meter (transmitter)
  • 9V Battery x2
Power
  • 9V
Dimensions [mm]
  • 208 mm x 47 mm x 33 mm - Receiver
  • 74 mm x 68 mm x 28 mm - Transmitter
Scales [g]
  • 130,0(Odbiornik)
  • 150,0(Nadajnik)
Warranty [miesiące]
24
