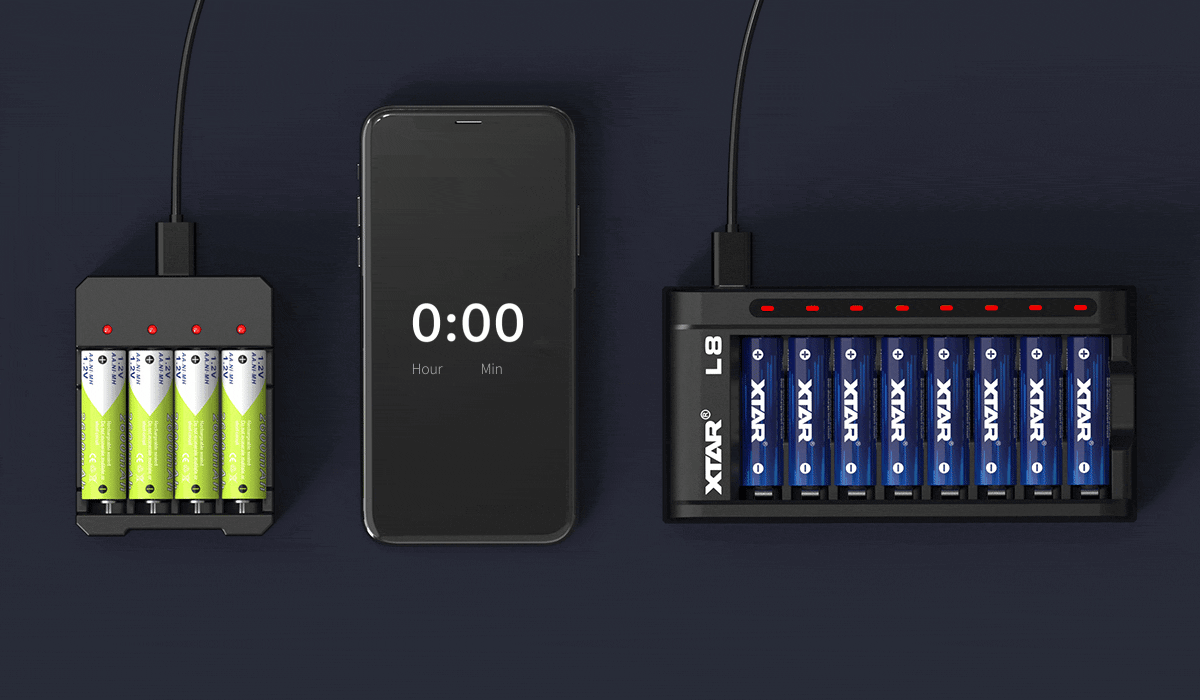

Eight fast charging ports
The L8 uses Quick Charge 3.0 (QC3.0) technology and boasts an impressive 18W of power. This allows it to deliver a charging current of 0.5A per channel.
Smart Charging
Intelligent charging functions allow you to select the right charging current according to the input power, which ultimately protects both the batteries and the charger from overheating and damage.
The TC-CC-CV charging protocol greatly reduces battery consumption and extends battery life.

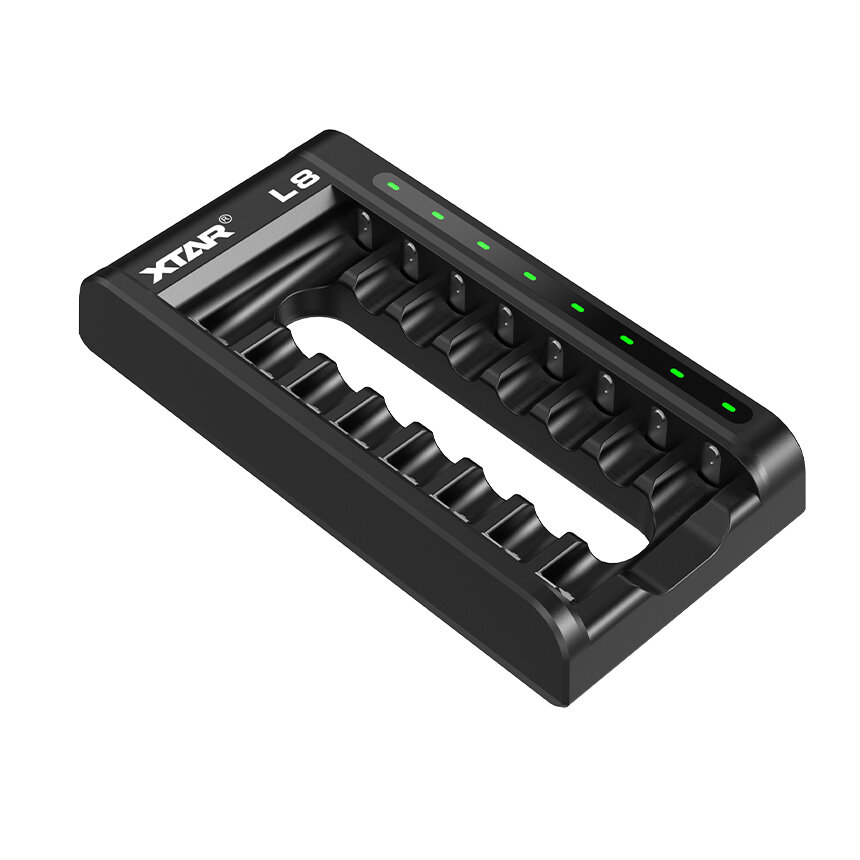

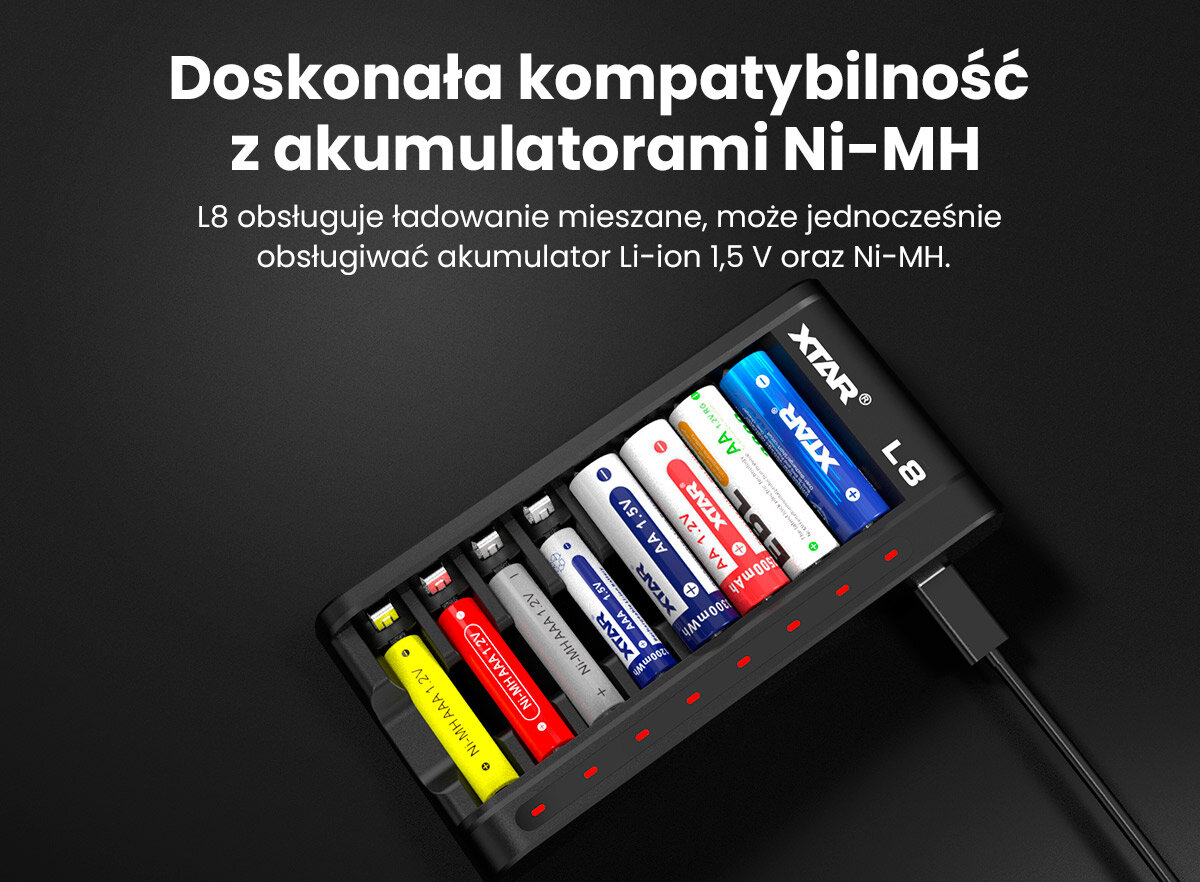

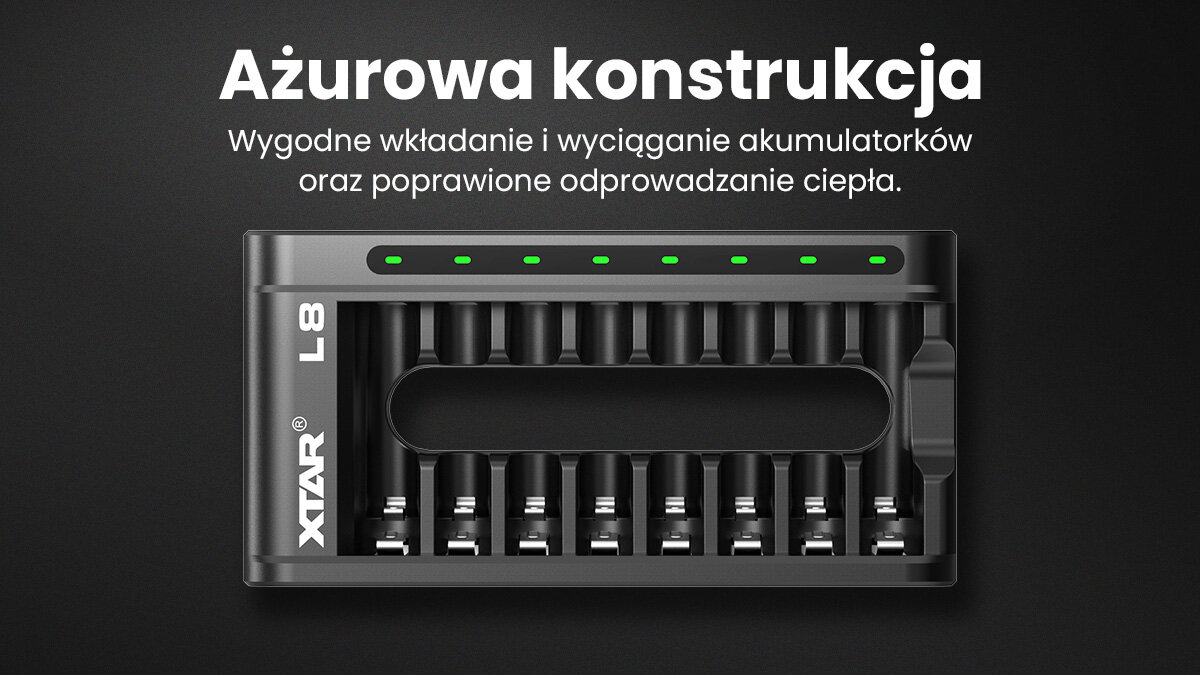

Product features Smart charger with 8 slots for 1.5V and 1.2V Xtar L8 AA/AAA batteries
Producer
Xtar
Model / Manufacturer Code
L8
Supported battery types
- Ni-MH batteries
- 1.5V Li-ion batteries protected
Supported battery sizes
R6 / AA,R03 / AAA
Input voltage
- QC 3.0 (5V/2A | 9V/2A) - USB Type-C Socket((500 - 2100 mA))
Maximum dimensions of the battery to be charged (width x height) [mm]
14 x 500
Charging method
- Processor-controlled TC/CC/CV for Li-ion
Charging Termination Voltage
- 1.5V
Security
- Before the charger overheats
- Against overload / short circuit
- Overload
- Before reloading
Charger operating modes
- Charge
Dimensions (W x D x H) [mm]
153 x 76.5 x 27.6
Mass [g / szt.]
118,0
Contents
- Xtar L8 Charger
- USB Type-C Cable
Warranty [miesiące]
24
Markings / certificates
Ce
4x Xtar R03 / AAA 1.5V Li-ion 680mAh battery with protection (BOX)
- nominal voltage: 1.5V
- minimum capacity: 680mAh
- typical capacity: 750mAh
- protected against: discharge, overcharge, overload, short circuit
- number of charge and discharge cycles: over 1200 cycles
8,19 € gross
8,19 € net
Product features Smart charger with 8 slots for 1.5V and 1.2V Xtar L8 AA/AAA batteries
Producer
Xtar
Model / Manufacturer Code
L8
Supported battery types
- Ni-MH batteries
- 1.5V Li-ion batteries protected
Supported battery sizes
R6 / AA,R03 / AAA
Input voltage
- QC 3.0 (5V/2A | 9V/2A) - USB Type-C Socket((500 - 2100 mA))
Maximum dimensions of the battery to be charged (width x height) [mm]
14 x 500
Charging method
- Processor-controlled TC/CC/CV for Li-ion
Charging Termination Voltage
- 1.5V
Security
- Before the charger overheats
- Against overload / short circuit
- Overload
- Before reloading
Charger operating modes
- Charge
Dimensions (W x D x H) [mm]
153 x 76.5 x 27.6
Mass [g / szt.]
118,0
Contents
- Xtar L8 Charger
- USB Type-C Cable
Warranty [miesiące]
24
Markings / certificates
Ce
