Clamp Meter UT210E UNI-T

product brand:

UNIT

EAN:

5900804142126

AC/DC voltage up to 600V
Resistance up to 20MΩ
AC current up to 100A
Capacitance of capacitors up to 20mF
NCV - Non-Contact Voltage Punching

View full product description

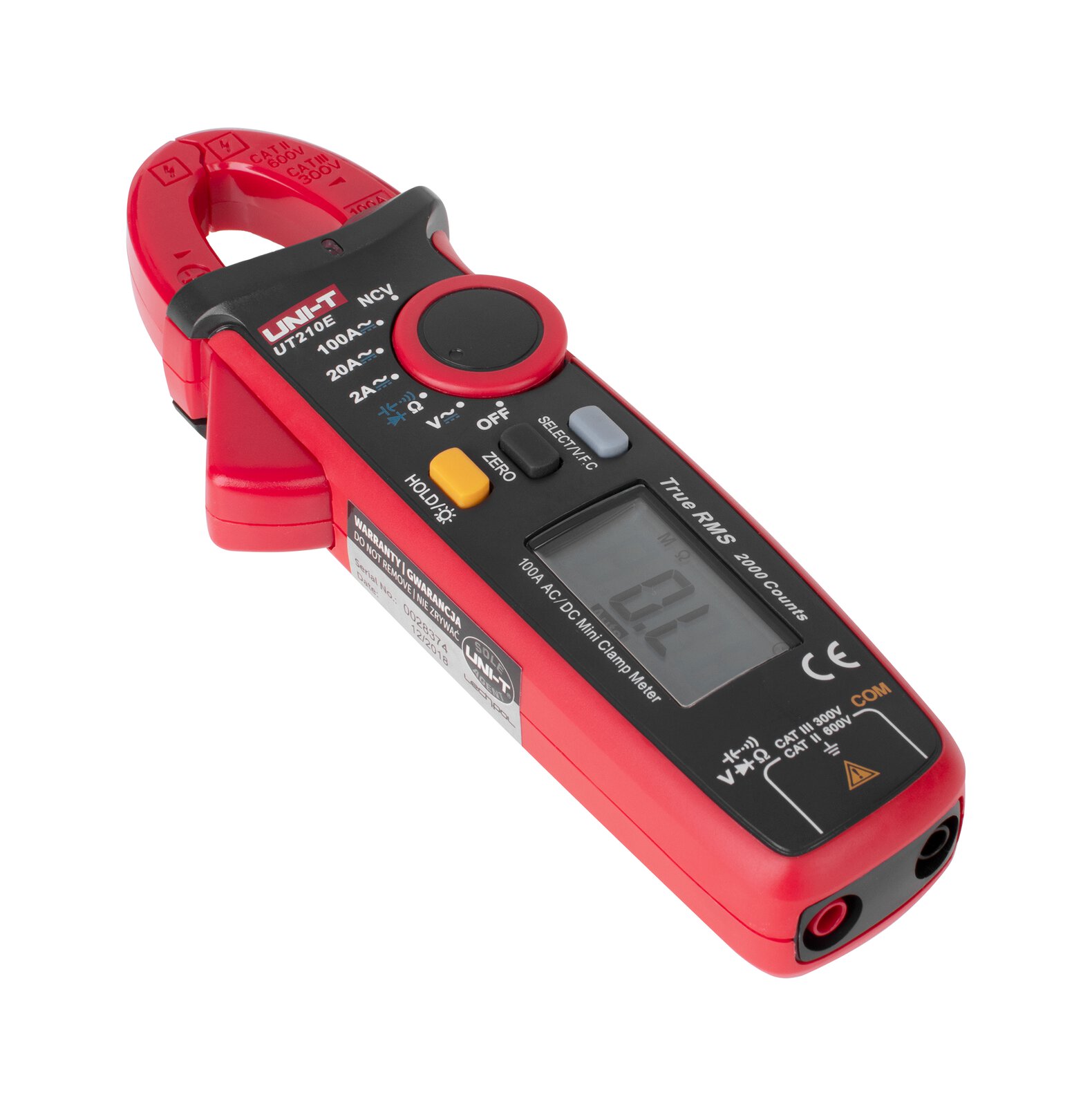

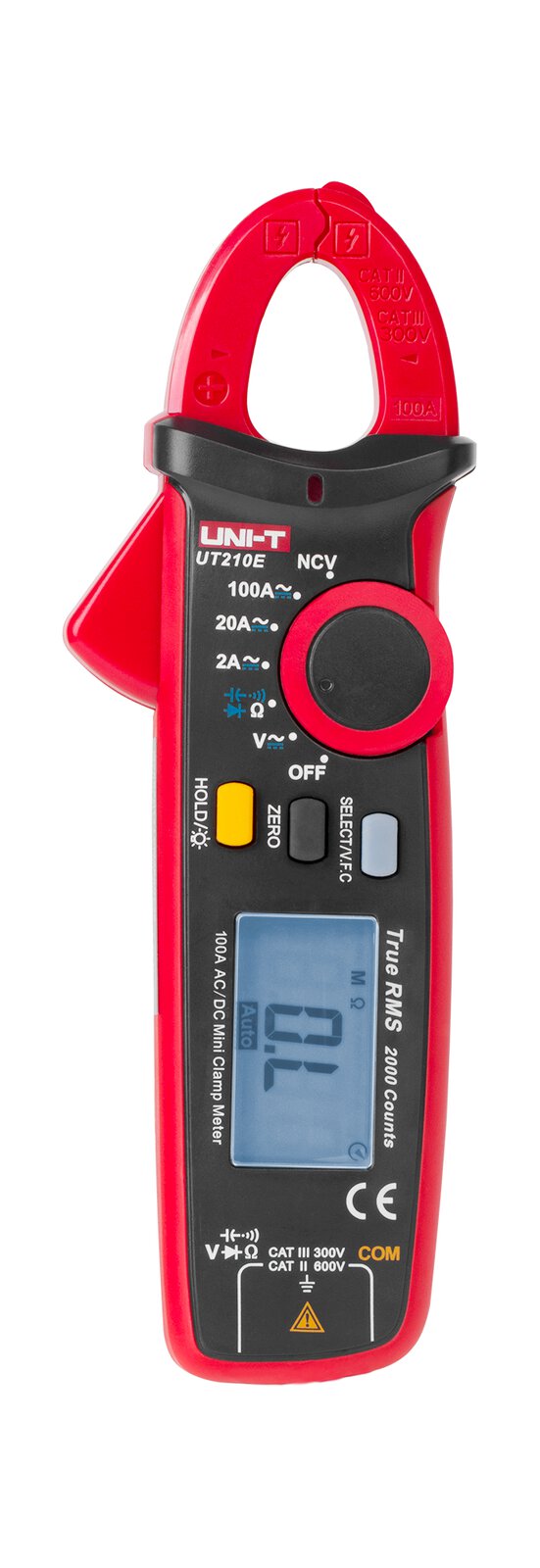

Clamp Meter UT210E UNI-T

Product Description

Clamp multimeters differ from traditional clamp meters in their ability to measure AC current without the need to interrupt the circuit. However, the production of meters with only this function would not be economically justified. That is why UNI-T equips its clamp multimeters with numerous measurement functions to make them more versatile.

The UT210E clamp meter measures AC/DC voltage, AC/DC current, resistance, and capacitance. The multimeter also has functions that facilitate everyday work with the device, such as measurement of the RMS value of True RMS, non-contact detection of NCV voltage or V.F.C., i.e. AC measurement for changing frequency.

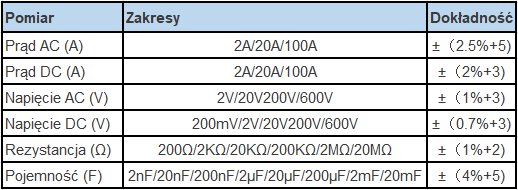

Measuring ranges:

DC Voltage: 200mV/2V/20V/200V/600V
AC Voltage: 2V/20V/200V/600V
DC Current: 2 A / 20 A / 100 A
AC Current: 2 A / 20 A / 100 A
Resistance: 200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm
Capacitance: 2 nF / 20 nF ~ 200 uF / 2 mF ~ 20 mF
Diode test: approx. 3 V
Checking the continuity of the circuit

Additional features:

Automatic/manual change of measuring ranges
Freeze the last indication
Electric Field Detection (NCV)
High-frequency interference filter that can affect measurement accuracy (VFC)
True RMS metering
Reset function
Backlit LCD screen
Automatic switch-off: after approx. 15 minutes
Low battery indicator: =< 2.5V
Maximum Read: 2000
