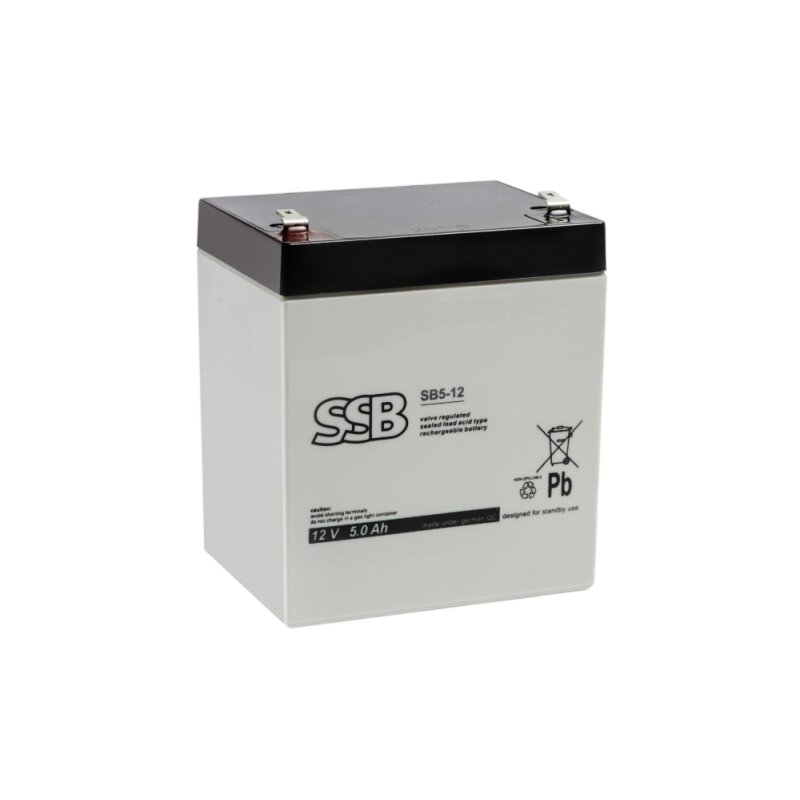

AGM gel battery SSB SB 5-12 12V 5Ah T1

The SB series consists of batteries designed for a lifespan of 6-9 years for standby operation.

SSB Battery maintenance-free VRLA batteries for standby and cyclic operation, produced using AGM technology. The batteries feature extremely good recovery after deep discharge, low internal resistance, durability against high currents, and low self-discharge.

Application:

• emergency power supply UPS;
• alarm and fire protection systems;
• cash registers and fiscal printers;
• emergency power supply for automation and security;
• medical devices;
• portable devices.

PARAMETERS:

• Nominal voltage: 12V
• Nominal capacity: 5.2 Ah @ C20 for discharge to 1.75 V/cell
• 5 Ah @ C10 for discharge to 1.80 V/cell

Manufacturing technology:

• AGM (Absorbent Glass Mat) electrolyte trapped in fiberglass separators
• VRLA (Valve Regulated Lead Acid) maintenance-free, housing equipped with safety valves
• Designed lifespan:  6-9 years (for standby operation) General Purpose according to Eurobat
• Internal resistance:  ~ 26 mΩ (in fully charged state)
• Permissible ambient temperature range:
  Discharge -20°C ~ +60°C
  Charging 0°C ~ +50°C
  Storage -20°C ~ +60°C
  Max. discharge current: 75 A (5 sec.)
• Short-circuit current: 270 A
• Max. charging current: 1.5 A
• Charging voltage:
• Standby operation: 13.7 ~ 13.9 VDC
• Cyclic operation: 14.6 ~ 14.8 VDC
• Self-discharge: on average 3% of capacity per month at 25°C
• Housing material: ABS UL94HB (on special order UL94-V0).
