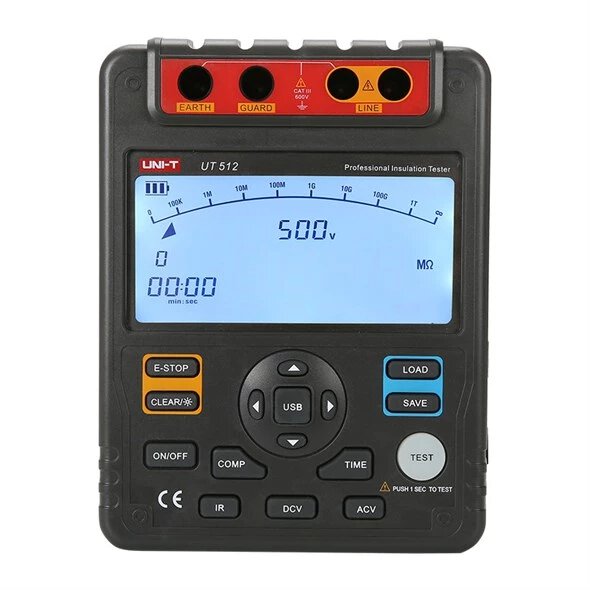

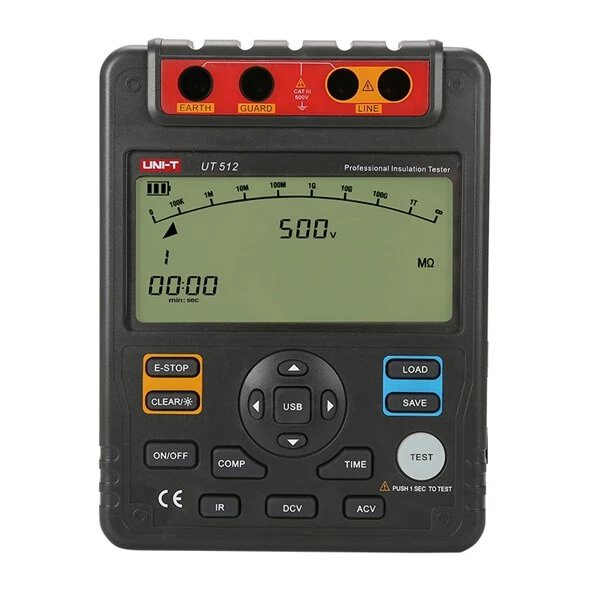

The UT512 model is an insulation tester designed with users requiring a wide measurement range and high functionality in mind - including installers, service technicians of electrical devices, and installation auditors. The device allows for insulation resistance measurements at various test voltages (e.g. 500 V, 1000 V, even up to 2500 V) and AC/DC voltage measurements - making it a universal tool in the field of installation diagnostics.
Technical parameters:
- Insulation resistance
- For test voltage:
- 500 V: 0.5 MOhm ~ 5 GOhm
- 1000 V: 2 MOhm ~ 10 GOhm
- 1500 V: 5 MOhm ~ 20 GOhm
- 2500 V: 10 MOhm ~ 100 GOhm
- Accuracy:
- 100 kOhm ~ 10 MOhm +/- (3%+5)
- 100 MOhm ~ 10 GOhm +/- (5%+5)
- 10 GOhm ~ 100 GOhm +/- (10%+5)
- Short-circuit current: <2 mA
- Test current: 1 ~ 1.2 mA
- Other measurement ranges:
- DC voltage: 30 ~ 600 V +/- (2%+5)
- AC voltage: 30 ~ 600 V +/- (2%+5); 50/60 Hz
- Dielectric absorption
- Polarization index
- Additional features:
- Automatic range switching
- Comparative function
- Low battery indicator
- High voltage warning
- Backlit LCD screen
- Analog bar graph
- Memory records: 18
- Automatic shutdown
- For test voltage:
The UT512 device is suitable for the following situations:
- Insulation measurements in electrical installations (construction, industrial) - checking the condition of insulation of cables, wires, motors, transformers.
- Service and maintenance of machines - verifying whether the insulation has degraded, which may indicate future failures.
- Audits and safety inspections of electrical installations - measurements required by standards, documentation of insulation condition.
- Production and testing of electrical devices - quality control of output in terms of insulation.
- Installations with increased test voltage - if ranges above the standard 500-1000 V are required, the device offers a range up to 2500 V.
Advantages:
- Very wide range of insulation measurements - allows for use in demanding conditions and various installations.
- Advanced insulation analysis functions (PI, DAR, etc.) - which allows not only to determine the insulation resistance but also to qualitatively assess the condition of the insulation.
- Clear and functional design - facilitates work in the field, reading results.
If you need a professional insulation tester that offers a wide measurement range, advanced analytical functions, and a robust design - the UT512 is a very strong proposition. Its capabilities make it suitable for use in service, audit, and industrial settings. However, before purchasing, it is worth ensuring that its ranges, functions, and accessories meet the specific requirements of your work.
- UT512 Meter

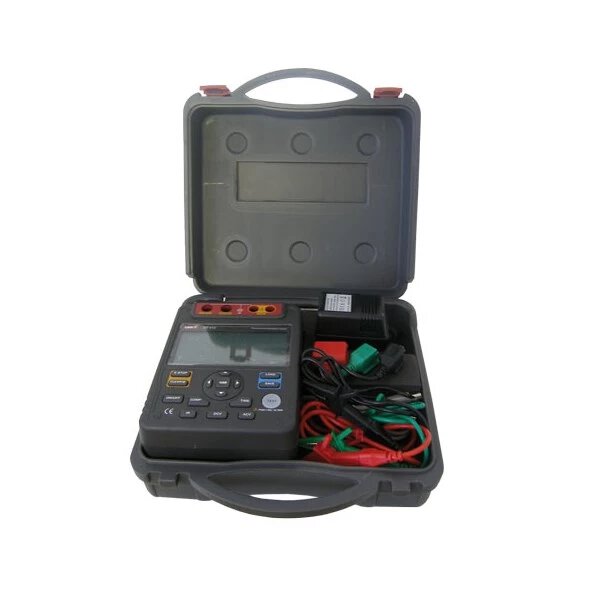

- Transport case

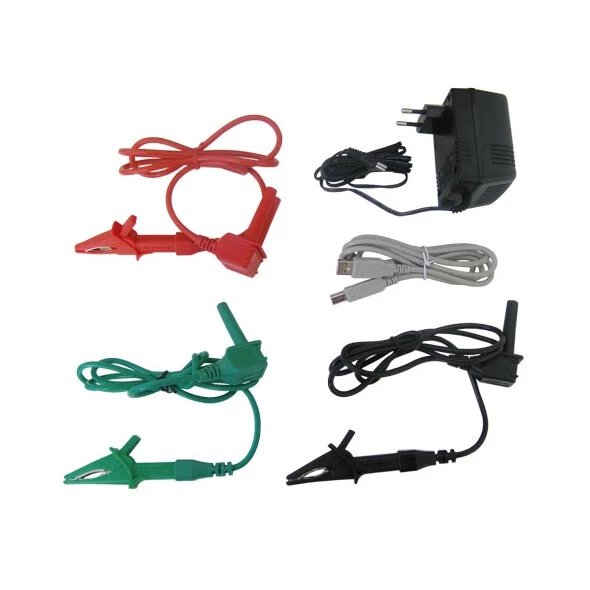

- cables with alligator clips
- Batteries
- USB cable
- external power supply
- 8x 1.5V (LR14)
- 202 x 155 x 94 mm
- 1800
- UT512 Meter
- Transport case
- cables with alligator clips
- Batteries
- USB cable
- external power supply
- 8x 1.5V (LR14)
- 202 x 155 x 94 mm
- 1800
