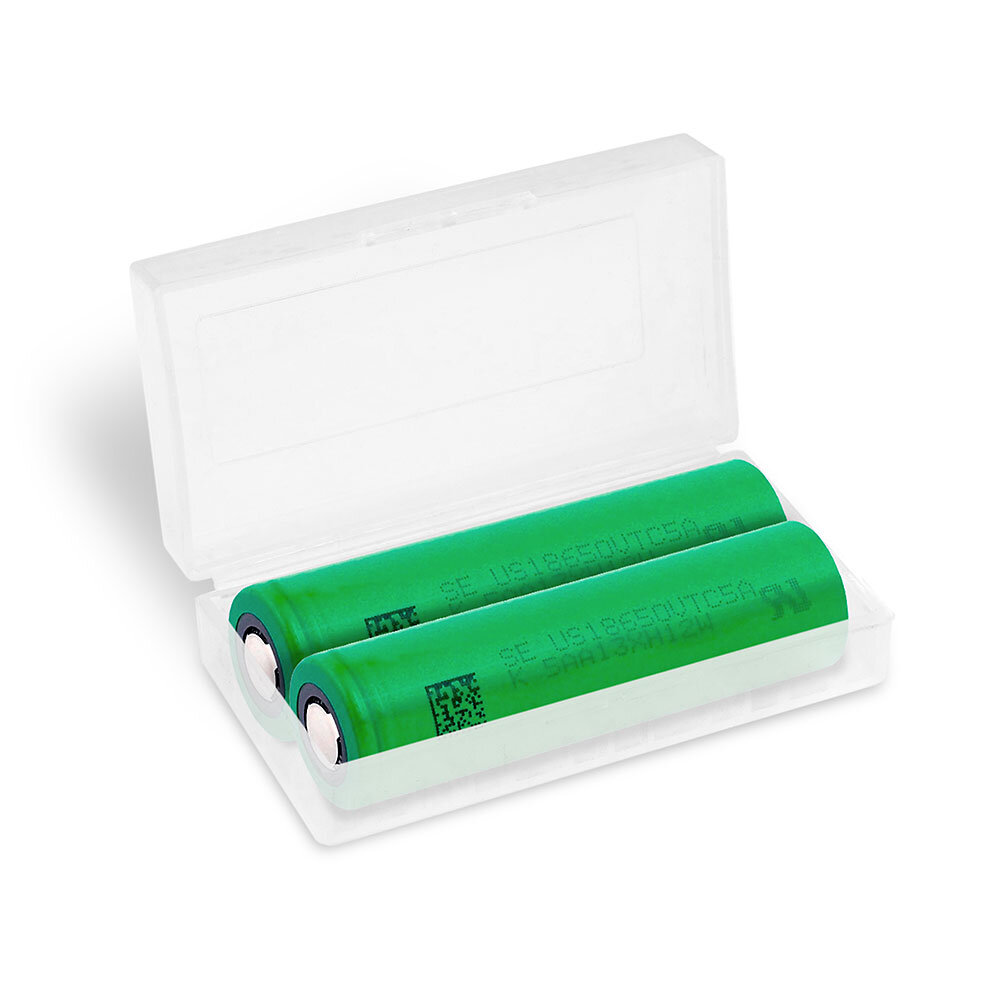

2x rechargeable battery 18650 Li-ion 2600 mAh Sony / Murata US18650VTC5A - BOX / container

product brand:
producer code:
VTC5A
EAN:
5903205772046

Packed in a reusable plastic box
high current - maximum discharge current using thermal protection - 35A
nominal voltage: 3.6V
typical capacity: 2600mAh
dimensions: 18,35mm x 65,20mm

View full product description
wish list
2x rechargeable battery 18650 Li-ion 2600 mAh Sony / Murata US18650VTC5A - BOX / container
2x rechargeable battery 18650 Li-ion 2600 mAh Sony / Murata US18650VTC5A - BOX / container
10,60 € gross 10,60 € net
Currently unavailable
Notify me when available
We will send a notification of availability to the email address below

icon
You May Also Like
>

2x original 18650 Sony / Murata US18650VTC5A Li-ion cell (without protection) with high maximum discharge current - 20A.

With the use of additional thermal protection (e.g. on the device side), the battery can be discharged with a continuous current of 35A.

The sold battery does not have electronic protection against overcharging and deep discharge.
Lithium batteries in sizes 18650 with protection are available here.

REMARK!
When using lithium batteries, they should be used together with PCB protection systems or BMS battery management systems, which  ensure the safety of their use - they protect the cells against overcharging, overheating, excessive discharge and short circuit, as well as have a positive effect on their service life.

Remember that by purchasing a cell without protection, you accept the reservation contained in the regulations of point 6.7.

Precautions:

- high-quality chargers with charging cut-off at a voltage not higher than 4.2V should be used to charge the battery
- do not allow the battery to discharge below 2.5V
- do not discharge the battery with currents higher than those specified in the specification below
- do not charge the battery with currents higher than those specified in the specification below
- do not short-circuit the battery
- do not transfer with metal elements (risk of short circuit and burns)
- do not allow the battery to overheat above the temperatures provided by the manufacturer
- do not use batteries with damaged cover/foil
- do not use batteries with damaged or dented housing
- do not allow contact with water and other liquids
- do not solder plates or wires using a regular soldering iron

Product features 2x rechargeable battery 18650 Li-ion 2600 mAh Sony / Murata US18650VTC5A - BOX / container
Model / Manufacturer Code
Murata / US18650VTC5
Nominal Voltage [V]
3,60
Battery capacity [mAh]
2600
Minimum capacity [mAh]
2500
Charging [A]
b.d.
Maximum recommended charging current [A]
2,500
Maximum Discharge Current (Continuous) [A]
  • 20,00(bez zabezpieczenia termicznego)
  • 35,00(wyłącznie przy zastosowaniu zabezpieczenia termicznego 80°C)
Maximum Charging Voltage [V]
  • 4,20
Minimum cut-off voltage [V]
2,50
Current protection tripping threshold [A]
b.d.
Diameter [mm]
18,35
Height [mm]
65,2
Mass [g / szt.]
48,0
Product features 2x rechargeable battery 18650 Li-ion 2600 mAh Sony / Murata US18650VTC5A - BOX / container
Model / Manufacturer Code
Murata / US18650VTC5
Nominal Voltage [V]
3,60
Battery capacity [mAh]
2600
Minimum capacity [mAh]
2500
Charging [A]
b.d.
Maximum recommended charging current [A]
2,500
Maximum Discharge Current (Continuous) [A]
  • 20,00(bez zabezpieczenia termicznego)
  • 35,00(wyłącznie przy zastosowaniu zabezpieczenia termicznego 80°C)
Maximum Charging Voltage [V]
  • 4,20
Minimum cut-off voltage [V]
2,50
Current protection tripping threshold [A]
b.d.
Diameter [mm]
18,35
Height [mm]
65,2
Mass [g / szt.]
48,0
