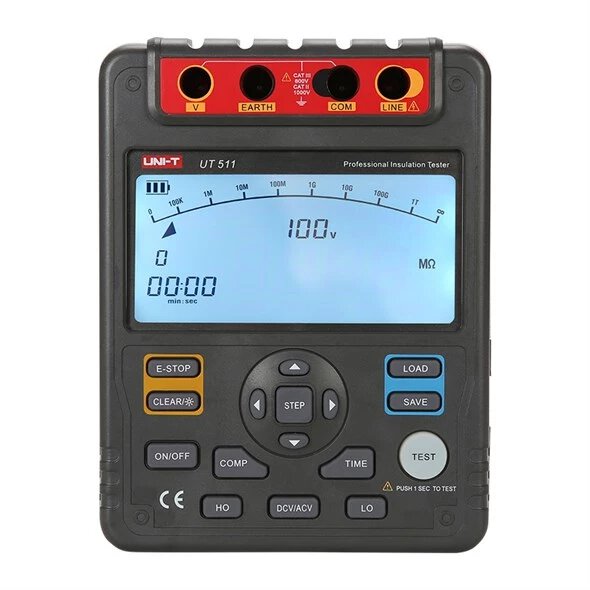

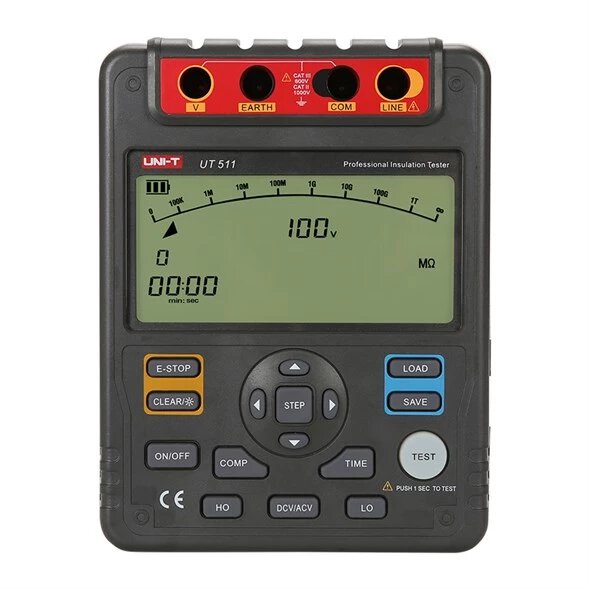

The UT511 is an advanced insulation meter designed to test the insulation resistance of installations, electrical equipment, cables and components where insulation tightness and electrical safety testing is required. The device allows for insulation measurements under test voltages up to 1000 V DC, AC/DC voltage measurement, as well as low resistance measurement in continuity mode.
Technical parameters:
- Insulation:
- Test voltage 100 V:
- 0.1 MOhm ~ 99.9 MOhm +/- (3%+5)
- 100 MOhm ~ 500 MOhm +/- (5%+5)
- Test voltage 250 V:
- 0.5 MOhm ~ 99.9 MOhm +/- (3%+5)
- 100 MOhm ~ 999 MOhm +/- (5%+5)
- 1 GOhm ~ 1.99 GOhm +/- (5%+5)
- Test voltage 500 V:
- 1 MOhm ~ 99.9 MOhm +/- (3%+5)
- 100 MOhm ~ 999 MOhm +/- (5%+5)
- 1 GOhm ~ 3.99 GOhm +/- (5%+5)
- Test voltage 1000 V:
- 2 MOhm ~ 99.9 MOhm +/- (3%+5)
- 100 MOhm ~ 999 MOhm +/- (5%+5)
- 1 GOhm ~ 10 GOhm +/- (5%+5)
- Test Current Amperage: 1mA~1.2mA
- Short Circuit Current: <2mA
- Other measuring ranges:
- DC voltage: 30~1000V +/- (2%+3)
- AC Voltage: 30~750V +/- (2%+3)
- Small resistances: 0.1 Ohm~999.9 Ohm +/- (1%+3)
- Additional features:
- Automatic change of measuring ranges
- Dielectric Absorption Test
- Polarity indexation
- Comparison function
- Low battery indicator
- High Voltage Warning
- Backlit LCD screen
- Buzzer
- Analog Bargraph: 30 Segments
- Automatic shutdown
- Test voltage 100 V:
Applications:
- Diagnostics and service of electrical installations - checking the insulation of cables, wires, electrical apparatus.
- Control and maintenance work in industrial plants, where the insulation condition of electrical equipment and cabinets is measured.
- Electrical audits and measurements for compliance with standards (e.g. insulation in machines, installations).
- Installation and commissioning of the installation - verification of the correctness of insulation before commissioning.
Advantages:
- Versatile measuring range (from a few hundred kilo-ohms to giga-ohms), which makes the device useful in both standard and demanding applications.
- Advanced diagnostic functions (PI, DAR, COMP) allow you to better assess the condition of the insulation than just measuring a single resistance value.
- An easy-to-read display and additional gauges (bar-graph) make it easier to work in the field and in low light.
If you are looking for a professional insulation meter with a wide measuring range, advanced features and the ability to measure both insulation and voltage or continuity resistance - the UNI-T UT511 is a very solid choice. Ideal for service teams, installers, industrial plants or electrical system auditors. However, before you buy, make sure that its specifications correspond to the specific requirements of your installation (test voltage, resistance ranges, standards).

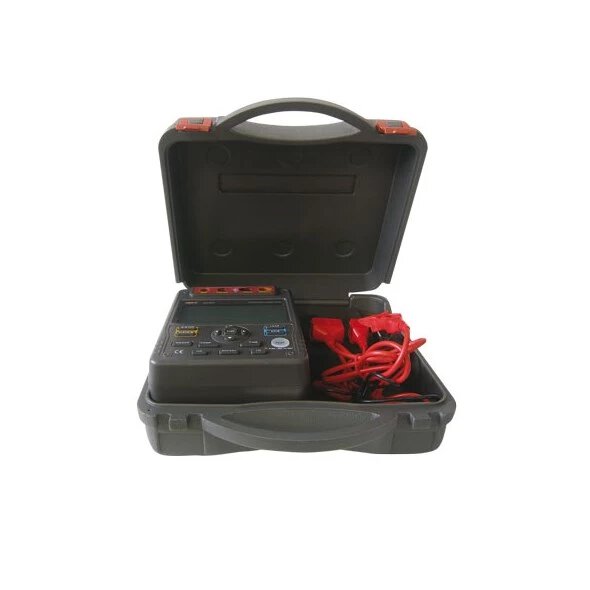

- Miernik UT511

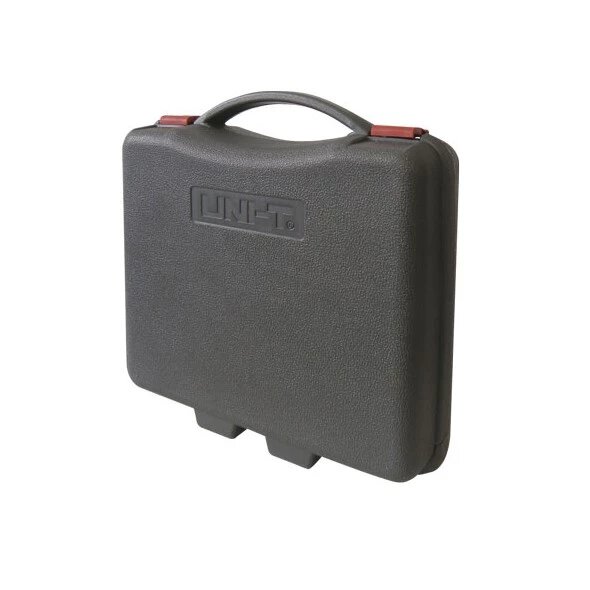

- Walizka transportowa
- przewody z krokodylkami
- Baterie
- 8x 1.5V (LR14)
- 202 mm × 155 mm × 94 mm
- 1200
- Miernik UT511
- Walizka transportowa
- przewody z krokodylkami
- Baterie
- 8x 1.5V (LR14)
- 202 mm × 155 mm × 94 mm
- 1200
