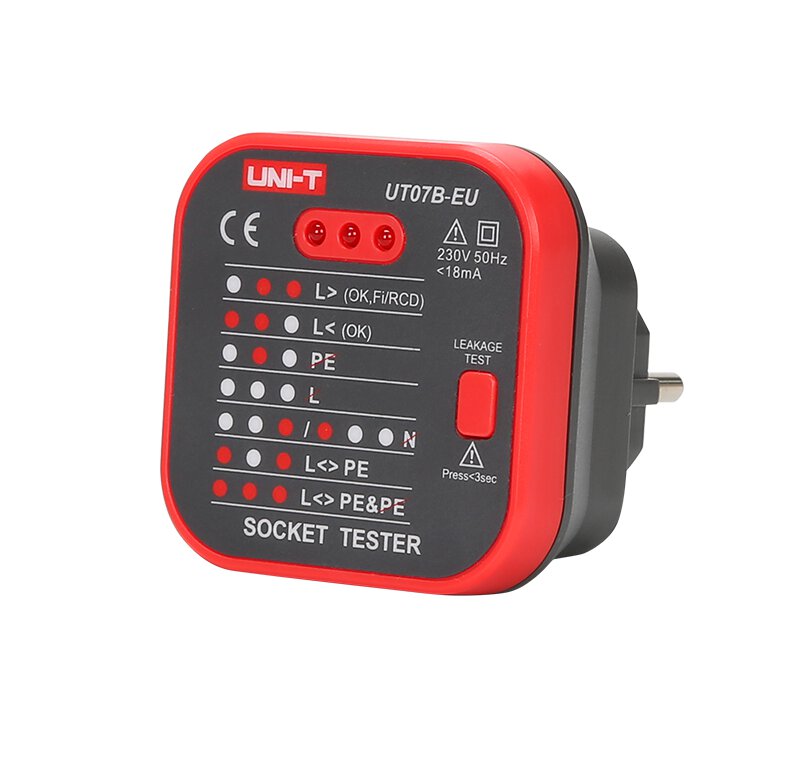

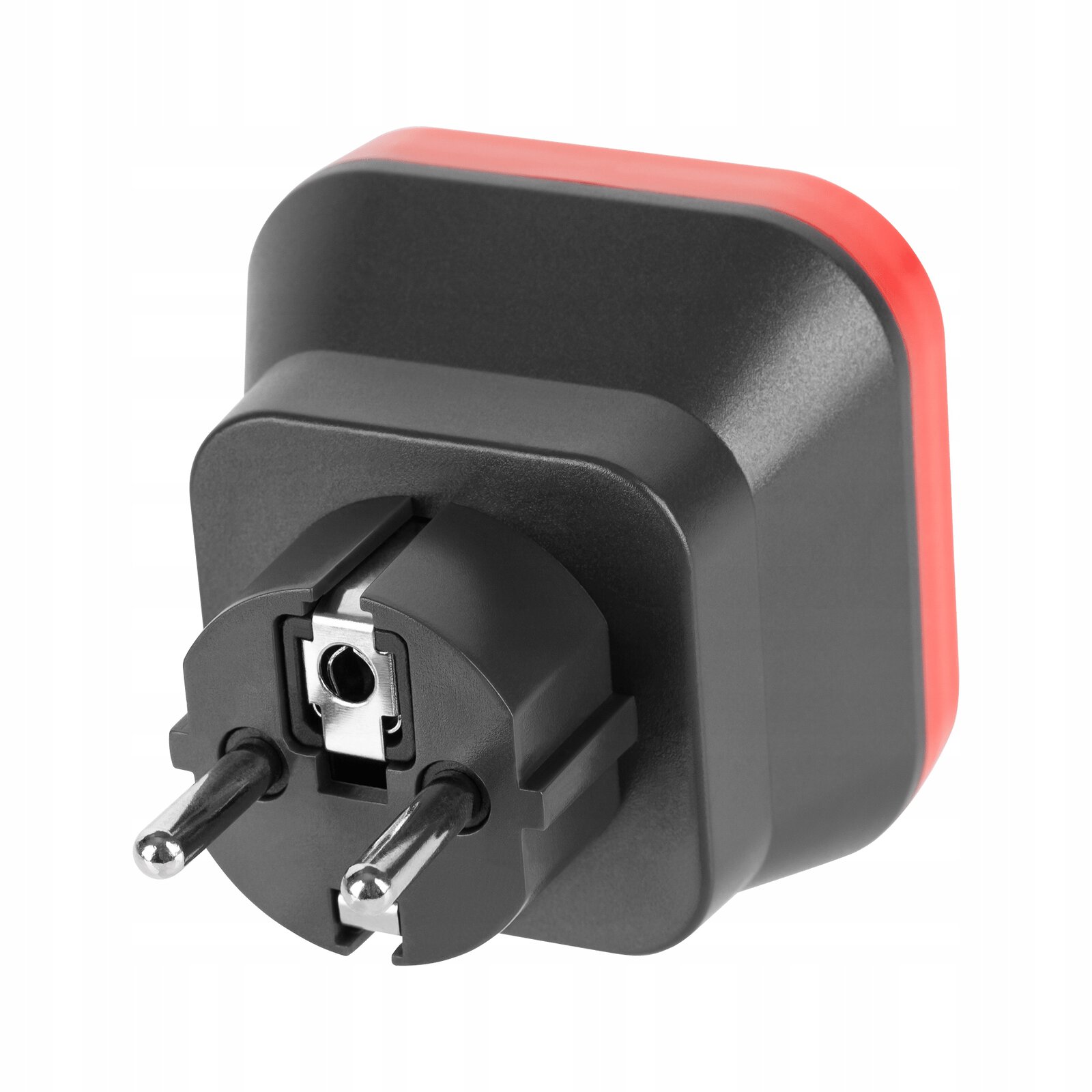

The UNI-T UT07B-EU socket tester is an intelligent device that allows you to quickly and safely check the correctness of the wiring of the electrical socket. Thanks to the use of LEDs and the residual current device (RCD) testing function, the device allows you to detect errors in the electrical installation, such as the lack of a protective conductor (PE), the swapping of phase (L) and neutral (N) wires or a lack of voltage.

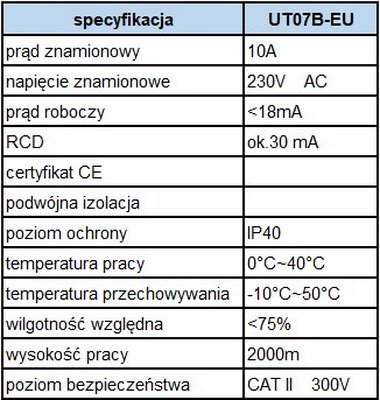

Product Features:
- Rated Voltage: 230V AC +/-10%
- Current frequency: 50 Hz
- Current consumption: <18 mA
- Functions: Wiring error detection (L, N, PE),
RCD test at ~30 mA leakage current, LED indicator for 8 different connection states - Ingress protection: IP40
- Operating Temperature: 0 C ~ 40 C
- Dimensions: 65 × 65 × 61 mm
- Weight: 80 g
- Standards: CE, CAT II 300V
Use:
The device is ideal for electricians, installers and individual users to quickly check the correct connection of network sockets in homes, offices or workshops.
Product features Socket tester UT07B UNI-T
The set includes
- Tester gniazdek UT07B-EU
Dimensions [mm]
- 65 × 65 × 61 mm
Scales [g]
- 80
Warranty [miesiące]
24
Product features Socket tester UT07B UNI-T
The set includes
- Tester gniazdek UT07B-EU
Dimensions [mm]
- 65 × 65 × 61 mm
Scales [g]
- 80
Warranty [miesiące]
24
