Product Benefits
- Optimized lighting requirement met with universal and programmable sensor
- Easy adjustment of sensor range, light detection, sustain time, and dimming function
- Possibility to turn off the sensor operation by performing the appropriate sequence of switching the luminaire power on and off
- Vent valve to optimize air exchange, without compromising IP protection
- High versatility thanks to selectable power levels (Multi Lumen) on the housing
- Robust cable gland with integrated water barrier function
- Safe and very uniform lighting thanks to frosted tempered glass lampshade
- Bright, resistant and durable
- Energy savings of up to 90% (compared to floodlights with halogen lamps)
- No upper light scattering coefficient (0%) when mounted at 0°
Areas of application
- Replacement for floodlights for halogen bulbs
- Outdoor use (IP65)
- Construction complies with EN 60598-2-24 for fire hazard, e.g. through dust accumulation
- Public areas
- Building facades
- Construction sites
- Car park
- Gardens and balconies
Product features
- Universal motion and light sensor
- 350° swivel and 200° tilt sensor
- High luminous efficacy: up to 145 lm/W
- Protection Grade: IP65
- Pre-installed 1 m flexible cable (H05RN-F), 3 x 1.0 mm²
- Reflector, symmetrical light distribution with 100° x 100° beam angle
- Mounting clamps with 30° angle and wide swivel area
- Integrated voltage power supply, suitable for 220 - 240 V AC

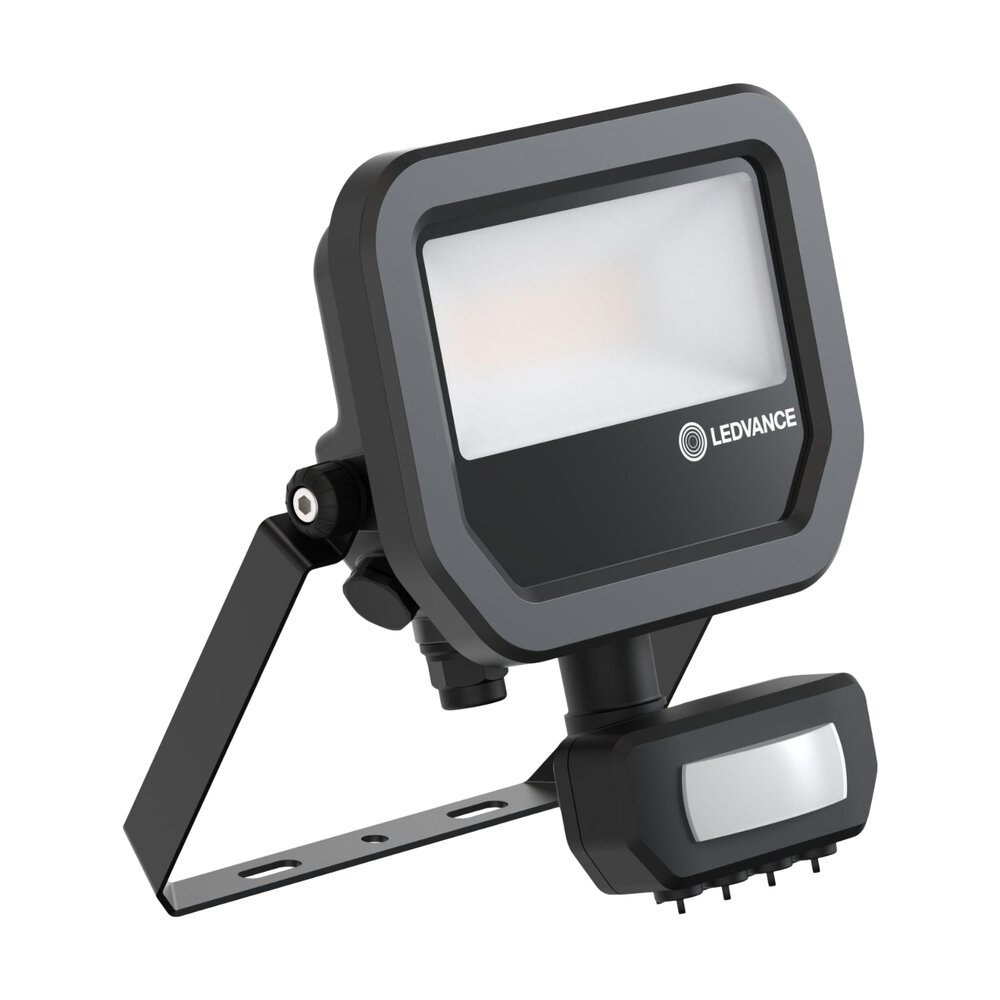

Product features Ledvance floodlight 8W 4000K black SENSOR
Total Output Power [W]
- 8
Voltage [V]
220-240
Frequency range
b.d.
Light output [lm]
1200
Light colour [K]
4000
Colour
black
Material
- aluminium
Operating Temperature [°C]
-30 ~ +50
Ingress Protection (IP)
IP65

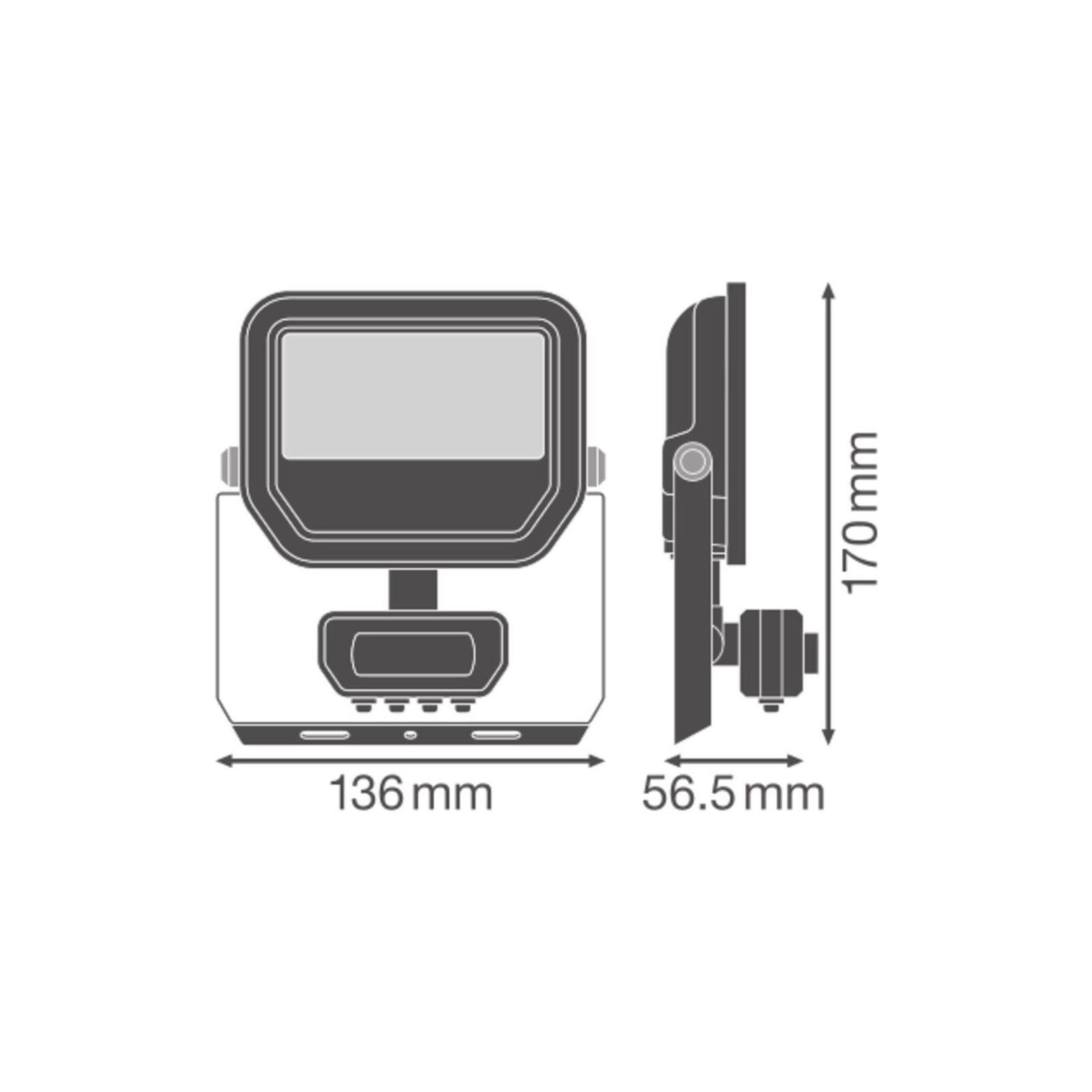

Dimensions (W x D x H) [mm]
136 x 57 x 170
Product features Ledvance floodlight 8W 4000K black SENSOR
Total Output Power [W]
- 8
Voltage [V]
220-240
Frequency range
b.d.
Light output [lm]
1200
Light colour [K]
4000
Colour
black
Material
- aluminium
Operating Temperature [°C]
-30 ~ +50
Ingress Protection (IP)
IP65
Dimensions (W x D x H) [mm]
136 x 57 x 170
