The charger is designed for charging popular cylindrical lithium-ion batteries. Charging 1 or 2 batteries simultaneously, with a current of 1A each.
In a small, extremely compact housing, a specialized circuit has been fitted that safely and quickly charges most Li-ion batteries 3.6V / 3.7V, including popular 18650 batteries (also "long" ones with electronic protection).

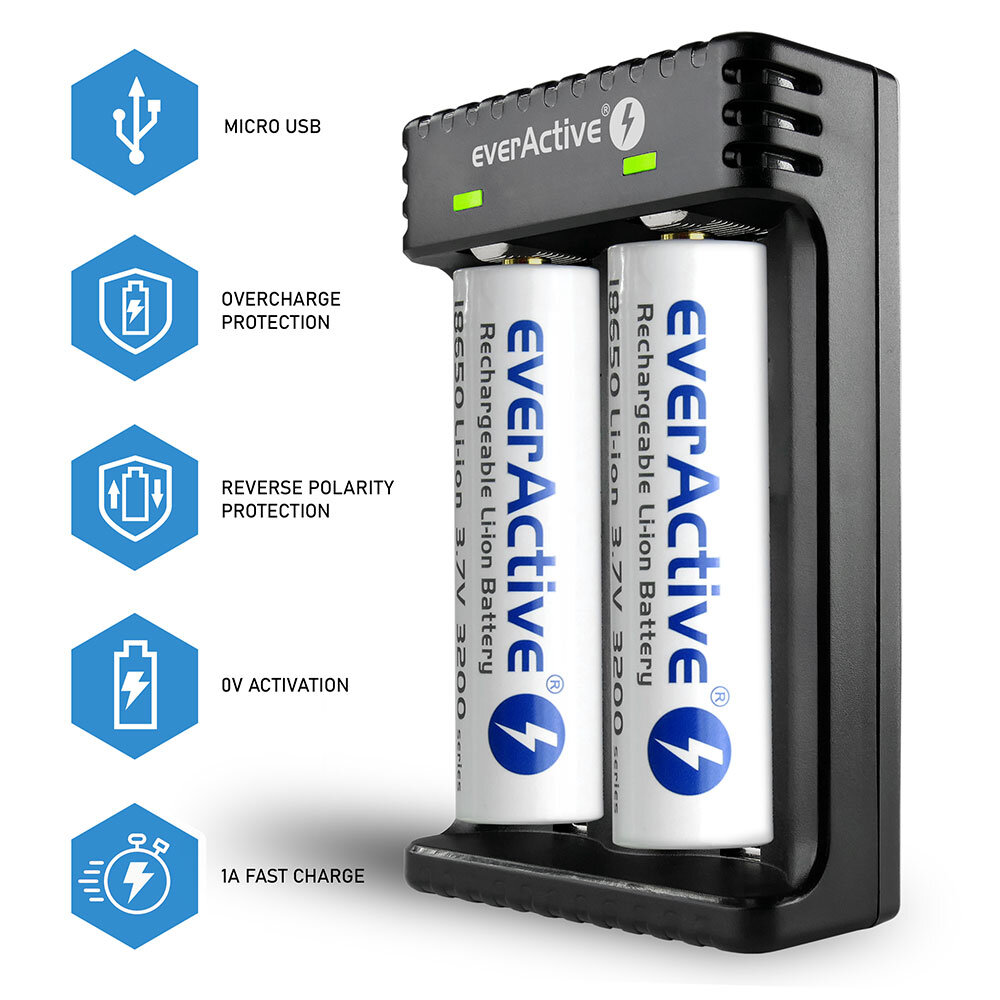

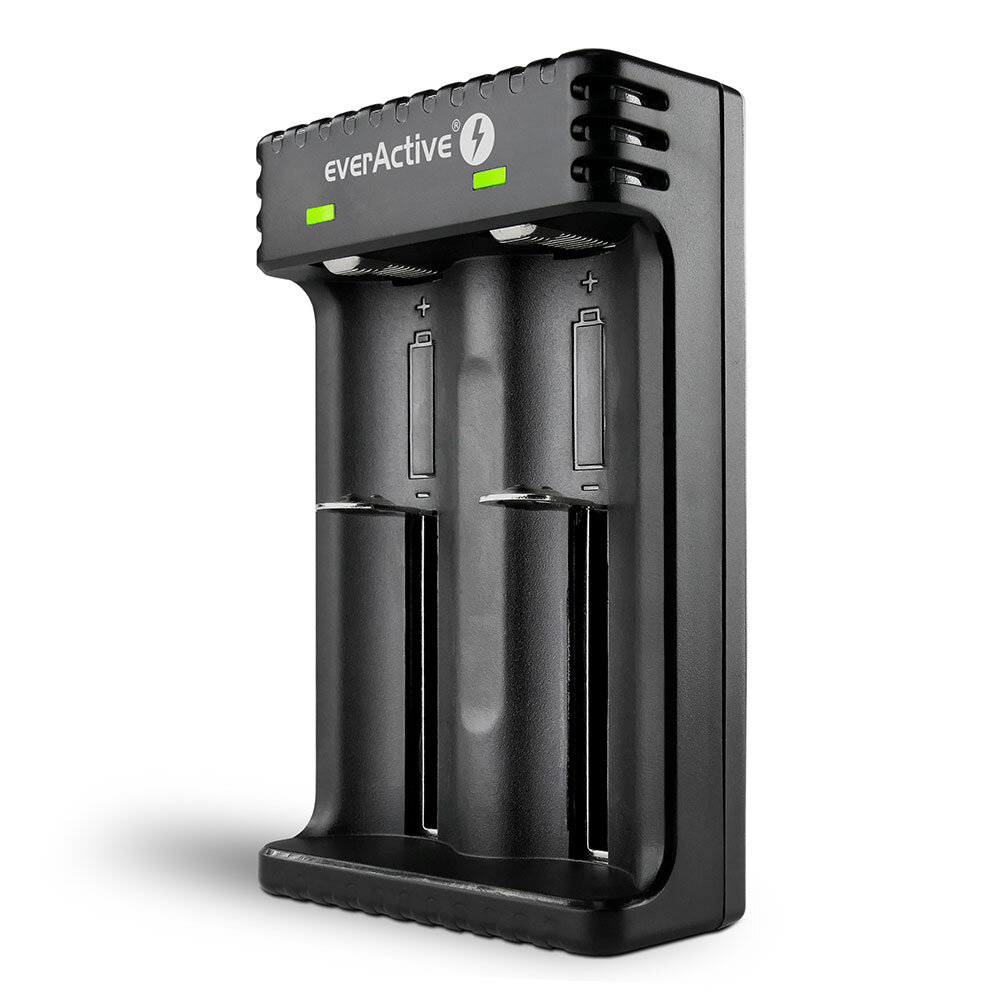

everActive LC-200 is a simple yet very reliable charger for two cells / batteries. The device uses a microprocessor to control the charging process. The charger is distinguished in this segment by a relatively high maximum charging current of 1000 mA for each installed cell.
Ładowarka LC-200 allows charging two typical 18650 2200 mAh batteries in just 2.5h.
Supported batteries:
- lithium-ion Li-ion 3.6V/3.7V,
- sizes: 10440, 14500, 14650, 17500, 17670, 18350, 18500, 18650, 20700, 21700 - only versions without protection, 22650, 25500, 26500, 26650, 16340 R-CR123e and others with a length of 28-72 mm and a diameter of up to 26 mm.
We invite you to check out the presentation of the everActive LC-200 charger
The everActive LC-200 charger can be powered from any USB power supply (5V/2A), as well as a mobile phone charger with a micro USB connector. A 0.5 m micro USB cable is included in the set
The charger works perfectly with everActive USB power supplies SC-200, SC-300, SC-400 and higher.
The charger has an advanced, dedicated controller (microprocessor) that controls the charging process.
Key features of the product:
- charging current up to 1A /cell,
- revival of deeply discharged batteries <2.9V - all batteries below this voltage are charged with a minimal current (approx. 120 mA) until a safe voltage is reached,
- advanced charging algorithm: TC (120 mA) -> CC (1000 mA) -> CV (..100 mA),
- precise termination of the charging process at a voltage of 4.20V and a current of 100 mA, ensuring full and safe charging of the Li-ion battery,

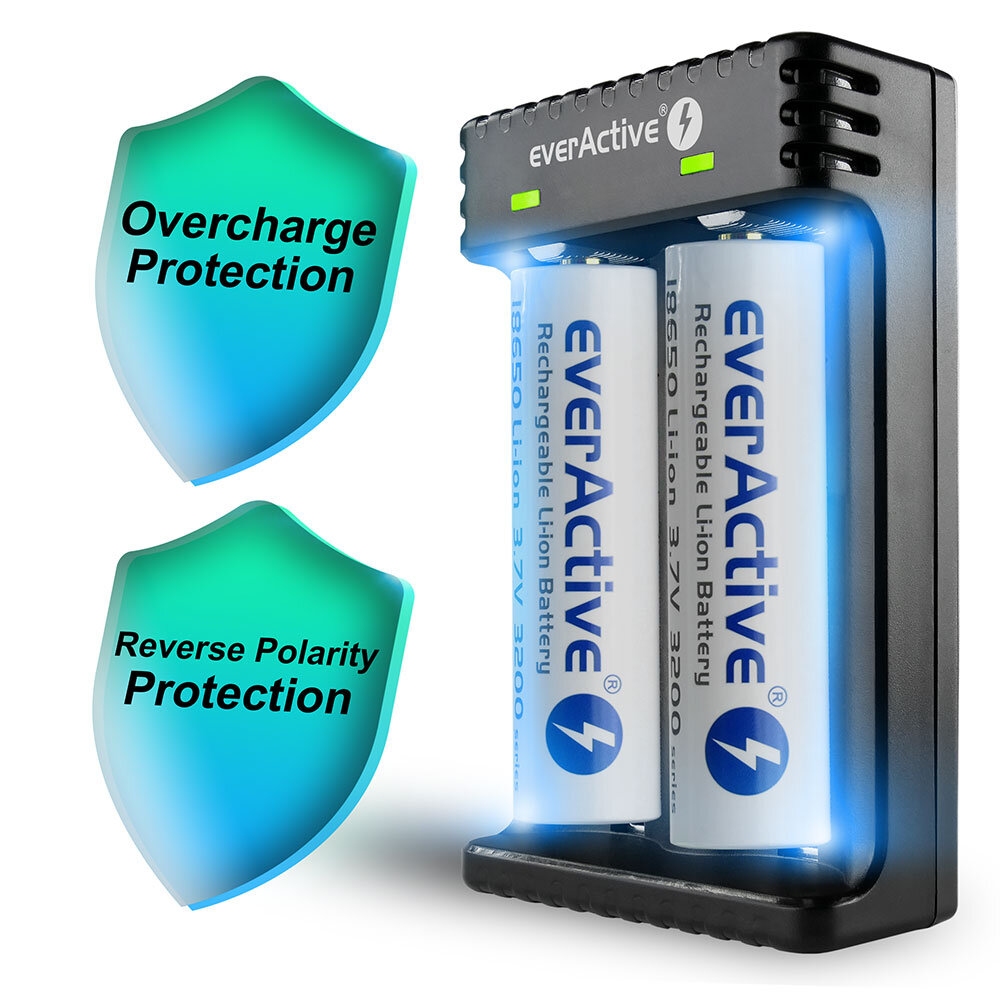

- protection against overcharging batteries, short circuit protection, protection against reverse polarity of the installed battery.
Included:

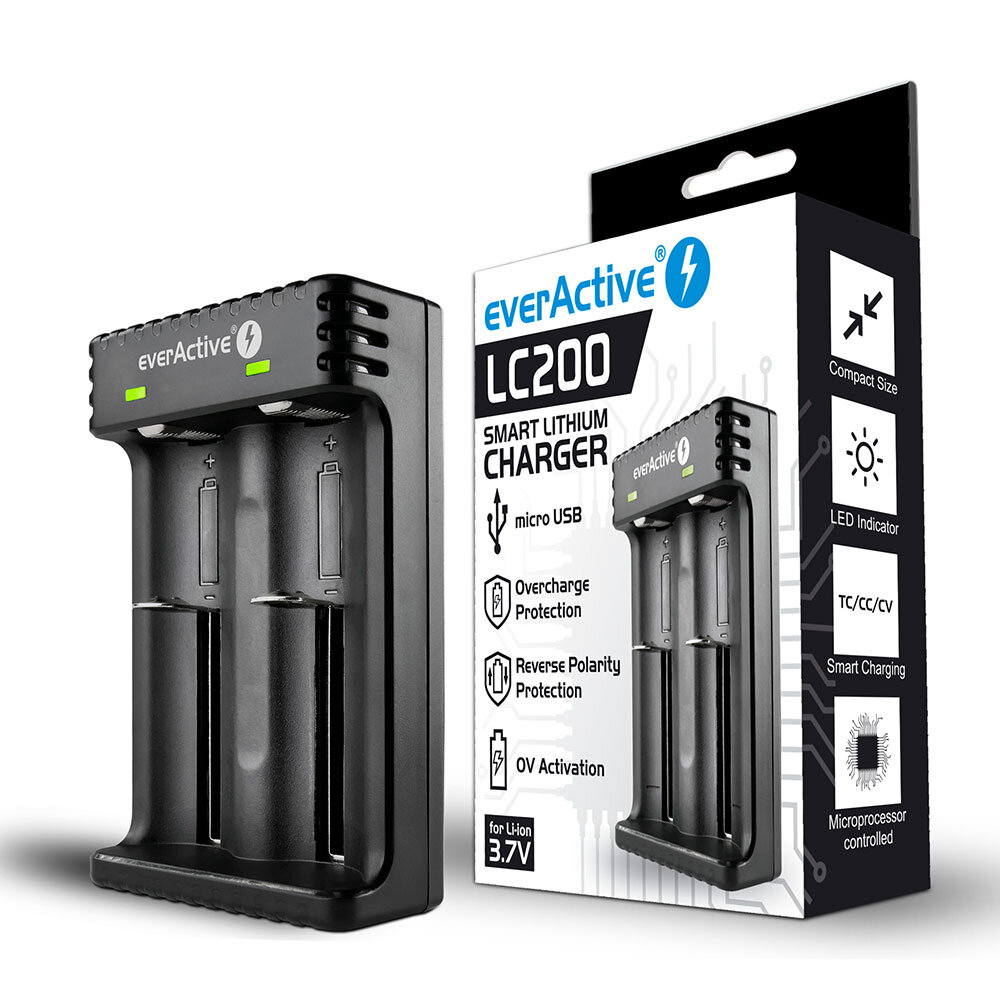

- everActive LC-200 charger packed in a factory box,
- USB-micro USB cable 50 cm,
- user manual.
The standard set does not include a USB power supply and batteries.
- Li-ion batteries 3.6-3.7V, unprotected
- Li-ion batteries 3.6-3.7V, protected (with PCM/PCB)
- 5 V DC / 2000 mA
- Processor-controlled TC/CC/CV for Li-ion
- 1000mA ±50mA
- Li-ion: 4.2V ±0.05V
- The charger has a 2-color LED indicating the operating status of the charger
- Before the charger overheats
- Against overload / short circuit
- Before reverse polarity of cells
- Before reloading
- Charge
- LC200 charger, 0.5m micro USB cable
