Maintenance-free, leak-proof Vrla -type battery Made in AGMtechnology. Designed for both cyclic and buffer work. Can work in any position
Vrla -valve Regulated Lead acid: Rechargeable lead-acid battery regulated by valve.
AGM -Absorbed glass Mat: TYPE OF Vrla Battery in which the electrolyte is absorbed in the separator made of glass mat.
Apply:
-UPS, Computer emergency power,
-Alarm systems, fire, industrial TV,
-Monitoring systems,
-Emergency lighting,
-Emergency power supply for automation, security,
-Telephone, radiocommunication panels,
-Cash registers, fiscal printers,
-Solar battery systems,
-Navigation devices,
Toys.
| |
| Technical data | |
| Voltage | 12v |
| Capacity | 7, 0Ah |
| Dimensions | Length: 151mm Width: 65mm Height: 94mm |
| Total height (with connectors) | 100mm |
| Type of connectors | Fast-On |
| Weight | 2, 15kg |
| Internal resistance (Full charge, 25 °C) | 21Mω |
| Constant voltage Charging (25 °C) | Buffer operation: 13, 6V-13, 8V Cyclic operation: 14, 5V-14, 9V |
| Maximum charging current | 2, 25A |
| Capacity (25 °C) | 20-hour: 7, 0Ah 10-hour: 6, 65Ah 5-hour: 5, 88Ah 1-hour 4, 20Ah |
| Influence of temperature on the capacity | 40 °C: 102% 25 °C: 100% 0 °C: 85% -15 °C: 62% |
| Self discharge (25 °C) | 20-hour: 4, 5Ah 3 months: 91% 6 months: 82% 9 months: 64% |

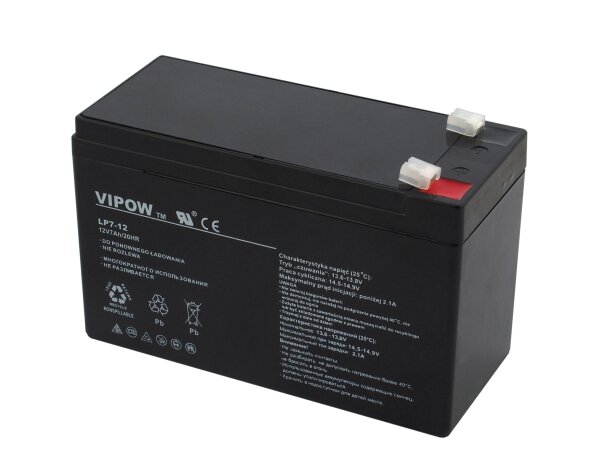

Product features Gel battery AGM Vipow 12V 7Ah
Voltage [V]
12,0
Capacity
7.0Ah
Dimensions (W x D x H) [mm]
65 x 151 x 94
Scales [g]
- 2150
Capacity (25°C)
20-hour~7.0Ah; 10-hour~ 6.65Ah; 5-hour~ 5.88Ah; 1-hour~ 4.20Ah
Internal resistance [mOhm]
21
DC charging
buffer operation: 13.6V - 13.8V; cyclic operation: 14.5V - 14.9V
Charging [A]
2,250
Connectors
fast-on T2
Other important product features
- Effect of temperature on capacitance: 40°C~ 102%; 25°C~ 100%; 0°C~ 85%; -15°C~ 62%
- Self-discharge (25°C): 20-hour~4.5Ah; 3 months~ 91%; 6 months~ 82%; 9 months~ 64%
Product features Gel battery AGM Vipow 12V 7Ah
Voltage [V]
12,0
Capacity
7.0Ah
Dimensions (W x D x H) [mm]
65 x 151 x 94
Scales [g]
- 2150
Capacity (25°C)
20-hour~7.0Ah; 10-hour~ 6.65Ah; 5-hour~ 5.88Ah; 1-hour~ 4.20Ah
Internal resistance [mOhm]
21
DC charging
buffer operation: 13.6V - 13.8V; cyclic operation: 14.5V - 14.9V
Charging [A]
2,250
Connectors
fast-on T2
Other important product features
- Effect of temperature on capacitance: 40°C~ 102%; 25°C~ 100%; 0°C~ 85%; -15°C~ 62%
- Self-discharge (25°C): 20-hour~4.5Ah; 3 months~ 91%; 6 months~ 82%; 9 months~ 64%
