EverActive UC800
is a multi-channel, universal charger that has as many as ten independent channels! Eight channels are used to charge cylindrical Ni-MH, Li-ion, Li-HV and Li-FePO4 batteries. The other two channels are used to charge 9V (6F22) batteries.
We invite you to familiarize yourself with the presentation of the everActive UC-800 charger
The UC800 charger is focused on maximum compatibility - we can charge any Ni-MH batteries in the following sizes: R6 AA, R03 AAA, R14 C, SC, and 9V batteries. In addition, the UC800 also supports Li-ion batteries with a voltage of 3.6/3.7V, their high-voltage alternative - Li-HV, which has a rated voltage of 3.85V and Li-FePO4 batteries. For Lita-based batteries, the charger will support sizes such as: 10440, 14500, 14650, 17500, 17670, 18350, 18500, 18650, 20700, 21700- also protected, 22650, 25500, 26500, 26650, 16340 R-CR123e. The maximum span of the sledge is as much as 76mm, which will ensure the ability to charge the increasingly popular 20700 and 21700 batteries in the version with electronic protection.
Key features:
- ten independent charging channels. Eight cylindrical cells for charging and two channels for 9V (6F22) batteries,
- support for all popular cylindrical cells - including the so-called FLAT TOP - with a flat plus and 20700/21700 batteries with protection, the maximum cell length is up to 76mm!
- 0.00V battery resuscitation function - the charger can revive almost any battery,
- microprocessor-controlled intelligent, precise CC/CV charging process for Li-ion / Li-FePO4 and CC with dV/PVD for Ni-MH and 6F22/9V,
- support for protected (PCB) and unprotected cells, also with a flat top plus ,
- adjustable charging current for lithium cells: 8x 0.8A, 6x 1A, 2x 2A max, for Ni-MH we can choose from charging currents such as: 8x 0.2/0.5/0.8/1A, for 6F22/9V batteries the charging current is 60mA,

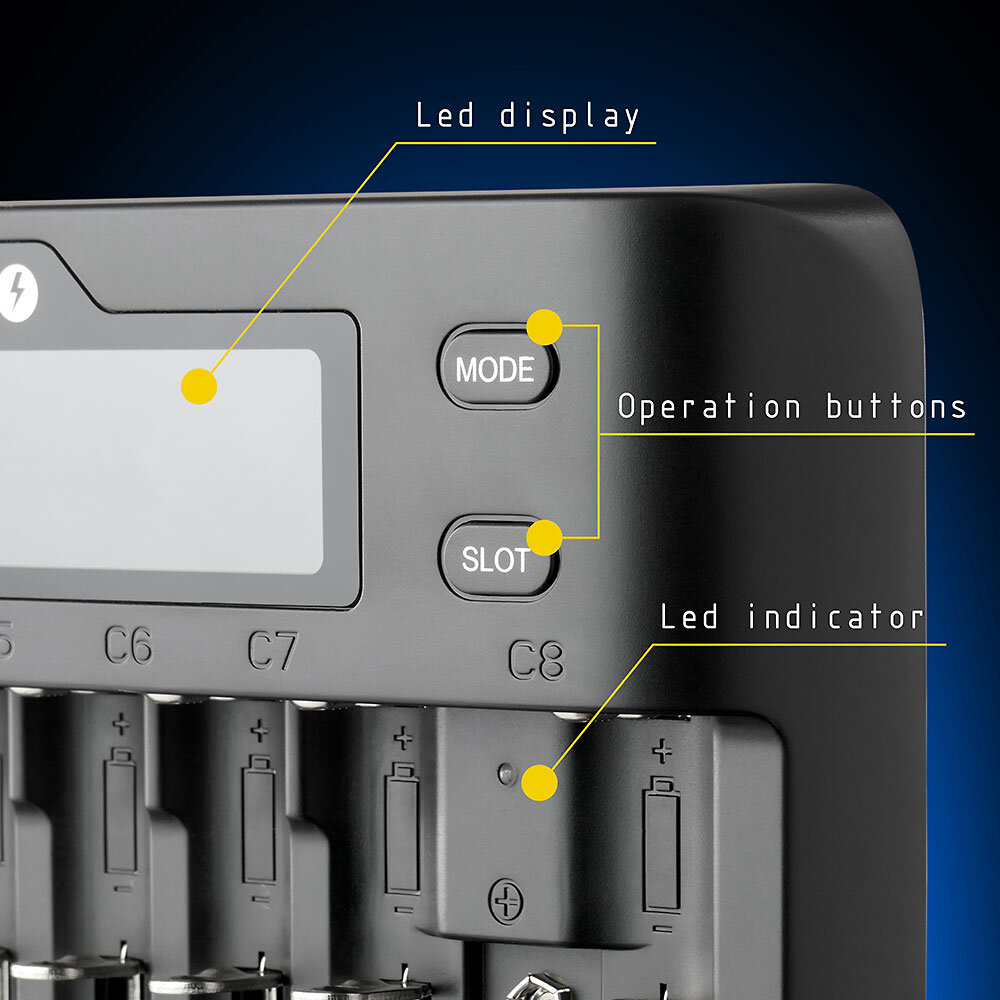

- large, easy-to-read display with backlight, shows all the most important values on an ongoing basis,
- a set of protections: against overcharging, against reverse polarity of cells, detection of damaged cells.
Li-ion/Li-HV and LiFePO4 batteries are charged very accurately using the CC/CV method with a termination of approx. 100mA. This guarantees complete safety and full charging of any battery, even heavily degraded or with low capacity.
Ni-MH and 9V batteries are charged using the CC (constant current) method with very precise dV / PVD detection - charging is completed only when the maximum voltage on the battery is reached (the value of this voltage may be different for each battery).
An advanced microprocessor and a number of built-in protections will ensure optimal and safe charging of each battery.
Wide compatibility is not the only advantage of this charger. Large, easy-to-read display with backlight shows all the most important values at all times:
The charger will support any cylindrical battery with a length of 33-76 mm and a maximum diameter of up to 30 mm.
In the UC800, you can easily charge the popular 18650 batteries, both with and without electronic protection. Protected 20700/21700 batteries are also no problem for the company.

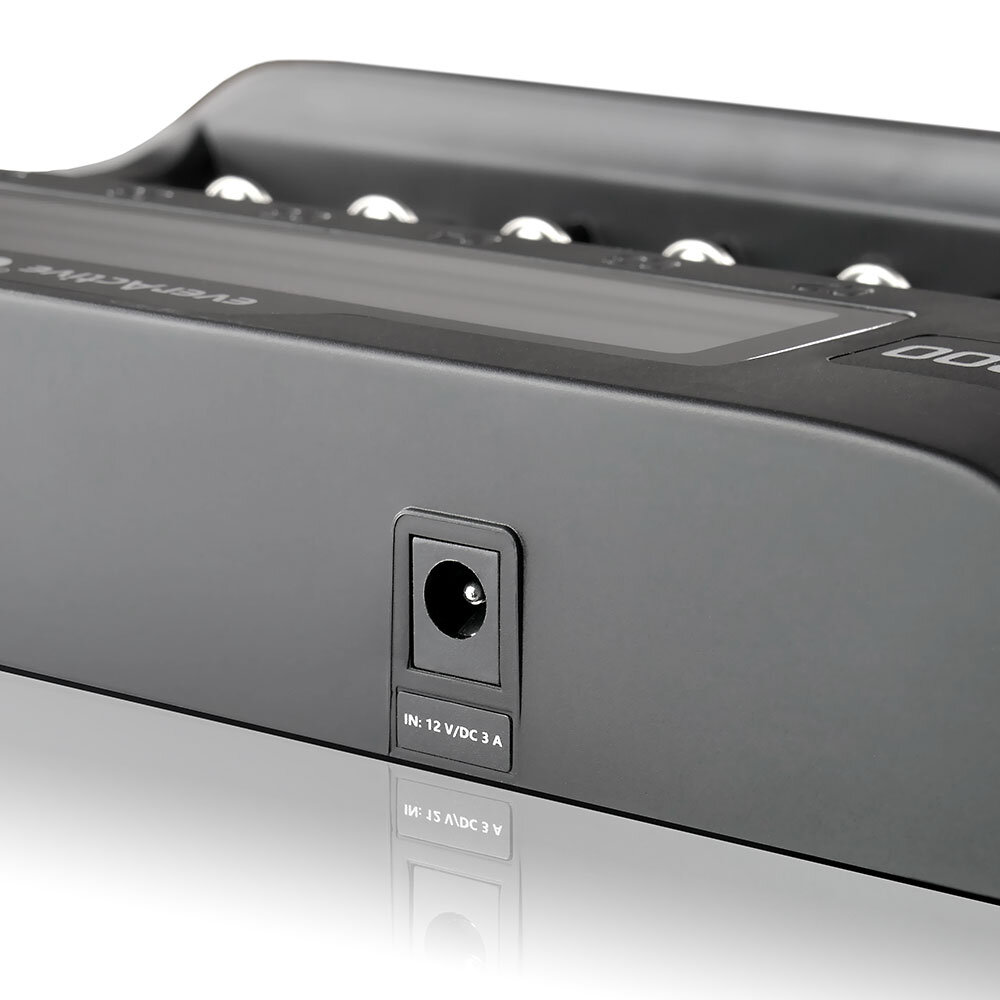

The charger has an input voltage: 12V DC, the set includes a 12V DC / 3A power adapter, optionally a car adapter is available for purchase.
- Li-ion batteries 3.6-3.7V, protected (with PCM/PCB)
- Li-ion batteries 3.6-3.7V, unprotected
- Li-ion batteries 3.8-3.85V, protected (with PCM/PCB)
- Li-ion batteries 3.8-3.85V, unprotected
- LiFePO4 Batteries
- Ni-MH batteries
- 6F22/9V batteries
- 12 V DC / 3000 mA
- Processor-controlled CC/CV for Li-ion/Li-FePO4
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
- Charge
- Adjustable - 200mA - 2000mA per channel/slot for Li-ion / Li-FePO4(2000mA tylko dla kanałów 1 i 8)
- 200mA - 1000mA per channel / slot for Ni-MH
- 60mA - for 9V batteries
- Li-ion 4.2V ±0,05V
- Li-FePO4 3.65V ±0.05V
- Ni-MH ~1.45V-1.55V dV/PVD
- Li-HV 4.35V ±0,05V
- Before reloading
- Before over-discharging cells
- Against overload / short circuit
- Overload
- Thermal - before overheating of batteries
- Before reverse polarity of cells

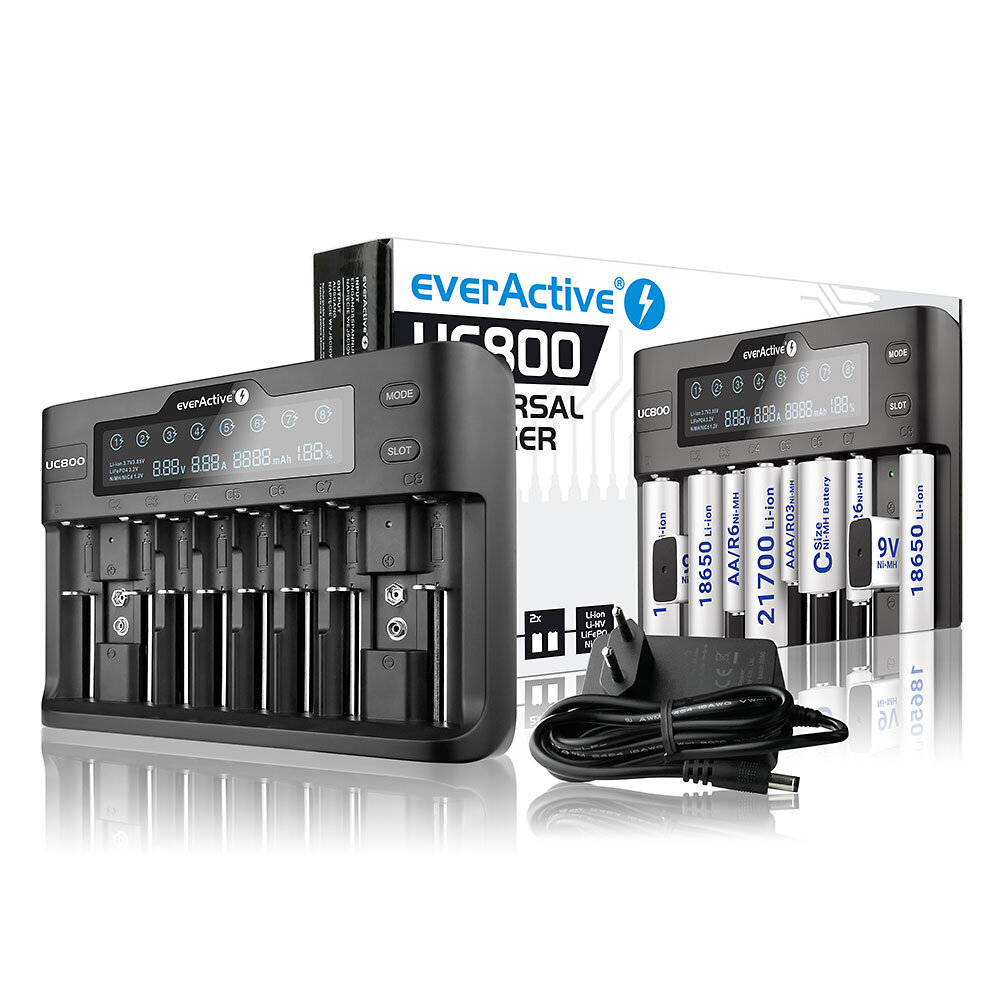

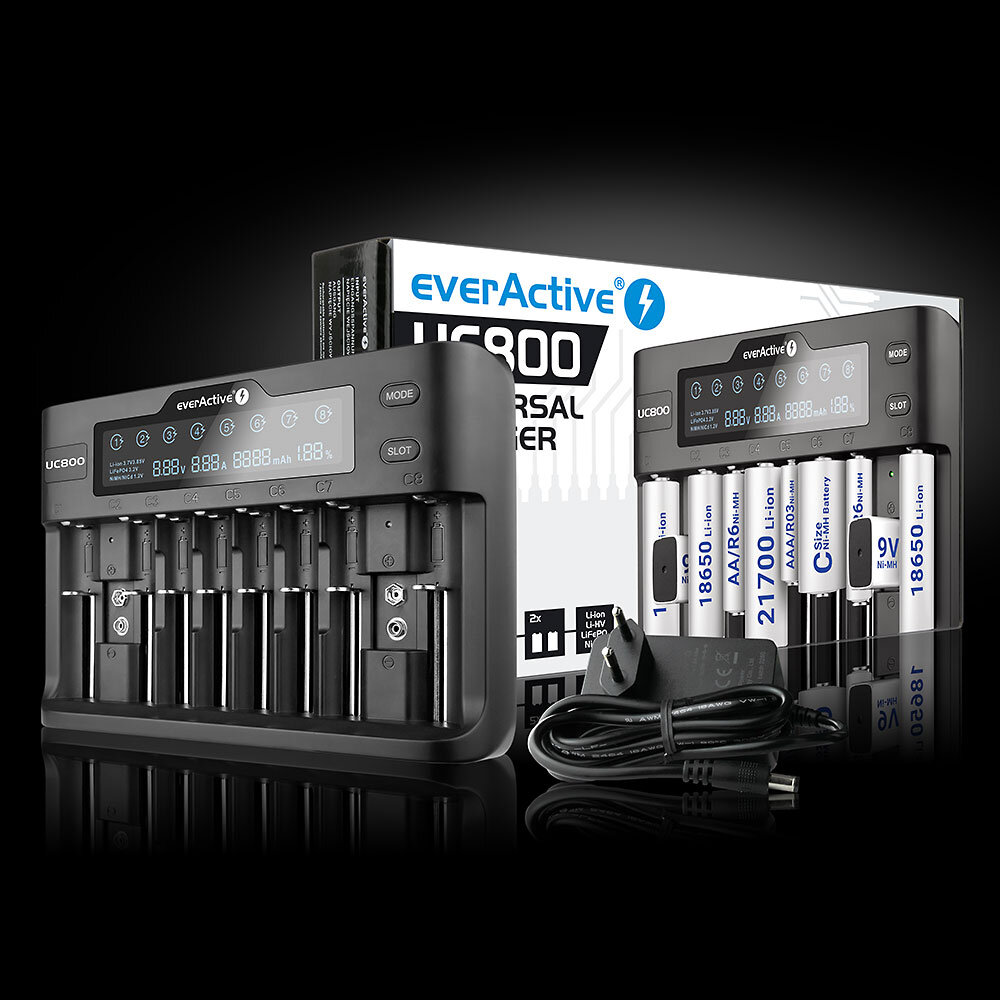

- UC-800 charger, 12V/3A AC adapter, user manual
- Li-ion batteries 3.6-3.7V, protected (with PCM/PCB)
- Li-ion batteries 3.6-3.7V, unprotected
- Li-ion batteries 3.8-3.85V, protected (with PCM/PCB)
- Li-ion batteries 3.8-3.85V, unprotected
- LiFePO4 Batteries
- Ni-MH batteries
- 6F22/9V batteries
- 12 V DC / 3000 mA
- Processor-controlled CC/CV for Li-ion/Li-FePO4
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
- Charge
- Adjustable - 200mA - 2000mA per channel/slot for Li-ion / Li-FePO4(2000mA tylko dla kanałów 1 i 8)
- 200mA - 1000mA per channel / slot for Ni-MH
- 60mA - for 9V batteries
- Li-ion 4.2V ±0,05V
- Li-FePO4 3.65V ±0.05V
- Ni-MH ~1.45V-1.55V dV/PVD
- Li-HV 4.35V ±0,05V
- Before reloading
- Before over-discharging cells
- Against overload / short circuit
- Overload
- Thermal - before overheating of batteries
- Before reverse polarity of cells
- UC-800 charger, 12V/3A AC adapter, user manual
